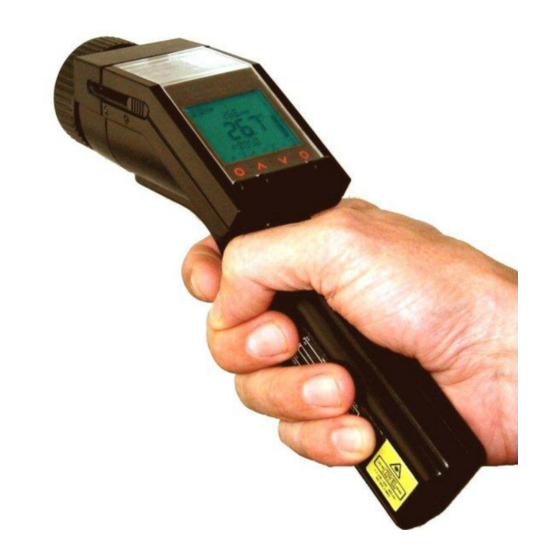

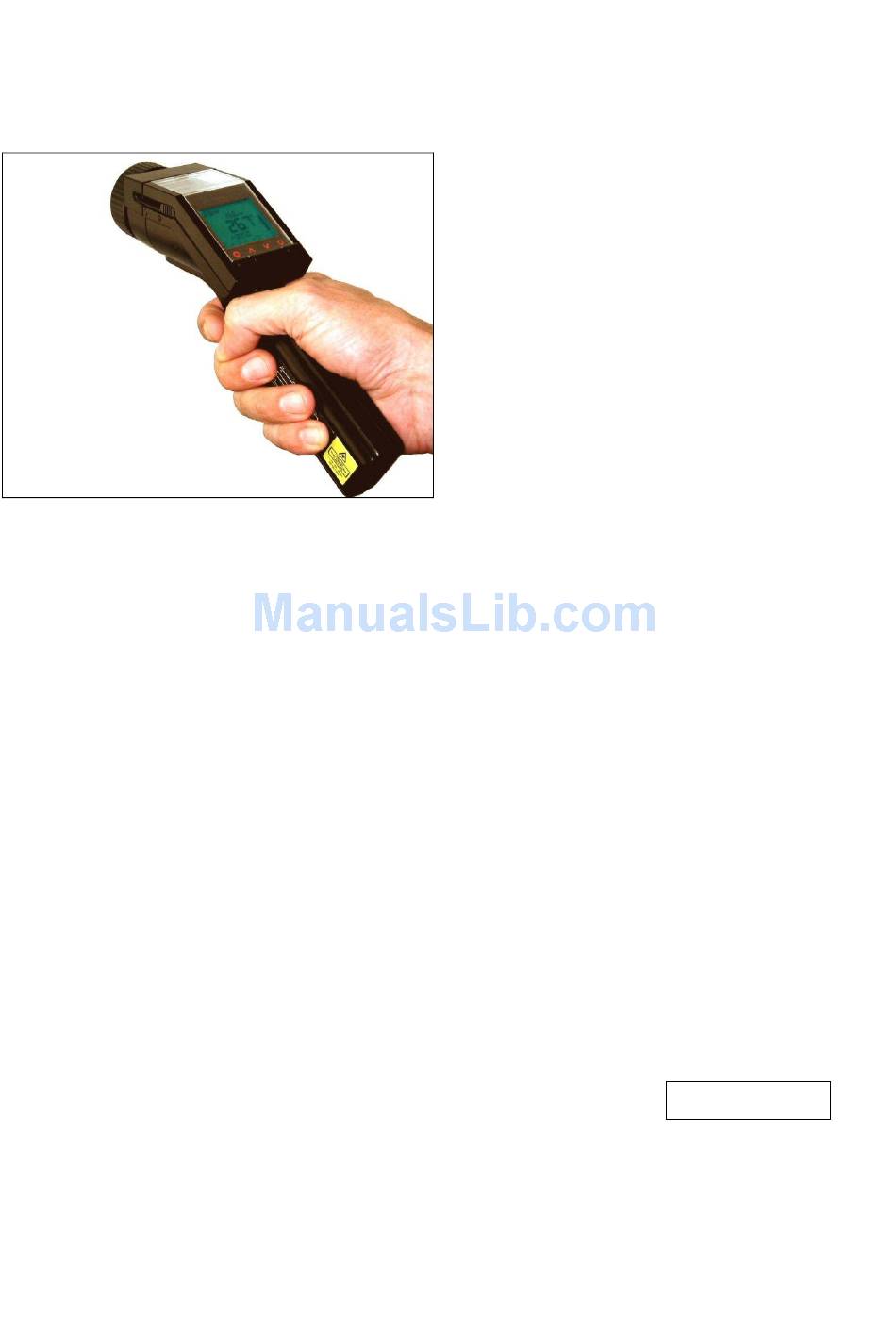

- Page 1 SEFRAM 9885 ¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯ Operating manual M9885A00...
- Page 3 Orientation Important information and notes Icons for easy finding of chapters Operating elements on the SEFRAM 9885 unit │ Buttons in the software [► Reference to other chapters] DJUSTABLE ALUES [Menu: Hint to menu items in the software] Readings on the unit display │...
- Page 4 SEFRAM 9885 expires if you open the product. The manufacturer offers a 3 month warranty for rechargeable batteries. The manufacturer is not liable for consequential damage. If a failure occurs during the warranty period the product will be replaced, calibrated or repaired without further charges. The freight costs will be paid by the sender.
-
Page 5: Table Of Contents
Factory Default Setting Setup Menu 2 Temperature Unit Troubleshooting Buzzer Maintenance Flip-Display Principle of Operation Ambient Temperature Compensation Emissivity Reset Appendix A – Emissivity Table MetaSEFRAM 9885 Appendix B – Emissivity Table Non MetaSEFRAM 9885 Data Logger Storing Data SEFRAM 9885... -
Page 6: Basic Operation
IR-temperature and unit (°C/ °F) Lower display: HOLD, emissivity, probe temperature, data location and comment Assignment of buttons: Mode I I , Mode II II , Up Λ and Down V Bar graph display Up- and Down button Mode buttons SEFRAM 9885... -
Page 7: Measurement Functions
The temperature of the object is shown in the display [2]. The SEFRAM 9885 can aSEFRAM 9885o be used in vertical position (measurement downwards). With this handling small objects like electronic SMD components can easily be aimed and measured. For this purpose please hold the unit as shown in the left figure. -
Page 8: Display Backlight
Recall (Last Value) The last measured value remains stored in the SEFRAM 9885 after switch off. To recall this value please press (in the switched off condition) the I - or II -button. The unit will be set into the HOLD mode. -
Page 9: Optics
Optics The SEFRAM 9885 has a switchable optics. The both possible operating modes are indicated as SF mode (Standard Focus) and CF mode (Close Focus). In the SF mode (standard operating mode) objects ≥ 16mm be measured. The measurement spot will be exactly marked with the patented crosshair laser, i.e. -
Page 10: Setup Menu 1
Setting of a temperature value (alarm setpoint). If the temperature reading is below this setpoint a visual display colour = blue + alarm symbol in info line and an acoustic signal (buzzer) will be generated: Setting range: -35...900°C Default setting: -35°C SEFRAM 9885... -
Page 11: Long-Term Measurement (Lock Mode)
The procedure is the same as described in the setup menu 1: Measurement mode TriggerS I S next menu item Temperature Unit With this function you can switch the temperature unit in the display between °C und °F. SEFRAM 9885... -
Page 12: Buzzer
V O Flip-Display The SEFRAM 9885 has a so called Flip display (turn around display). As the unit can be used in horizontal and in vertical position (preferably in combination with the CF mode), the ability to switch allows a comfortable operation in both positions. -
Page 13: Ambient Temperature Compensation
Setting range: -35...900°C Default setting: deactivated An activation of this function on the SEFRAM 9885 for the first time is only possible with the supplied software [► Device Setup]. 2. Menu II 3x I Tamb Λ INCREASE ALUE ... -
Page 14: Data Logger
Data Logger The SEFRAM 9885 has an internal data logger with a maximum capacity of 100 measurement protocoSEFRAM 9885. Every protocol contains the following values: Position number (P 00...P 99) MAX-, MIN-, AVG- and DIF-value Comment Emissivity IR temperature Probe temperature (if connected) Storing Data To store any data the unit must be in the HOLD mode. -
Page 15: Data Logger Recall
If no button is pressed, the unit switches off after approx. 30 s. Thermocouple Probe The SEFRAM 9885 has an input for thermocouple probes. You will find the connection at the end of the handle [► User Interface]. You can connect the supplied insertion probe as well as any other t /c probe type K. -
Page 16: Software Optrisconnect
The supplied connection cable is not a standard USB cable! As long as the SEFRAM 9885 is connected to your computer it will be powered via the USB interface. In this case operation is aSEFRAM 9885o possible if no batteries are inside the unit. At digital communication the unit display shows the HOLD –mode but the unit is measuring continuously and is sending... -
Page 17: Data Logger Functions
If you cannot establish a communication in spite of correct connection between SEFRAM 9885 and computer please choose the correct COM port under Menu: Setup\ Interface. If the USB adapter cable is connected this port is marked [Infrared Thermometer Adapter]:... -
Page 18: Time Stamp
Time Stamp If you store data inside your SEFRAM 9885 for the first time (after insertion of the batteries), an internal timer will be started automatically. After connection to a computer the timer will be synchronized with the computer time. After this every logger... -
Page 19: Diagram Functions
This option enables an optimum display of the temperature graph. A manual scaling can be done at any time using the control elements of the temperature axis. Activation of the desired option: Control elements (temperature axis) or [Menu: Diagram]. SEFRAM 9885... - Page 20 Pen Width Color of the temperature graph and digital displays Color Selection which signaSEFRAM 9885 should be displayed as digital display Digital Time frame on the x-axis, which should be displayed at beginning of a measurement Initial time SEFRAM 9885...
-
Page 21: Device Setup
Flip mode The first activation of Ext. Ambient Temp. will initiate this feature inside the SEFRAM 9885 unit. From this time the feature will appear in the Setup Menu 2 on the unit, also if deactivated again in the device setup [►... -
Page 22: Device Information
Data Logger: 100 measurement protocoSEFRAM 9885 with time stamps, 4 digit location names (editable) Software: SEFRAM 9885connect oscilloscope software, 20 readings per second Power supply: 2xAA (Mignon Alkaline) batteries or via USB cable (if connected to a PC) Battery life time:... -
Page 23: Factory Default Setting
SEFRAM 9885... -
Page 24: Maintenance
In case of problems or questions which may arise when you use the SEFRAM 9885, please contact our service department. The customer service staff will support you with questions concerning the optimization of the work with the infrared thermometer, calibration procedures or with repairs. -
Page 25: Principle Of Operation
A low emissivity (reflective surfaces) carries the risk of inaccurate measuring results by interfering infrared radiation emitted by background objects (flames, heating systems, chamott es). To minimize measuring errors in such cases, the handling should be performed very carefully and the unit should be protected against reflecting radiation sources. SEFRAM 9885... - Page 26 temperature measuring angle geometry of the surface thickness of the material constitution of the surface (polished, oxidized, rough, sandblast) spectral range of the measurement transmissivity (e.g. with thin films) SEFRAM 9885...
- Page 27 Glass 0,85 Grit 0,95 Gypsum 0,8-0,95 0,98 Limestone 0,98 Paint non alkaline 0,9-0,95 Paper any color 0,95 Plastic > 50 µm non transparent 0,95 Rubber 0,95 Sand Snow Soil 0,9-0,98 Textiles 0,95 Water 0,93 Wood natural 0,9-0,95 Notes SEFRAM 9885...
