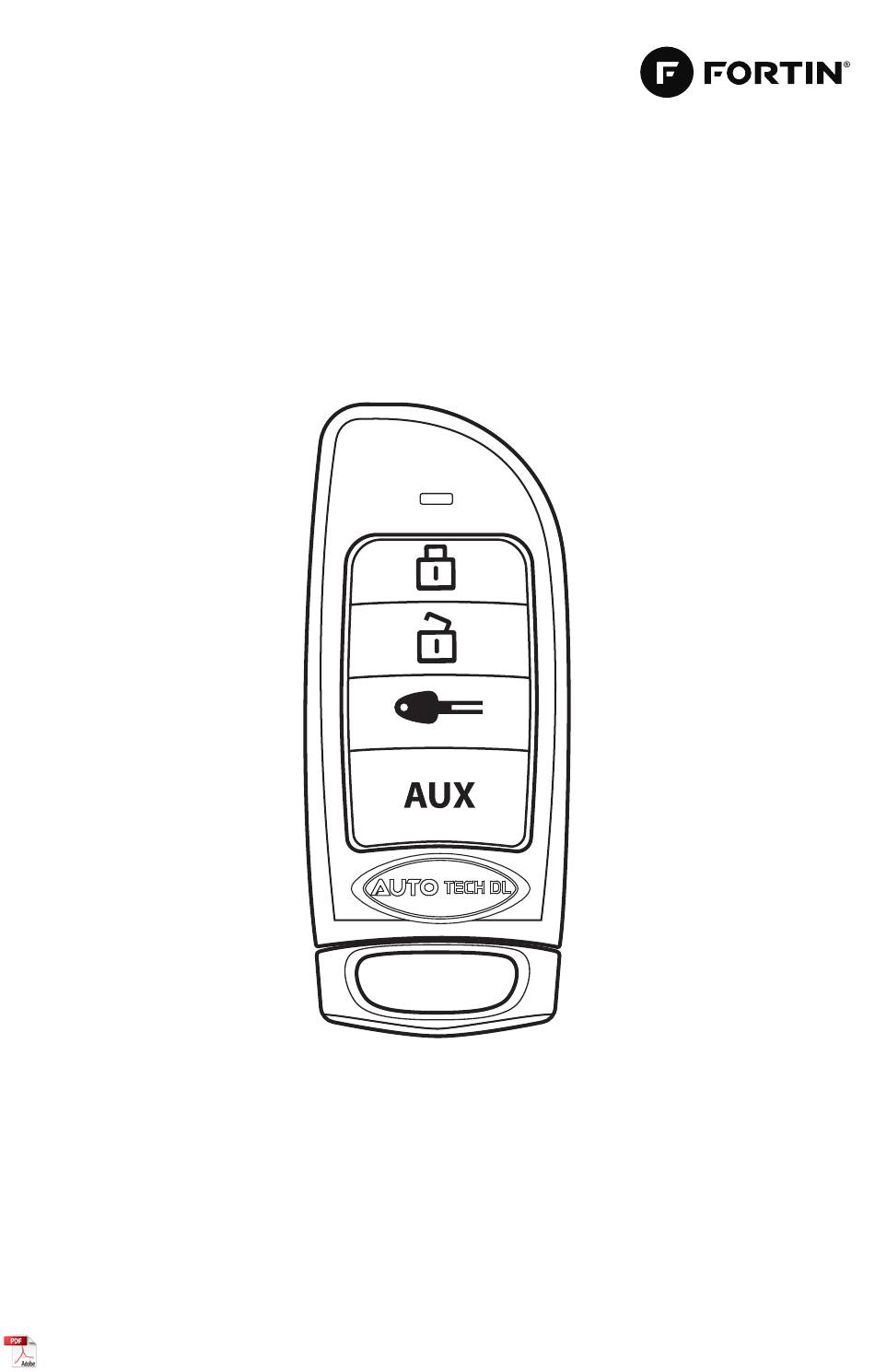

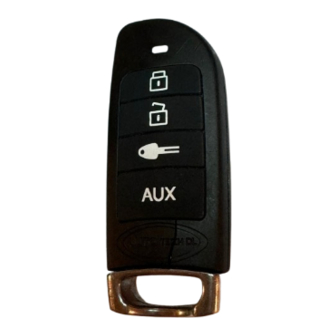

- Page 1 SECURITY SYSTEM REMOTE CAR STARTER 1004 DL1004 : 1-WAY REMOTES: FCC ID : 2ACKU-DL1004 / IC : 12084A-DL1004 ANT-FMH-2W : ANTENNA : FCC ID : 2ACKU-A2W01FM / IC : 12084A-A2W01FM MANUFACTURE: FORTIN MADE IN CANADA / DOC.: 68391 / REV : B20210712 / © 2017 ALL RIGHTS RESERVED...
- Page 2 TABLE OF CONTENTS...
-
Page 3: Table Of Contents
INTRODUCTION ..................... 5 NOTE ..........................5 INDUSTRY CANADA USER NOTICE ..................5 US GOVERNMENT REGULATIONS ..................5 BASIC FUNCTIONS ....................7 REMOTE-STARTING ....................8 REMOTE-STARTING THE VEHICLE ..................8 ACCESSORY PRESET ......................8 READY MODE (MANUAL TRANSMISSION ONLY) ..............9 DRIVING OFF ........................ - Page 4 Page 4 / 23 CAUTION WARNING IT IS THE RESPONSIBILITY OF THE REMOTE CAR STARTER OPERATOR TO : • ensure that the vehicle is parked in a safe and responsible manner. • ensure that the vehicle is not remotely started indoors (garage, underground parking). •...
-
Page 5: Introduction
Page 5 / 23 INTRODUCTION Thank you for purchasing this Remote-Starter/Alarm system. This is a state of the art Remote- Starter/Security-System including numerous new comfort and security features, and all of the elementary features generally offered with most basic Remote-Starter systems.There are certain features listed in this manual that may not be available for your system. - Page 6 Page 6 / 23 FULL FUNCTIONS TIME BUTTON COMMAND DESCRIPTION PRESSED Locks all doors, arms the anti-theft system and LOCK 1 SECOND activates the Alarm PRESS (if available). Press LOCK for 3 seconds PANIC 3 SECONDS to activate the Panic. PRESS Unlocks all doors, disarms the anti-theft system and UNLOCK...
-
Page 7: Basic Functions
Page 7 / 23 BASIC FUNCTIONS QUICK LONG PUSH PUSH 0.5 SEC. 3 SEC. PANIC LOCK UNLOCK START STOP TRUNK The remote LED flashes BLUE when a button is pressed. The remote LED flashes BLUE when the remote is transmitting the informations. For car command confirmation, see Introduction, page 5. -
Page 8: Remote-Starting
Page 8 / 23 REMOTE-STARTING REMOTE-STARTING THE VEHICLE This Remote-Starter supports both manual and automatic transmission vehicles. For manual transmission vehicles see the Ready Mode section. To remote-start the vehicle press the START button for approximate- STEP 1 ly 3 seconds. The parking lights will turn on to indicate a response to the Remote- STEP 2 Start signal. -
Page 9: Ready Mode (Manual Transmission Only)
Page 9 / 23 READY MODE (MANUAL TRANSMISSION ONLY) Four activation methods are possible, please consult the salesman or installer to determine which of these modes applies to your vehicle. There are always safety concerns for a manual transmis- sion vehicle to accidentally start while in gear, Ready Mode alleviates these concerns. The driver must enable Ready Mode in order to Remote-Start the vehicle at a later time. - Page 10 Page 10 / 23 CHOICE 2 - This method must be programmed by the installer during installation. This method will activate the remote car starter sequence: ACTIVATION : STEP 1 The vehicle must be running. Make sure that all doors are closed and the transmission is in the STEP 2 NEUTRAL position.
- Page 11 Page 11 / 23 CHOICE 3 - This method must be programmed by the installer during installation. This method will activate the remote car starter sequence: ACTIVATION : STEP 1 The vehicle must be running. Make sure that all doors are closed and that the transmission is in STEP 2 the NEUTRAL position.
- Page 12 Page 12 / 23 CHOICE 4 - This method must be programmed by the installer during installation. This method will activate the remote car starter sequence: ACTIVATION : STEP 1 The vehicle must be running. Make sure that all doors are closed and that the transmission is in STEP 2 the NEUTRAL position.
-
Page 13: Driving Off
Page 13 / 23 DRIVING OFF When the vehicle is running with the Remote-Starter, enter the vehicle and proceed with the following steps : Insert the key and turn it to the ignition (ON / RUN) position. WARNING : DO NOT TURN THE KEY TO THE START POSITION WHEN STEP 1 THE ENGINE IS RUNNING. -
Page 14: Idle Mode (Manual Transmission)
Page 14 / 23 IDLE MODE (MANUAL TRANSMISSION) Idle mode is activated in much the same way Ready Mode is activated, except for Step 1. To activate Idle Mode (manual transmission) proceed with the following steps : IDLE MODE ACTIVATION : STEP 1 The vehicle must be running. -
Page 15: Turbo Mode (Automatic Transmission)
Page 15 / 23 TURBO MODE (AUTOMATIC TRANSMISSION) Turbo Mode (if available) is similar to Idle Mode but is used to cool down the turbo-charger once the driver leaves the vehicle. The Remote-Starter will continue run the vehicle for 2 minutes allowing the turbo-charger to cool down. -
Page 16: Valet Mode (By Default)
Page 16 / 23 VALET MODE (BY DEFAULT) With EVO-ONE ONLY. To activate and deactivate Valet Mode using the antenna proceed with the fol- lowing steps : Insert the key and turn it to the ignition (ON/RUN) position. The STEP 1 vehicle does not need to be started. -
Page 17: Cold Start Timer Mode
Page 17 / 23 COLD START TIMER MODE Mode will remote-start the vehicle when the tempeture is below -5 C / 23 F every 1.5 or 3 hours and run for 3, 5, 7 or 15 minutes (6, 14 or 30 for diesel engines), depending on programming. The remote-starter will repeat this sequence for up to a maximum of 24 hours. -
Page 18: Remote Button Enable And Disable
Page 18 / 23 REMOTE BUTTON ENABLE AND DISABLE To disable all the buttons on the remote : simulta- neously press and hold the LOCK and FUNCTION LOCK THE REMOTE button. buttons until the RED LED comes on. The RED LED will come on whenever a button is pressed when the remote is LOCKED. -
Page 19: Active Or Passive Arming
Page 19 / 23 To LOCK the doors and ARM the Alarm : The parking light will flash once and the LED will turn ON to confirm the signal. The Starter-Kill will activate preventing the vehicle from being started with the key. If LOCK is pressed again (consecu- Press the LOCK button tively) -
Page 20: Alarm
Page 20 / 23 ALARM AUDIBLE CONFIRMATION By default the Alarm will not send an audible confirmation (horn/siren) after the first signal has been received from the remote transmitter(s). SILENT : Press the LOCK or UNLOCK button ONCE and the park lights will flash, but the horn/siren will NOT confirm the signal. -
Page 21: Vehicle Locator / Panic Mode
Page 21 / 23 VEHICLE LOCATOR / PANIC MODE To locate your vehicle in a busy parking lot press the LOCK button for 3 seconds to sound the horn / siren (if available) and flash the parking lights. Press unlock to cancel this Mode. Note : If an Alarm pre-triggered zone is in memory, this Mode will NOT clear this zone from memory. -
Page 22: Failed Remote-Start
Page 22 / 23 FAILED REMOTE-START There are several different installation factors and devices that must work together in order for your vehicle to Remote-Start properly. In some cases a failed Remote Start is not the fault of the Remote-Starter itself. Here are some things to consider when the Remote-Starter fails : •... -
Page 23: Remote Start / Alarm Diagnostics
Page 23 / 23 REMOTE START / ALARM DIAGNOSTICS REMOTE STARTER DIAGNOSTICS* Parking Light flashes (before starting) : Ready mode disabled Valet mode activated (The LED is on) Hood open Parking Light flashes (after Shutdown) : Normal stop (Brake, Park Brake) Runtime expired or shut down by transmitter No tachometer signal Hood open...
