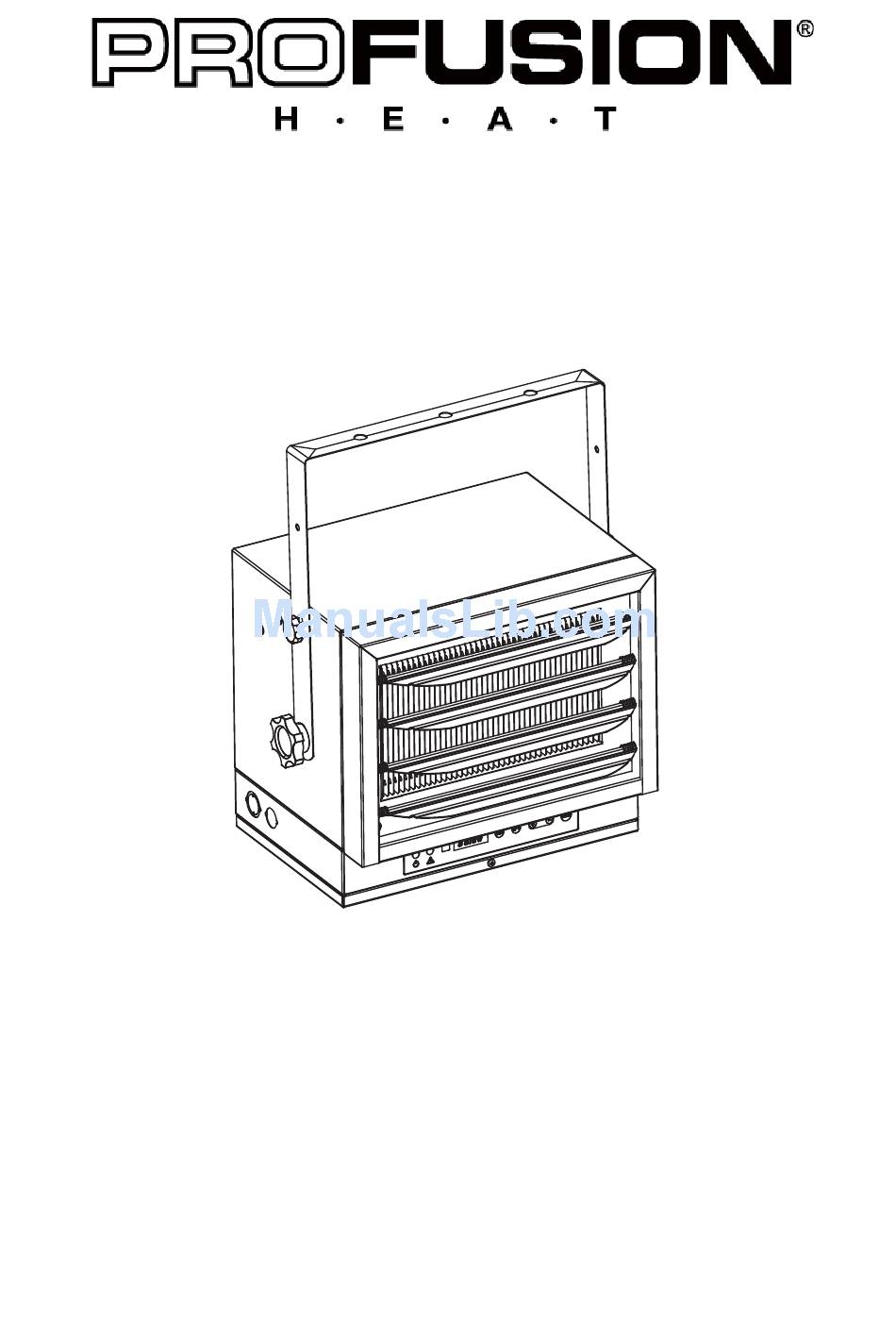

INSTRUCTION MANUAL
Heavy Electric Utility Heater
Model： HA24-50E
HA24-75E
Figure 1
PET OWNERS WARNING:
The health of some small pets
including birds are extremely sensitive to the fumes produced during
the first-time use of many appliances. These fumes are not harmful to
humans but we recommended that you do not use your heater around
birds and small pets during its initial use until the manufacturing
corrosion coatings burn off.
Technical Support: 1-866-206-0888
Service email: info@mecanair.net
1
