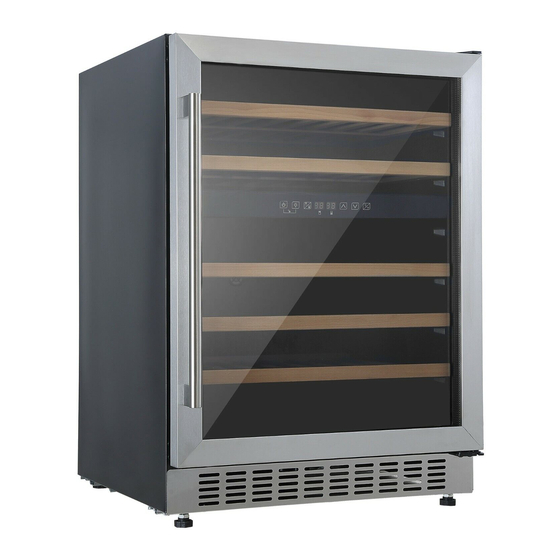

Wine Cooler
Instruction Manual
CWC605SS & CWC605BK
NOTE
: Thank you for ordering your Cookology Wine Cooler.
Please read this user manual before using the appliance and keep
the instructions for future reference.
IMPORTANT:
After Delivery, allow 24 hours before plugging the
wine cooler in to allow the gases to settle.
Content
Advertisement
Related Manuals for Cookology CWC605SS
Summary of Contents for Cookology CWC605SS
- Page 1 Wine Cooler Instruction Manual CWC605SS & CWC605BK NOTE : Thank you for ordering your Cookology Wine Cooler. Please read this user manual before using the appliance and keep the instructions for future reference. IMPORTANT: After Delivery, allow 24 hours before plugging the wine cooler in to allow the gases to settle.
-
Page 2: Table Of Contents
Safety instructions & warnings………………………………..…………………………….1-3 Description of the appliance………………………………..………………………………..3-5 Installation & operation………………………………..……………………………………….5-9 Troubleshooting………………………………..…………………………………………………..9 Maintenance and cleaning………………………………..…………………………………..10 Technical parameters………………………………..…………………………………………..11... -
Page 3: Safety Instructions & Warnings
Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department. - Page 4 ●Do not allow child hang on the door to Do not damage the power cord play in case of falling of the appliance. ●Do not disconnect the appliance by ●Do not allow child reach into pulling power cord rather than pulling compressor compartment or touch the plug.
-
Page 5: Description Of The Appliance
is not in contact with or drip onto other suitable for the freezing of fresh food. – If the refrigerating appliance is left food. ● empty for long periods, switch off, – Two-star frozen-food compartments defrost, clean, dry, and leave the door are suitable for storing pre-frozen food, open to prevent mould developing storing or making ice-cream and... - Page 6 The handle is delivered in a separated package with screws together inside the carton. ① Reveal two small holes on the door frame from inner side by pulling out a bit the door seal ② Aim the handle to the holes and insert the screws from inside ③...
-
Page 7: Installation & Operation
from the top right hinge④, and take off the lower hinge plate③ from the door axis hole[Figure 2]. Screw top right hinge④& right lower hinge② off from the cabinet⑥and keep them in the polybag for needs if you want to change back left opening door in the future.[Figure 3] ... - Page 8 Wine bottles could be stored when you feel cooling inside after the appliance operates around 1 hour. Start operation 1. Cleaning the compartment Before power on, clean inside of the appliance and check the drainage pipe in good connection.（For details, please refer to the “Maintenance and cleaning”） 2.
- Page 9 Control panel All keys would be invalid in lock mode. Please unlock first. ON/OFF 1. Keep pressing the key 3 seconds, power down, goes to stand-by mode. 2. Keep pressing the key again 3 seconds to return back to normal working. Light Press the key, turn on or turn off the LED lights inside.
- Page 10 Fahrenheit/Celsius display interchange Switch temperature display between Fahrenheit and Celsius by pressing the key. Attention 1. For both upper and lower zone, the cooling temperature could be set from 5- 22℃. 2. Alarm sound: when the system malfunction occur and alarm sound, press any key on the control panel to cancel the alarm sound.
-
Page 11: Troubleshooting
Open the door straight enough before pulling out shelves. If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation. Below table is the recommended temperature for wine storing & drinking: Red Wine 15-18℃... -
Page 12: Maintenance And Cleaning
Maintenance and cleaning Cleaning ➢ Disconnect the appliance before cleaning. ➢ Clean the appliance with soft cloth or sponge by water. ➢ Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. ➢ Do not flush the compartment of the appliance. The below items will damage the surface of wine cooler: Power cut Most power cuts could be resolved within a short time. -
Page 13: Technical Parameters
Technical parameters Product model CWC605SS & CWC605BK Voltage/frequency 220-240V/50Hz Refrigerant/weight R600a/35g Effective volume 129 L Loading capacity 46 bottles Net weight 43kg Unit dimension 595×570×825-870 mm (WxDxH) Packing dimension 660×625×880 mm (WxDxH) Remarks： 1. The Net weight includes shelves and the Unit dimension is without handle on the door.
