Instruction Manual
NOTE
: Thank you for ordering your Cookology Wine Cooler.
Please read this user manual before using the appliance and keep
the instructions for future reference.
IMPORTANT:
wine cooler in to allow the gases to settle.

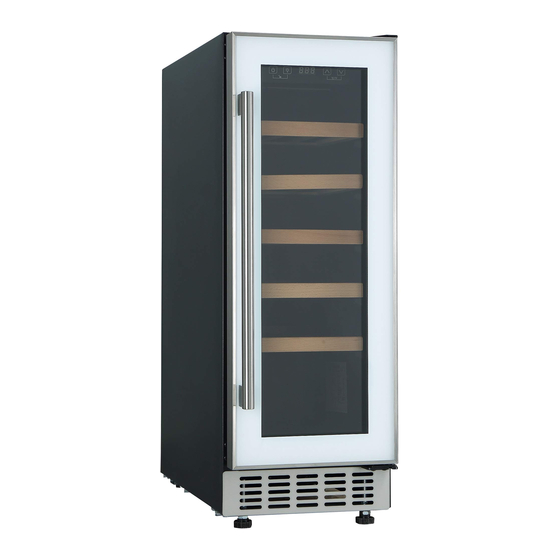

Wine Cooler
CWC300WH
After Delivery, allow 24 hours before plugging the
Content
JC-201

Advertisement

loading
Need help?

Need help?

Do you have a question about the CWC300WH and is the answer not in the manual?

Questions and answers

Summary of Contents for Cookology CWC300WH

  • Page 1 Wine Cooler JC-201 Instruction Manual CWC300WH NOTE : Thank you for ordering your Cookology Wine Cooler. Please read this user manual before using the appliance and keep the instructions for future reference. IMPORTANT: After Delivery, allow 24 hours before plugging the wine cooler in to allow the gases to settle.
  • Page 2: Table Of Contents

    Safety instructions & warnings………………………………..…………………………….1-2 Installation………………………………..……………………………………………………………3 Description of the appliance………………………………..………………………………..4-5 Operation………………………………..…………………………………………………………….6-8 Troubleshooting………………………………..…………………………………………………..8 Maintenance and cleaning………………………………..……………………………………9 Technical parameters………………………………..…………………………………………..10 Environmental protection………………………………………………………………………10...
  • Page 3: Safety Instructions & Warnings

    Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department.
  • Page 4 Child Safety Unplug the appliance under certain conditions ●Do not allow child play inside the ●Unplug the appliance before cleaning & appliance in case of entrapment. maintenance. ●Do not allow child hang on the door to ●Unplug the appliance when power cut play in case of falling of the appliance.
  • Page 5: Installation

    Installation Position Do not lean the appliance over 45°when moving it to position. The appliance must be put on flat,firm & dry floor or similar noncombustible pad; do not use the package foam pad. 酒柜结构及安装示意图 Do not put the appliance in the wet place. Do not use the appliance in the frozen place.
  • Page 6: Description Of The Appliance

    Description of the appliance Accessories& name 11. Upper hinge 1. Housing 2. Control panel 10. Door seal 3.Shelf 9. Handle 4. Cover board 5. Grill 8. Door 6. Adjustable foot 7. Lower hinge Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration.All photos in this manual are for reference.
  • Page 7 Reversing the door Our wine cooler is delivered with the door opening from left to right. To reverse the opening direction:  Open the door at 90 degrees and keep it steady.  Unscrew the two screws①from the right lower hinge②[Figure 1]. ...
  • Page 8: Operation

    Operation Start operation 1. Cleaning the compartment Before power on, clean inside of the appliance and check the drainage pipe in good connection.(For details, please refer to the “Maintenance and cleaning”) 2. Put the appliance still Before power on, level the appliance on the firm & dry floor for at least 30 minutes. 3.
  • Page 9 Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1℃. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside. Child Lock(Combination key)...
  • Page 10: Troubleshooting

     Loading capacity will vary in terms of different way of bottle arrangement or different bottle sizes.  Each shelf is designed to put on 1 or 2 layers of wine bottles. More than 2 layers of bottle arrangement on one shelf are not recommended. ...
  • Page 11: Maintenance And Cleaning

    cause condensate. ⚫ Check the power supply first. The light is not working? ⚫ Call the retailer’s after-sale service if the light is broken. Maintenance and cleaning Cleaning ➢ Disconnect the appliance before cleaning. ➢ Clean the appliance with soft cloth or sponge by water. ➢...
  • Page 12: Technical Parameters

    Technical parameters Product model CWC300WH Voltage/frequency 220-240V~/50Hz Refrigerant/weight R600a/18g Effective volume 56 L Loading capacity 20 bottles Net weight 26.5kg Unit dimension 295×570×825-870mm (WxDxH) Packing dimension 329x625x865 mm (WxDxH) Remarks: 1. The Net weight includes shelves and the Unit dimension is without handle on the door.
