Wine Cooler
Instruction Manual

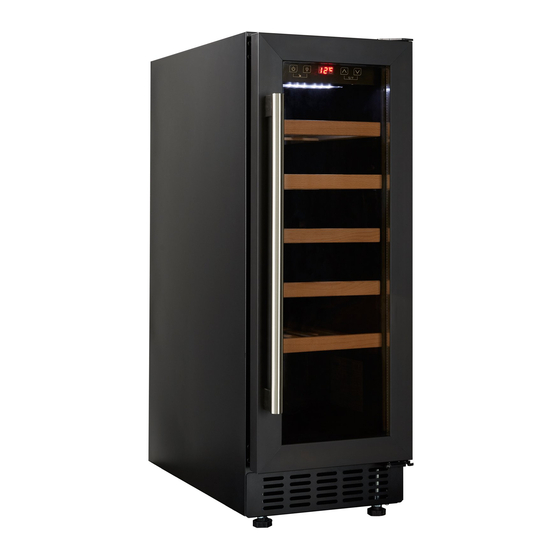

CWC300SS & CWC300BK
NOTE
: Thank you for ordering your Cookology Wine Cooler.
Please read this user manual before using the appliance and keep
the instructions for future reference.
IMPORTANT:
After Delivery, allow 24 hours before plugging the
wine cooler in to allow the gases to settle.
Content
Advertisement
Related Manuals for Cookology CWC300BK
Summary of Contents for Cookology CWC300BK
- Page 1 Wine Cooler Instruction Manual CWC300SS & CWC300BK NOTE : Thank you for ordering your Cookology Wine Cooler. Please read this user manual before using the appliance and keep the instructions for future reference. IMPORTANT: After Delivery, allow 24 hours before plugging the wine cooler in to allow the gases to settle.
-
Page 2: Table Of Contents
Safety instructions & warnings………………………………..…………………………….1-2 Description of the appliance………………………………..………………………………..3-4 Installation & operation………………………………..……………………………………….5-8 Troubleshooting………………………………..…………………………………………………..9 Maintenance and cleaning………………………………..…………………………………..10 Technical parameters………………………………..…………………………………………..11... -
Page 3: Safety Instructions & Warnings
Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department. - Page 4 ●Do not allow child hang on the door to Disposal of the appliacne play in case of falling of the appliance. ●Please according to local regulations ●Do not allow child reach into regarding disposal of the appliance for compressor compartment or touch its flammable refrigerant and blowing metal components at rear of the gas.
-
Page 5: Description Of The Appliance
Description of the appliance Accessories & name 1. Housing 11. Hinge 2. Shelf 10. Door seal 3. Display panel 4. Cover board 9. Handle 5. Grill 8. Door 7. Lower hinge 6. Adjustable foot Note: Shelves, door frame, handle and other accessories could be different according to different models and configuration. - Page 6 Installing the handle and reversing the door of wine cooler 1. Install handle to the door frame of the appliance. The handle is delivered in a separated package with screws together inside the appliance. ① Reveal two small holes on the door frame from inner side by pulling out a bit the door seal ②...
-
Page 7: Installation & Operation
Screw top right hinge④& right lower hinge② off from the cabinet⑥and keep them in the polybag for needs if you want to change back left opening door in the future.[Figure 3] Install the top left hinge⑦& left lower hinge⑧ to the left side of the cabinet.(⑦&⑧... - Page 8 The appliance is designed to either build under the counter or stand alone on the floor. Demonstration for building under the counter: Wine bottles could be stored when you feel cooling inside after the appliance operates around 1 hour. Start operation 1.
- Page 9 Control panel All keys would be invalid in lock mode. Please unlock first. ON/OFF 1. Keep pressing the key 3 seconds, power down, goes to stand-by mode. 2. Keep pressing the key again 3 seconds to return back to normal working. Light Press the key, turn on or turn off the LED lights inside.
- Page 10 Attention 1. The cooling temperature could be set from 5-20℃. 2. Alarm sound: when the system malfunction occur and alarm sound, press any key on the control panel to cancel the alarm sound. 3. Temperature sensor failure: When the temperature sensor failures occur, error code displays. E1 for open circuit;...
-
Page 11: Troubleshooting
If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully, and open the door for ventilation. Below table is the recommended temperature for wine storing & drinking: Red Wine 15-18℃... -
Page 12: Maintenance And Cleaning
Maintenance and cleaning Cleaning ➢ Disconnect the appliance before cleaning. ➢ Clean the appliance with soft cloth or sponge by water. ➢ Do not use organic solvents, alkaline detergent, boiling water, washing powder or acid liquid etc. ➢ Do not flush the compartment of the appliance. The below items will damage the surface of wine cooler: Power cut Most power cuts could be resolved within a short time. -
Page 13: Technical Parameters
Technical parameters Product model CWC300SS & CWC300BK Voltage/frequency 220-240V/50Hz Refrigerant/weight R600a/18g Effective volume 56 L Loading capacity 20 bottles Net weight 29kg Unit dimension 295×570×825-870 mm (WxDxH) Packing dimension 329×625×865 mm (WxDxH) Remarks： 1. The Net weight includes shelves and the Unit dimension is without handle on the door.
