Instruction Manual
CWC150WH
NOTE
: Thank you for ordering your Cookology Wine Cooler.
Please read this user manual before using the appliance and keep
the instructions for future reference.
IMPORTANT:
After Delivery, allow 24 hours before plugging the
wine cooler in to allow the gases to settle.
Content
Safety instructions & warnings........................................................................1-2
Advertisement
Related Manuals for Cookology CWC150WH
Summary of Contents for Cookology CWC150WH

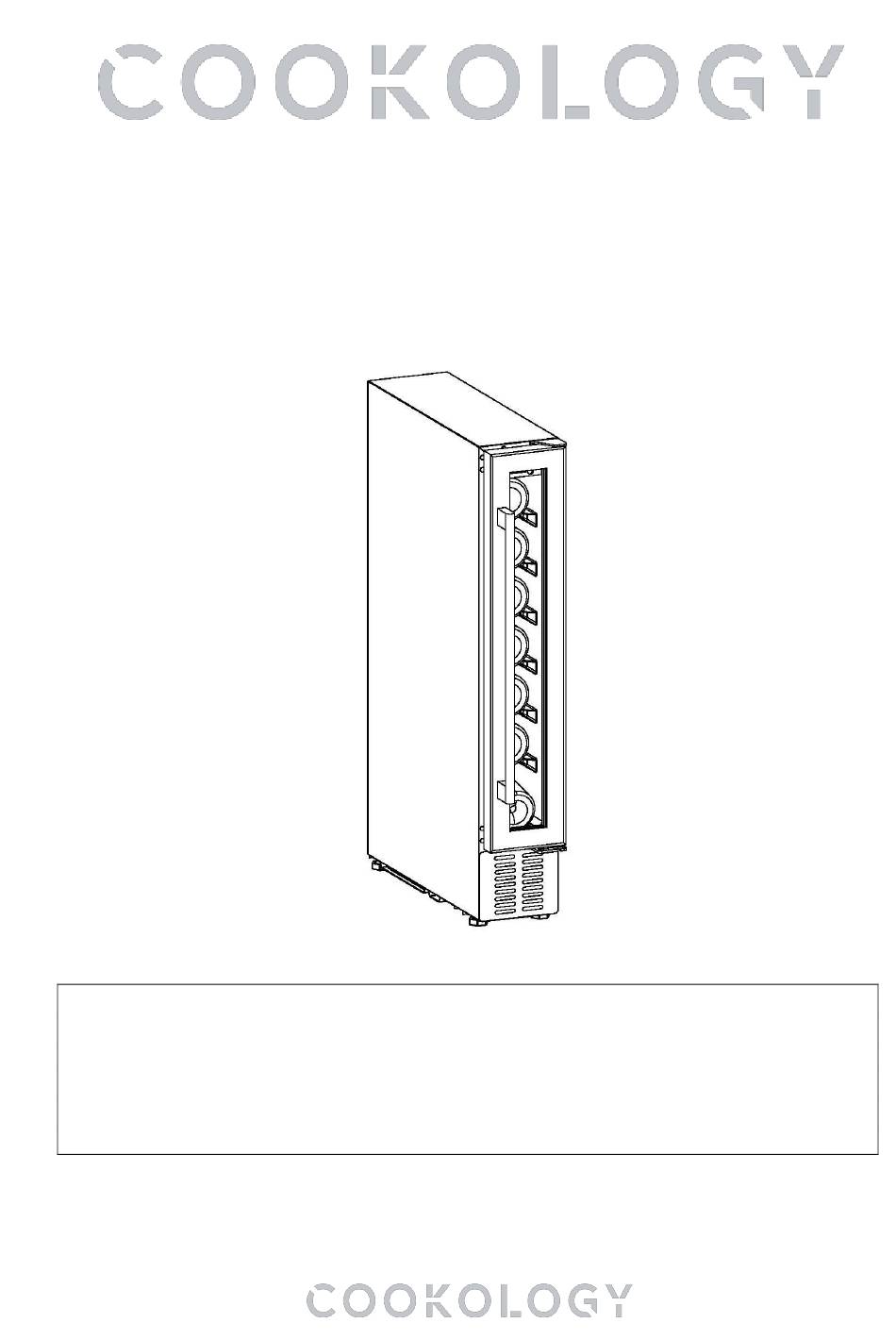

- Page 1 Wine Cooler Instruction Manual CWC150WH NOTE : Thank you for ordering your Cookology Wine Cooler. Please read this user manual before using the appliance and keep the instructions for future reference. IMPORTANT: After Delivery, allow 24 hours before plugging the wine cooler in to allow the gases to settle.
-
Page 2: Table Of Contents
Installation………………………………..……………………………………………………………3 Description of the appliance………………………………..………………………………..4-5 Operation………………………………..…………………………………………………………….6-8 Troubleshooting………………………………..…………………………………………………..8 Maintenance and cleaning………………………………..…………………………………..9 Technical parameters………………………………..…………………………………………..10 Environmental protection………………………………………………………………………10... - Page 3 Safety instructions & warnings Your safety is of the utmost importance to our company. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Technical Department.
- Page 4 Child Safety Unplug the appliance under certain conditions ●Do not allow child play inside the ●Unplug the appliance before cleaning & appliance in case of entrapment. maintenance. ●Do not allow child hang on the door to ●Unplug the appliance when power cut play in case of falling of the appliance.
-
Page 5: Installation
Installation Position Do not lean the appliance over 45°when moving it to position. The appliance must be put on flat,firm & dry floor or similar noncombustible pad; do not use the package foam pad. 酒柜结构及安装示意图 Do not put the appliance in the wet place. Do not use the appliance in the frozen place. -
Page 6: Description Of The Appliance
Wine bottles could be stored when you feel cooling inside after the appliance operates around 1 hour. Description of the appliance Accessories& name 10. Upper hinge 1. Control panel 2.Housing 9. Door seal 3. Cover board 8. Handle 7. Door 4. - Page 7 the screws. Reversing the door Our wine cooler is delivered with the door opening from left to right. To reverse the opening direction: Open the door at 90 degrees and keep it steady. Unscrew the two screws①from the right lower hinge②[Figure 1]. ...
-
Page 8: Operation
lower hinge plate③ slowly on the left lower hinge⑧ and keep the door steady. Screw up the left lower hinge with the plate. Door reversing is finished. Operation Start operation 1. Cleaning the compartment Before power on, clean inside of the appliance and check the drainage pipe in good connection.（For details, please refer to the “Maintenance and cleaning”）... - Page 9 ℃. Regular flash quit after 5 seconds detecting no press and new set temperature save. LED display return to show actual temperature inside. Down Press the key once, LED Display in regular flash showing current set temperature. Continue pressing to adjust set temperature, one press reduce 1℃. Regular flash quit after 5 seconds detecting no press and new set temperature save.
-
Page 10: Troubleshooting
If the wine cooler would have no load for a long time, it is recommended to power it off, clean it carefully,andopen the door for ventilation. Below table is the recommended temperature for wine storing & drinking: Red Wine 15-18℃... -
Page 11: Maintenance And Cleaning
⚫ Please adjust temperature setting. The appliance does not ⚫ Keep the appliance away from sunlight or heat. cool sufficiently? ⚫ Please do not open the door frequently. ⚫ A little bit plastic smell for newly-buy appliance is Unpleasant smells inside cabinet? normal and will disappear after a short time. -
Page 12: Technical Parameters
➢ Cut off the power supply and unplug the appliance. ➢ Remove all bottles from the appliance. ➢ When moving the appliance, do not lean the appliance over 45°. Technical parameters Product model CWC150WH Voltage/frequency 220-240V~/50Hz Refrigerant/weight R600a/12g Effective volume... - Page 13 This appliance is marked according to the European directive2012/19/EU on Waste electrical and Electronic Equipment(WEEE).By ensuring this product is disposed of correctly, you willhelp prevent potential negative consequences for the environmentand human health, which could otherwise be caused byinappropriate waste handling of this product.
