Summary of Contents for Megger PAT150-DE

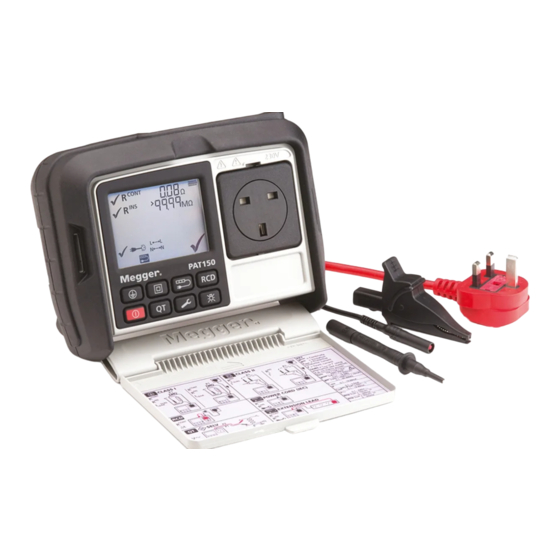

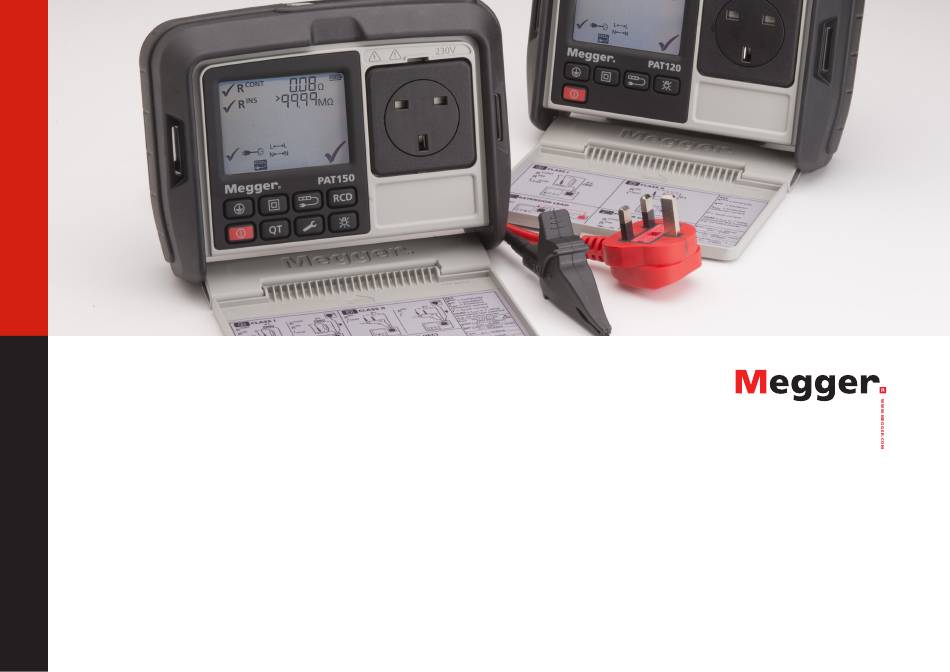

- Page 1 PAT100 Series Portable Appliance Tester User Guide...
-
Page 2: Table Of Contents
(PAT120, 150) Using Mains Voltage Leakage @ 230 V ac Power cord test (PAT120, 150) Extension lead test (PAT120, 150) Portable RCD test (PAT150) Fixed equipment testing Fail handling Quick test (PAT150 only) Quick test examples SELV measurement within quick test (QT) To exit quick test (QT) mode www.megger.com... -
Page 3: Unpacking The Carton
Unpack the carton contents carefully. There are important documents that you should read and keep for future reference. Please complete the pre-paid warranty card and return it to Megger Limited as soon as possible to help us reduce any delays in supporting you should you need assistance. -
Page 4: Safety Warnings
A yearly calibration is recommended with interim checks on measurement accuracy to ensure no equipment can be left in a hazardous live condition through incorrect readings ■ Only use a Megger approved PAT100 charger. Other chargers may present a fire risk ■... -
Page 5: Symbols Used On The Instrument
WEEE DIRECTIVE The crossed out wheeled bin symbol placed on Megger products is a reminder not to dispose of the product at the end of its life with general waste. Megger is registered in the UK as a Producer of Electrical and Electronic Equipment. The Registration No is WEE/HE0146QT For further information about disposal of the product consult your local Megger company or distributer or visit your local Megger website. -
Page 6: Symbols Used On The Connection Panel
Voltages and Mains socket. connection voltages Do NOT connect to 230 Vac Do NOT connect P1 and P3 sockets to hazardous live voltages Do NOT connect P1, P2 and P3 sockets to hazardous live voltages www.megger.com... -
Page 7: Instrument Layout
Power ON – Hold for >0.5s Backlight Power ON – Quick test Setup Backlight Hold for >0.5s Display information PAT120 Display information PAT150 Test results Test results Information/ Information/ Warnings Warnings Test Test information information Overall PASS/FAIL Overall PASS/FAIL www.megger.com... -
Page 8: Measurement Symbols
General warning - Appliance open Fixed installation equipment Fuse failed Repeat continuity test circuit or not switched on continuity test NOTE: The PAT100 instruments perform various pre-checks prior to testing to ensure the asset is not short-circuit and is switched on www.megger.com... -
Page 9: Instrument Buttons
RCD test button Connect the Instrument to the mains supply using the mains plug test lead (for mains powered leakage and RCD testing) Setup button – allows access to PASS limits, test times and lead null option Backlight button www.megger.com... -
Page 10: Carry Strap Fitting And Removal
Connect the P1 test lead to different conductive points on the equipment under test during the measurement Removing carry strap: Connect both the P1 and P2 test leads to the circuit to be measured Ensure equipment under test is switched ON www.megger.com... -
Page 11: Switching On / Off
PAT120 >0.5 s Switching OFF Manual OFF Auto OFF Unit switches after 3 minutes of >2 s inactivity (not adjustable) Backlight Aborting a test A test can be aborted at any time by pressing the Power (ESC) button www.megger.com... -
Page 12: Class I Test (Pat120, 150) Using Substitute Leakage @ 40 V Ac
PAT has detected an open circuit load. Ensure the appliance is switched on then press the Class I icon NOTE: The PAT100 instruments perform various pre-checks prior to testing to ensure the asset is not short-circuit and is switched on www.megger.com... - Page 13 ) during a test for up to 3 minutes. To Lock R CONT ) or R ) on: Press during the R CONT ) or R ) test Press key again to unlock test and proceed to next test NOTE This feature is available in group test and QT mode. www.megger.com...
-
Page 14: Class I Test (Pat120, 150) Using Mains Leakage @ 230 V Ac
See Measurement symbols table. An L-N fault could damage the PAT tester and should be investigated. To override an L-N warning, press the Class I button. NOTE 3 : Faulty equipment may cause an RCD to trip during a Touch leakage test www.megger.com... -
Page 15: Class Ii Test (Pat120, 150) Using Substitute Leakage @ 40 V Ac
Class II Pass conductive parts NOTE If the contact symbol appears, the appliance needs to be switched ON NOTE: The PAT100 instruments perform various pre-checks prior to testing to ensure the asset is not short-circuit and is switched on www.megger.com... -
Page 16: Class Ii Test (Pat120, 150) Using Mains Voltage Leakage @ 230 V Ac
High touch leakage measurement on faulty equipment can trip the supply RCD Warning : High inertia appliances (eg angle grinders) may present a hazard whilst running. It is recommended that where a hazard is likely, the battery powered "Substitute leakage" test is used, which will not operate the appliance. www.megger.com... -
Page 17: Power Cord Test (Pat120, 150)
Insulation test @ 250 V >2 s NOTE For power cords longer than 5m the test can be re-run with a 1.0W pass limit by pressing the test button with 5 seconds of the continuity test failing – refer to page 13 www.megger.com... -
Page 18: Extension Lead Test (Pat120, 150)
Insulation test @ 500 V Insulation test @ 250 V >2 s vii) NOTE: Multiple earth continuity tests can be carried out by pressing the QT button during the continuity test, and pressing it again for each new continuity test. See Page 13 www.megger.com... -
Page 19: Portable Rcd Test (Pat150)
Press RESET on RCD viii) Press RESET on RCD Press RESET on RCD Test complete Note : The PAT150 defaults to 30 mA RCD. To change to 10 mA, hold the RCD button down for more than 2 seconds then release. www.megger.com... -
Page 20: Fixed Equipment Testing
Only a continuity test is possible when testing fixed equipment without disconnecting the incoming supply. Use the Quick Test (QT) button to access the continuity test mode: Ensure probe (P1) is connected iii) Press 5 times to display Continuity test vii) Test complete www.megger.com... -
Page 21: Fail Handling
Individual test fail indicated by a small cross: Overall FAIL indicated by a large cross: NOTE : Once an appliance has failed a test, further testing of the test group sequence is prevented for safety reasons, except for the extension lead testing www.megger.com... - Page 22 Insulation 250 V Substitute leakage (uses P1 probe) Extension Lead, Insulation 250 V Substitute Leakage Mains leakage (uses mains connection and P1 probe) Polarity (uses extension lead adaptor) Mains Leakage (needs mains connection) SELV measurement (uses P1 and P2 probes) www.megger.com...
-
Page 23: Quick Test Examples
Quick Test (QT) options Example 1- Class I continuity iii) CONT (sub) LEAK Example 2 – Class II 250 V Insulation test iii) www.megger.com... - Page 24 Example 3 – Class II touch leakage test using the Substitute (or alternative) method. iii) vii) To repeat test NOTE To switch between test groups, press the test group buttons. To exit press the ON/OFF button www.megger.com...
-
Page 25: Selv Measurement Within Quick Test (Qt)
SELV measurement within Quick Test (QT) Separated Extra Low Voltage (SELV) measurement is performed automatically when the PAT150 is connected to the electrical supply iii) vii) For voltages <50V ac For voltages ≥ 50V To exit Quick Test (QT) mode www.megger.com... -
Page 26: Setup (Pat120, Pat150)
0.30 MΩ 4th press Rins 6th press 0.50 MΩ 5th press l leak Note : Pressing QT changes the direction To SAVE changes to setup or, to edit new test groups When changes are complete press the Power button www.megger.com... -
Page 27: Continuity Lead Null
To NULL the resistance of the IEC test lead or an extension lead >2s IEC test lead NULL ON To remove the lead null >2s To NULL the resistance of the P1 continuity test lead >2s Continuity (P1) lest lead NULL ON To exit Lead null setup www.megger.com... -
Page 28: Rcd Configuration
Portable RCD trip time for 30 mA can be set at either 200 ms (for BS 7071 conformity) or 300 ms (for IEC 61540 conformity) Portable RCD trip current selection iii) Press RCD button to change from 30 mA to 10 mA For 10mA RCD To change trip time To exit RCD configuration www.megger.com... -
Page 29: Factory Reset To Default Settings
1xIΔN10 5xIΔN10 cont Variant Model (Ω) (sub), leak , I t (sub) (Ω) for Ext (ms) (ms) (ms) (ms) for RCD (MΩ) (MΩ) (MΩ) leak lead (mA) (mA) PAT120-UK 0.25 PAT150-UK 0.25 PAT120-DE, PAT120-CH, PAT120-EU PAT150-DE, PAT150-CH, PAT150-EU PAT150-AU www.megger.com... -
Page 30: Region Selection
Region selection i) To return an instrument to iii) Factory Default settings: Press together for 2 seconds www.megger.com... -
Page 31: International Model Variations
When a continuity test fails to meet the pre-set continuity resistance pass limit of 0.3 W, the test can be run again within 5 seconds at the higher 1.0 W limit. Example Class I continuity FAIL. Display shows: to retest at 1.0 W limit or to FAIL test www.megger.com... -
Page 32: Battery And Fuse Replacement (Pat120, 150)
Spent Alkaline and NiMH batteries are classified as portable batteries and should be disposed of Warning: Only use a Megger approved PAT100 charger. Other chargers may present a fire in the UK in accordance with Local Authority risk. -
Page 33: Fuse Replacement
Spent PAT100 batteries are classified as Portable Batteries and should be disposed of in the UK in accordance with Local Authority requirements Declaration of Conformity For disposal of batteries in other parts of the EU contact your local Megger company or Hereby, Megger Instruments Limited declares that radio equipment manufactured by Megger distributor. -
Page 34: Specification
+2% to +8% (1 x I, 5 x I) Reading corrected to 230V ac. Trip time accuracy ±1% ± 1 ms Trip time resolution 0.01 ms Display range 0 to 200 ms (1 x I) 0 to 40 ms (5 x I) www.megger.com... - Page 35 One F 100 mA 250 V 5 x 20 mm HBC fuse. ENVIRONMENTAL Operating temperature range 0°C to +40°C Storage temperature range -20°C to +60°C Humidity 90%RH @ +10°C +30°C 75%RH @ +30°C to +40°C Maximum altitude 2,000m to full safety spec. IP rating IP40 (with front cover closed) www.megger.com...
- Page 36 Tel: +1 (214) 330-3203 (International) Fax: +1 (214) 337-3038 This instrument is manufactured in the United Kingdom. The company reserves the right to change the specification or design without prior notice. Megger is a registered trademark Part No. PAT100_UG_EN_V04b 05/2020 www.megger.com...
