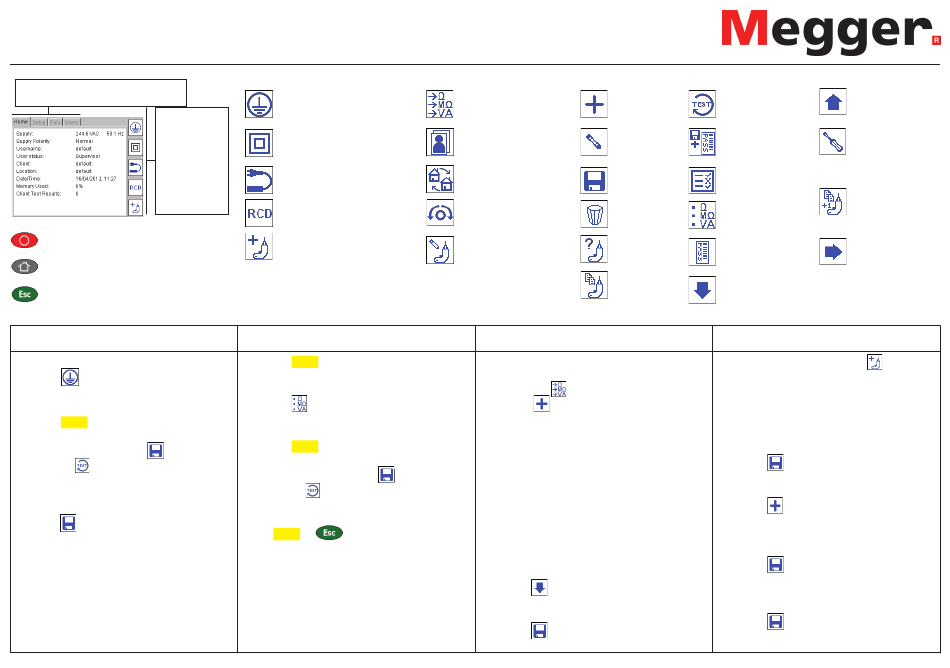

PAT400
Quick start guide
Menu bar - Provides navigation
paths and menu options
Hot keys -
Quick access
to frequently
used test
groups, and
adding
assets
Battery save power OFF
HOME screen
Escape
Testing using HOTKEYS to start test
1) From HOME screen.
2) Press
for Class I test group options
3) Press 1,2,3 etc to select from available
test groups.
4) Press TEST button to start test.
5) Follow screen instructions.
6) At end of testing press
to SAVE
or press
to repeat test.
7) Display changes to ADD ASSET screen
8) Add a new ASSET ID.
9) Add additional data if required (optional)
10) Press
to store result.
11) If the ASSET ID was added before
testing, the result will automatically be
saved and screen will return to test
groups for next test.
Note: Asset ID and optional additional data can be added before testing or after testing, as required.
Home screen
Class I test groups
Class II test groups
Power/extension leads
Portable RCD
Add asset
Pressing TEST button to start test
1) Press TEST button.
2) Add ASSET ID (this can be left until
after testing).
3) Press
to list the test groups available
4) Use DOWN arrow and OK to select
the group required.
5) Press TEST to initiate testing.
6) Follow screen instructions.
7) At end of testing press
to SAVE
or press
to repeat test.
ABORTING A TEST
To abort a test during the test sequence
press TEST or
buttons.
Test will be displayed as an aborted test.
SETUP screen
Other icons
Test group
manager
Change client
Change location
Bond lead null
Edit asset
Adding TEST GROUPS
1) From HOME screen use right arrow to
select SETUP.
2) Press the
TEST GROUP key.
.
3) Press
to ADD a TEST GROUP.
4) NAME:
enter TEST GROUP name and press
DOWN arrow (max. 10 characters).
5) Description:
Enter a useful description to help
remember TEST GROUP type. Press
DOWN arrow.
6) Select 230 V or 110 V depending on
asset supply voltage.
7) Select Class I, II or EXT (lead).
8) Check boxes:
Press OK to select each test required.
9) Press
to enter config' limits page.
10) Change PASS limits, test type and
number of test cycles as required.
11) Press
to store new test group.
Re-run test
Add
Save and print
Edit
label
View test
Save
results
List test
Delete
groups
Find asset
Print barcode
Copy last
Next page
asset
Adding ASSETS
1) From HOME screen press
new asset to database.
2) Enter ASSET ID and press DOWN
arrow.
3) Press OK to select TEST GROUP from
drop down options and press OK.
4) Add additional data if required.
5) Press
to ADD asset to database.
Adding Clients/Locations
1) Select CLIENT from SETUP menu.
2) Press
to add new client.
3) Add client Name. Other fields are
optional.
Press OK to accept.
4) Press
to save client detail. Display
will jump to ADD locations.
5) Add location name. Other fields are
optional.
6) Press
to SAVE asset to database.
Current client/location automatically updates.
