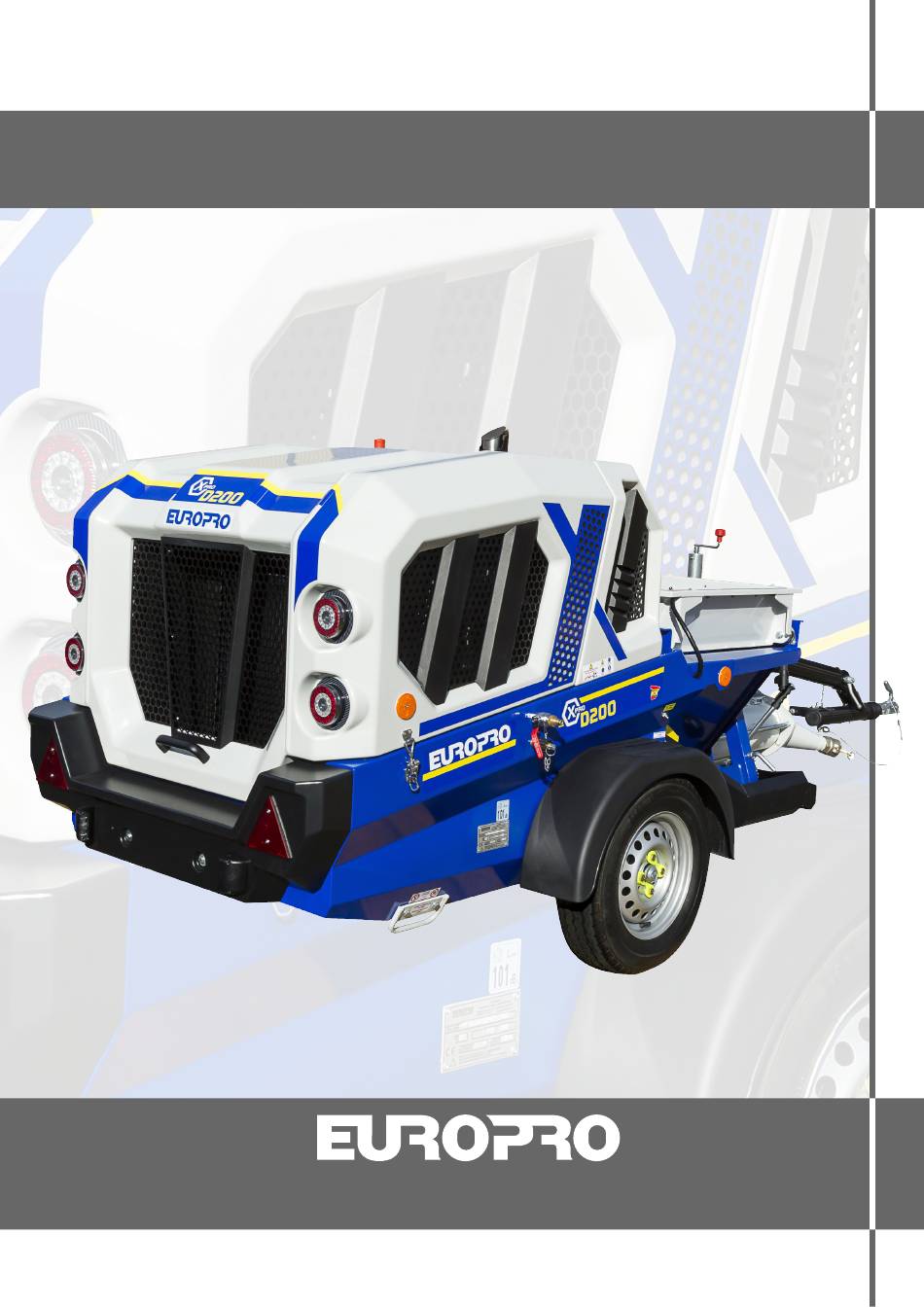

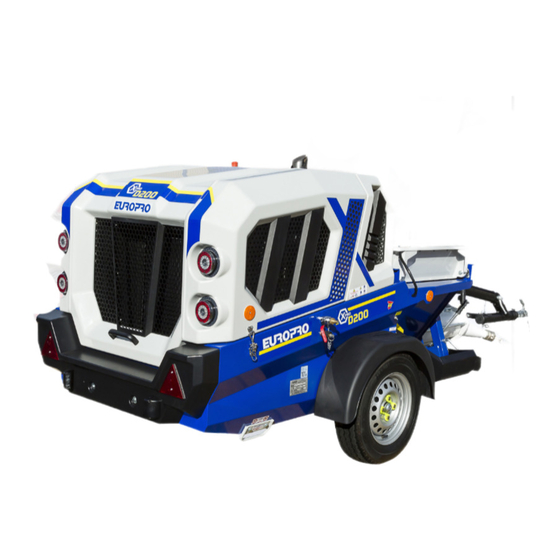

  • Page 1 User manual X-Pro D200 Réf. 40095 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 23/03/2022 More information on www.euromair.com...

  • Page 2: Table Of Contents

    8. SAFETY CARD RUNNING ..........p.22 9. VOLUME SCHEME ............p.24 10. ELECTRICAL SCHEMES ..........p.25 11. HYDRAULIC SCHEMES ..........p.27 12. DECLARATION OF CONFORMITY ......... p.30 13. WARRANTY CONDITIONS ..........p.32 14. FOLLOW-UP OF REVISIONS ........p.35 User manual - X-PRO D200 202203-577-ENG...

  • Page 3: User Manual

    - people in charge of the transport of the machine - people in charge of the use of the machine - people in charge of the cleaning and maintenance of the machine - people in charge of the final destruction of the machine 202203-577-ENG User manual - X-PRO D200...

  • Page 4: Warning

    • In case of needed After-Sale Service, always specify the machine model and its serial number. • For any replacement of parts, only use genuine parts. • Do not modify the machine. • Do not cut or dismantle the protection grids. • Do not open the electric box. User manual - X-PRO D200 202203-577-ENG...
  • Page 5 • After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it blocking up. The storage of a not greased pump can damage it seriously. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. 202203-577-ENG User manual - X-PRO D200...
  • Page 6 - Command panel lamps must be lighted-up (green = correct / red = default). - Engage the starter with the contact key. - Resume spraying or pumping procedure. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. User manual - X-PRO D200 202203-577-ENG...

  • Page 7: Transport

    It is imperative to collide this cable on the harness of the vehicle. X-Pro D200 is not a transport trailer, it is strictly forbidden to transport people or products related to the application of the machine.
  • Page 8 The safety hitch is absolutely necessary. It must be replaced in the event of loss or wear. Check the condition of the brake cable of the overrunning hitch and the safety cable at regular intervals. User manual - X-PRO D200 202203-577-ENG...

  • Page 9: End-Of-Life Of The Product

    For any further information, please contact our hotline +33 4 42 29 08 96 or conseil@euromair.com. 202203-577-ENG User manual - X-PRO D200...

  • Page 10: Your Machine

    - two cleaning balls Ø60 - a grease pump with a grease cartridge Delivered with - a complete high pressure washer lance - a 10 m high pressure washer hose - a storage carry-case User manual - X-PRO D200 202203-577-ENG...

  • Page 11: Identification Of The Components

    3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS Hydraulic oil level Product pressure control manometer Engine oil level Pump outlet Motor flange lubricator Jockey wheel Diesel tank cap Hood clips Hopper vibrator Emergency stop Adjustable pump 202203-577-ENG User manual - X-PRO D200...
  • Page 12 Reverse: right position with spring return to the centre. Stop: centre position. Forward: left position maintained. HP washer switch: On (right position) / Off (left position) Hopper vibrator control Diesel engine speed setting knob User manual - X-PRO D200 202203-577-ENG...

  • Page 13: Use Of The Machine

    In some cases, it will be necessary to use a pump that generates a higher pressure to compensate for this loss. Whenever possible, a dilution of the product and a higher pump pressure will allow a better flow in the hoses. 202203-577-ENG User manual - X-PRO D200...

  • Page 14: Machine Starting Up

    • Turn the switch (17). When water comes out, close the valve of the pressure controller and read the value on the manometer (7). • To adjust the pump pressure, tighten or loosen the screws on the pump. User manual - X-PRO D200 202203-577-ENG...

  • Page 15: High Pressure Washer Prerequisites

    Water inlet with Gardena type connection Under pressure outlet Remember to clean the suction filter very regularly (at least once a week) to avoid cavitation of the pump. The filter is located just behind the water inlet connection. 202203-577-ENG User manual - X-PRO D200...

  • Page 16: High Pressure Washer Starting Up

    • Press the gun on the cleaning lance to release the residual pressure in the high pressure hose. • Disconnect the high pressure hose. • Clean the filter behind the water inlet quick coupling. User manual - X-PRO D200 202203-577-ENG...

  • Page 17: Defects And Remedies

    Cylinder head gasket. Check engine oil level and texture ("mayonnaise"). Check engine oil level. If low level contact technical service. The diesel engine smokes black Check the injection / Clean the injection Contact technical service. 202203-577-ENG User manual - X-PRO D200...
  • Page 18 The hose must not be pinched and the Check the water supply. water valve open. HP washer does not work Check the filter for clogging. Clean the supply filter before each use. Hydraulic problem. Contact a dealer. User manual - X-PRO D200 202203-577-ENG...

  • Page 19: Cleaning Procedure

    The direct projection of water under pressure onto the control panel has to be stopped at the risk of water infiltration. Proceed by simply cleaning with a humid sponge. 202203-577-ENG User manual - X-PRO D200...

  • Page 20: Maintenance

    In order to guarantee a long-lasting operation of the machine, we invite you to contact your dealer for any maintenance intervention. He will carefully carry out the operations and check the various points we recommend. User manual - X-PRO D200 202203-577-ENG...
  • Page 21 4000 hours ou 4 years Adjust valve clearance Tare and clean injector Clean radiator (outside) Clean radiator (inside) Clean fuel tank Clean hydraulic tank Check tightening of screws and hoses Check pump, seals and flectors At every use 202203-577-ENG User manual - X-PRO D200...

  • Page 22: Safety Card Running

    Check the correct alignment of both must be incorrectly positioned. safety sensor parts of the strainer. Electrical problem The safety sensor of the hopper strainer does not function. Contact technical service. The remote control is defective. User manual - X-PRO D200 202203-577-ENG...
  • Page 23 The battery is out of order or not the battery must be changed, pay charged. attention to the polarities. The power supply circuit must be cut Contact the technical service. somewhere. The protective fuses on the card. Change the faulty fuse. 202203-577-ENG User manual - X-PRO D200...

  • Page 24: Volume Scheme

    9. VOLUME SCHEME User manual - X-PRO D200 202203-577-ENG...

  • Page 25: Electrical Schemes

    10. ELECTRICAL SCHEMES 202203-577-ENG User manual - X-PRO D200...
  • Page 26 10. ELECTRICAL SCHEMES (continued) User manual - X-PRO D200 202203-577-ENG...

  • Page 27: Hydraulic Schemes

    11. HYDRAULIC SCHEMES 202203-577-ENG User manual - X-PRO D200...
  • Page 28 11. HYDRAULIC SCHEMES (continued) User manual - X-PRO D200 202203-577-ENG...
  • Page 29 202203-577-ENG User manual - X-PRO D200...

  • Page 30: Declaration Of Conformity

    Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 User manual - X-PRO D200 202203-577-ENG...
  • Page 31 202203-577-ENG User manual - X-PRO D200...

  • Page 32: Warranty Conditions

    We exclude all liability for indirect damages suffered by the customer, such as, but not limited to, loss of income, turnover, loss of profits, loss of image, of any kind whatever. User manual - X-PRO D200 202203-577-ENG...
  • Page 33 The Euromair, Euromair MPC or Mixer service centres may be considered as the manufacturer’s representatives if they are the closest. As this principle also applies to batteries, our supplier Parts Holding Europe, or one of its sister companies, remains your contact for your requests (https://www. partsholdingeurope.com/). 202203-577-ENG User manual - X-PRO D200...
  • Page 34 User manual - X-PRO D200 202203-577-ENG...

  • Page 35: Follow-Up Of Revisions

    The recommendations given in this manual are indicative and are not a substitute for those recommended by the engine manufacturer. For any intervention on the engine, consult the maintenance manual supplied with the machine. Date Signature Stamp 50 hours 250 hours 500 hours 750 hours 1000 hours 202203-577-ENG User manual - X-PRO D200...
