- Page 1 User manual X-Pro D140 Réf. 40090 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 28/04/2021 More information on www.euromair.com...
-
Page 2: Table Of Contents
7. MAINTENANCE ............. p.19 8. SAFETY CARD RUNNING ..........p.20 9. VOLUME SCHEME ............p.22 10. ELECTRICAL SCHEMES ..........p.23 11. HYDRAULIC SCHEMES ..........p.26 12. DECLARATION OF CONFORMITY ......... p.29 13. WARRANTY CONDITIONS ..........p.31 User manual - X-PRO D140 202105-515-ENG... -
Page 3: User Manual
- people in charge of the transport of the machine - people in charge of the use of the machine - people in charge of the cleaning and maintenance of the machine - people in charge of the final destruction of the machine 202105-515-ENG User manual - X-PRO D140... -
Page 4: Warning
• In case of needed After-Sale Service, always specify the machine model and its serial number. • For any replacement of parts, only use genuine parts. • Do not modify the machine. • Do not cut or dismantle the protection grids. • Do not open the electric box. User manual - X-PRO D140 202105-515-ENG... - Page 5 • After every use, necessarily grease the pump with a mixture of water + storage liquid to avoid it blocking up. The storage of a not greased pump can damage it seriously. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. 202105-515-ENG User manual - X-PRO D140...
- Page 6 - Command panel lamps must be lighted-up (green = correct / red = default). - Engage the starter with the contact key. - Resume spraying or pumping procedure. IN CASE OF NECESSITY, WE SAVE OURSELVES THE RIGHT TO MAKE ANY USEFUL MODIFICATION WITHOUT ADVANCED NOTICE. User manual - X-PRO D140 202105-515-ENG...
-
Page 7: Transport
It is imperative to collide this cable on the harness of the vehicle. X-Pro D140 is not a transport trailer, it is strictly forbidden to transport people or products related to the application of the machine. -
Page 8: Your Machine

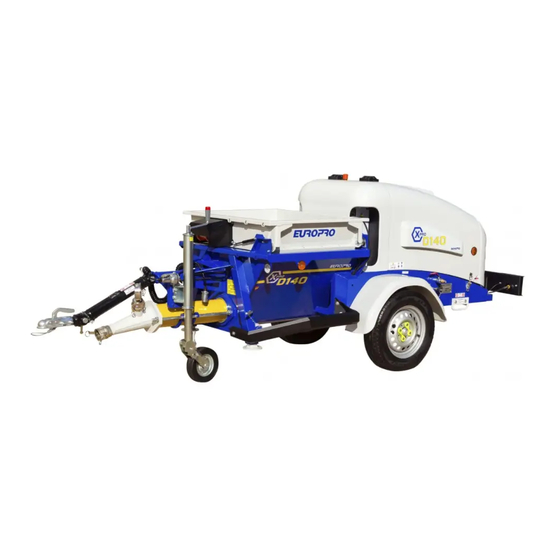

- two cleaning balls Ø50 - a grease pump with a grease cartridge Delivered with - a complete high pressure washer lance - a 10 m high pressure washer hose - a storage carry-case User manual - X-PRO D140 202105-515-ENG... -
Page 9: Identification Of The Components
3.3. IDENTIFICATION OF THE COMPONENTS Hydraulic oil level Adjustable pump Engine oil level Product pressure control manometer Electric circuit breaker Pump outlet Motor flange lubricator Jockey wheel Diesel tank cap Hood clips Hopper vibrator Emergency stop 202105-515-ENG User manual - X-PRO D140... - Page 10 Product pump rotation control switch Reverse: right position with spring return to the centre. Stop: centre position. Forward: left position maintained. HP washer switch: On (right position) / Off (left position) Hopper vibrator control Remote control plug User manual - X-PRO D140 202105-515-ENG...
-
Page 11: Use Of The Machine
In some cases, it will be necessary to use a pump that generates a higher pressure to compensate for this loss. Whenever possible, a dilution of the product and a higher pump pressure will allow a better flow in the hoses. 202105-515-ENG User manual - X-PRO D140... -
Page 12: Machine Starting Up
• Turn the switch (20). When water comes out, close the valve of the pressure controller and read the value on the manometer (8). • To adjust the pump pressure, tighten or loosen the screws on the pump. User manual - X-PRO D140 202105-515-ENG... -
Page 13: High Pressure Washer Prerequisites
Water inlet with Gardena type connection Under pressure outlet Remember to clean the suction filter very regularly (at least once a week) to avoid cavitation of the pump. The filter is located just behind the water inlet connection. 202105-515-ENG User manual - X-PRO D140... -
Page 14: High Pressure Washer Starting Up
• Press the gun on the cleaning lance to release the residual pressure in the high pressure hose. • Disconnect the high pressure hose. • Clean the filter behind the water inlet quick coupling. User manual - X-PRO D140 202105-515-ENG... - Page 15 202105-515-ENG User manual - X-PRO D140...
-
Page 16: Defects And Remedies
Cylinder head gasket. Check engine oil level and texture ("mayonnaise"). Check engine oil level. If low level contact technical service. The diesel engine smokes black Check the injection / Clean the injection Contact technical service. User manual - X-PRO D140 202105-515-ENG... - Page 17 The hose must not be pinched and the Check the water supply. water valve open. HP washer does not work Check the filter for clogging. Clean the supply filter before each use. Hydraulic problem. Contact a dealer. 202105-515-ENG User manual - X-PRO D140...
-
Page 18: Cleaning Procedure
The direct projection of water under pressure onto the control panel has to be stopped at the risk of water infiltration. Proceed by simply cleaning with a humid sponge. User manual - X-PRO D140 202105-515-ENG... -
Page 19: Maintenance
In order to guarantee a long-lasting operation of the machine, we invite you to contact your dealer for any maintenance intervention. He will carefully carry out the operations and check the various points we recommend. 202105-515-ENG User manual - X-PRO D140... -
Page 20: Safety Card Running
Check the correct alignment of both must be incorrectly positioned. safety sensor parts of the strainer. Electrical problem The safety sensor of the hopper strainer does not function. Contact technical service. The remote control is defective. User manual - X-PRO D140 202105-515-ENG... - Page 21 The battery is out of order or not the battery must be changed, pay charged. attention to the polarities. The power supply circuit must be cut Contact the technical service. somewhere. The protective fuses on the card. Change the faulty fuse. 202105-515-ENG User manual - X-PRO D140...
-
Page 22: Volume Scheme
9. VOLUME SCHEME User manual - X-PRO D140 202105-515-ENG... -
Page 23: Electrical Schemes
10. ELECTRICAL SCHEMES 202105-515-ENG User manual - X-PRO D140... - Page 24 10. ELECTRICAL SCHEMES (continued) User manual - X-PRO D140 202105-515-ENG...
- Page 25 10. ELECTRICAL SCHEMES (continued) 202105-515-ENG User manual - X-PRO D140...
-
Page 26: Hydraulic Schemes
11. HYDRAULIC SCHEMES User manual - X-PRO D140 202105-515-ENG... - Page 27 11. HYDRAULIC SCHEMES (continued) 202105-515-ENG User manual - X-PRO D140...
- Page 28 User manual - X-PRO D140 202105-515-ENG...
-
Page 29: Declaration Of Conformity
Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 202105-515-ENG User manual - X-PRO D140... - Page 30 User manual - X-PRO D140 202105-515-ENG...
-
Page 31: Warranty Conditions
Any action of the customer against us relating to the guarantee of the equipments will be prescribed within the period of 1 year as from the day of the discovery of the defect. It is up to the customer to prove the day of this discovery. 202105-515-ENG User manual - X-PRO D140... - Page 32 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 More information on www.euromair.com User manual - X-PRO D140 202105-515-ENG...
