User manual
HYDROPRO 800
(Premium & Standard)
Réf. 30922 / 30923 / 30894 / 30921
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Edition of 02/09/2022
More information on www.euromair.com
Advertisement
Table of Contents
Related Manuals for EUROPRO HYDROPRO 800 Premium
Summary of Contents for EUROPRO HYDROPRO 800 Premium
- Page 1 User manual HYDROPRO 800 (Premium & Standard) Réf. 30922 / 30923 / 30894 / 30921 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 €...
-
Page 2: Table Of Contents
SUMMARY You just acquired one of our machines and all the team of Europe Projection thanks confidence 1. USER MANUAL ............. p. 3 have granted 1.1. Importance of the manual .........p. 3 Manufacturer of professional 1.2. Receivers of the manual ..........p. 3 equipments for paint and fillers, we have put our know-how for 25 years... -
Page 3: User Manual
1. USER MANUAL 1.1. IMPORTANCE OF THE MANUAL This manual is a key part for the use of your machine. It summarizes the procedures of starting-up, cleaning and maintenance of the device and also the safety instructions you need to observe. Read carefully all the working and safety instructions and the warnings included in this manual before starting your machine. -
Page 4: Warning
2. WARNING 2.1. SAFETY Using the machine in an incorrect way or in non-compliance of the safety instructions indicated in this manual can cause death or serious injuries. Read carefully all the working and safety instructions and the warnings contained in this manual before starting your machine. - Page 5 2. WARNING (continued) 2.1. SAFETY (continued) WORKSPACE • Maintain the workspace clean and clear. • Ambient operating temperature must be from 5°C and 35°C. • Do not use the equipment in a potentially explosive area. • Do not place any potentially inflammable objects in close proximity to the machine. •...
-
Page 6: Electric Connection
2. WARNING (continued) 2.2. ELECTRIC CONNECTION The electric connection of the machine must be on a 16A - 230V plug with a differential circuit breaker. Before any intervention on the machine, make sure that every energy supply is cut (air and electricity). GROUND CONNECTOR All the machines must be connected to the ground when they work to protect the operator from electric shocks. -
Page 7: Your Machine
Its hydraulic motor pump has a longer and slower piston stroke, which makes its use flexible and extremely reliable. SSP system is ideal for high viscosity products. The pump is permanently fed for smooth operation. For a simple and comfortable use, HYDROPRO 800 PREMIUM model is equipped with a rotating reel drum. APPLICATIONS Atomizer for paints on large-sized jobs, and for fillers on medium-sized jobs such as airless fillers, glues and bituminous. -
Page 8: Identification Of The Components - Standard Versions

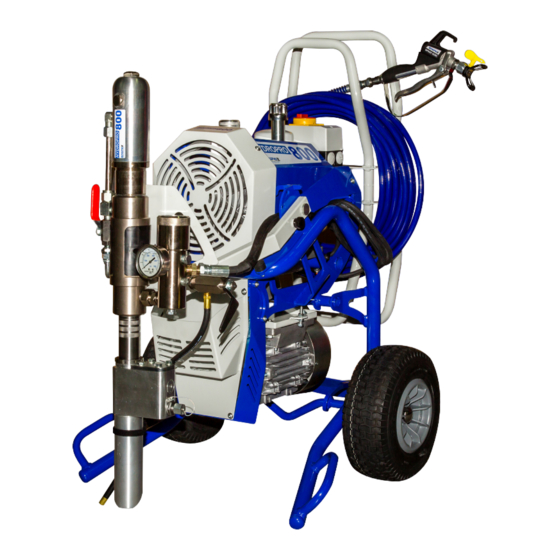

3. YOUR MACHINE (continued) 3.3. IDENTIFICATION OF THE COMPONENTS - STANDARD VERSIONS Product suction pump Electrical plug Manometer Pump arm locking pin Pump stop valve Drain valve Product filter Drain hose Spray-gun Feed pump (SSP version only) Oil filter Oil filling cap Product pressure adjustment thumbwheel Switch User manual - HYDROPRO 800... -
Page 9: Identification Of The Components - Premium Versions
3. YOUR MACHINE (continued) 3.4. IDENTIFICATION OF THE COMPONENTS - PREMIUM VERSIONS Product suction pump Electrical plug Manometer Pump arm locking pin Pump stop valve Drain valve Product filter Drain hose Spray-gun Feed pump (SSP version only) Oil filter Hose reel Oil filling cap Hose reel lock thumbwheel Product pressure adjustment thumbwheel... -
Page 10: Use Of The Machine
4. USE OF THE MACHINE 4.1. PREREQUISITES • The electric connection has to be 230 V - 16 A - 50 Hz with a 3 x 2,5 mm cable reel of 40m maximum, completely unreeled. • The machine is equipped with a thermal circuit breaker that stops the motor when it reaches an excessive temperature. -
Page 11: Starting Up
4. USE OF THE MACHINE (continued) 4.2. STARTING UP Before each use, check the oil level with the gauge (G). Refill with hydraulic oil if necessary. Connect the machine electrically. Tilt the pump arm to position (R1) to be able to slide the product bucket under the machine. Tilt the pump arm back to position (R2) to dip the pump (A) into the bucket*. -
Page 12: Defects And Remedies
5. DEFECTS AND REMEDIES Defect Remedy I turn the switch and the machine does not start. • Verify the power supply. • Verify the power supply. • Verify that the switch (I) is in the ON position. I spray and the pump does not work. •... -
Page 13: Declaration Of Conformity
7. DECLARATION OF CONFORMITY THE MANUFACTURER : EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW : Trademark : EUROPE PROJECTION Type : Airless atomizer Model : HYDROPRO 800 COMPLIES WITH THE DIRECTIVES: • Machines 2006/42/CE •... -
Page 14: Warranty Conditions
8. WARRANTY CONDITIONS Each equipment is delivered inspected and tested. We exclude any warranty for visible defects, not notified by the customer within 48 hours. The equipment sold is guaranteed during the manufacturer’s warranty from the date of purchase, as specified on the original proof of purchase, and under the conditions defined by the manufacturer. - Page 15 8. WARRANTY CONDITIONS (continued) In all cases, our liability shall be limited to the amount paid by the customer for non-compliant equipment. Any legal action of the customer against us relating to the warranty of the equipment shall be barred 1 year after the date of discovery of the defect.
- Page 16 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 More information on www.euromair.com User manual - HYDROPRO 800 202209-613-ENG...
