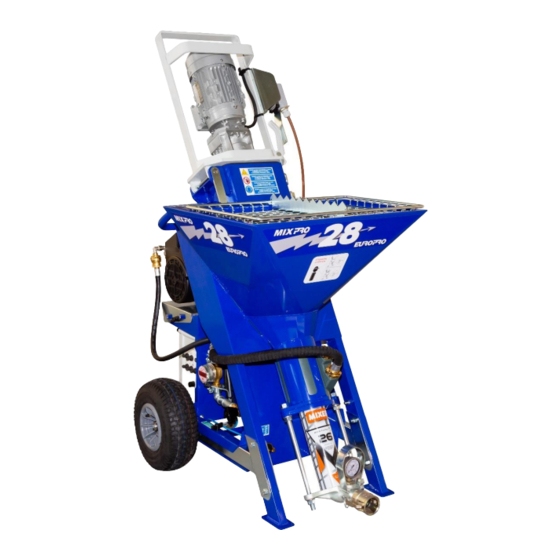

MIXING PUMP
MIXPRO 28
MANUAL INSTRUCTIONS
ORIGINAL INSTRUCTIONS
Revision n...... of ......
EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset
Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36
SAS au capital de 400 000€ - SIREN 394 961 510 – NAF 2892 Z
Edition du 01/03/2021
Advertisement
Table of Contents
Related Manuals for EUROPRO MIXPRO 28
Summary of Contents for EUROPRO MIXPRO 28

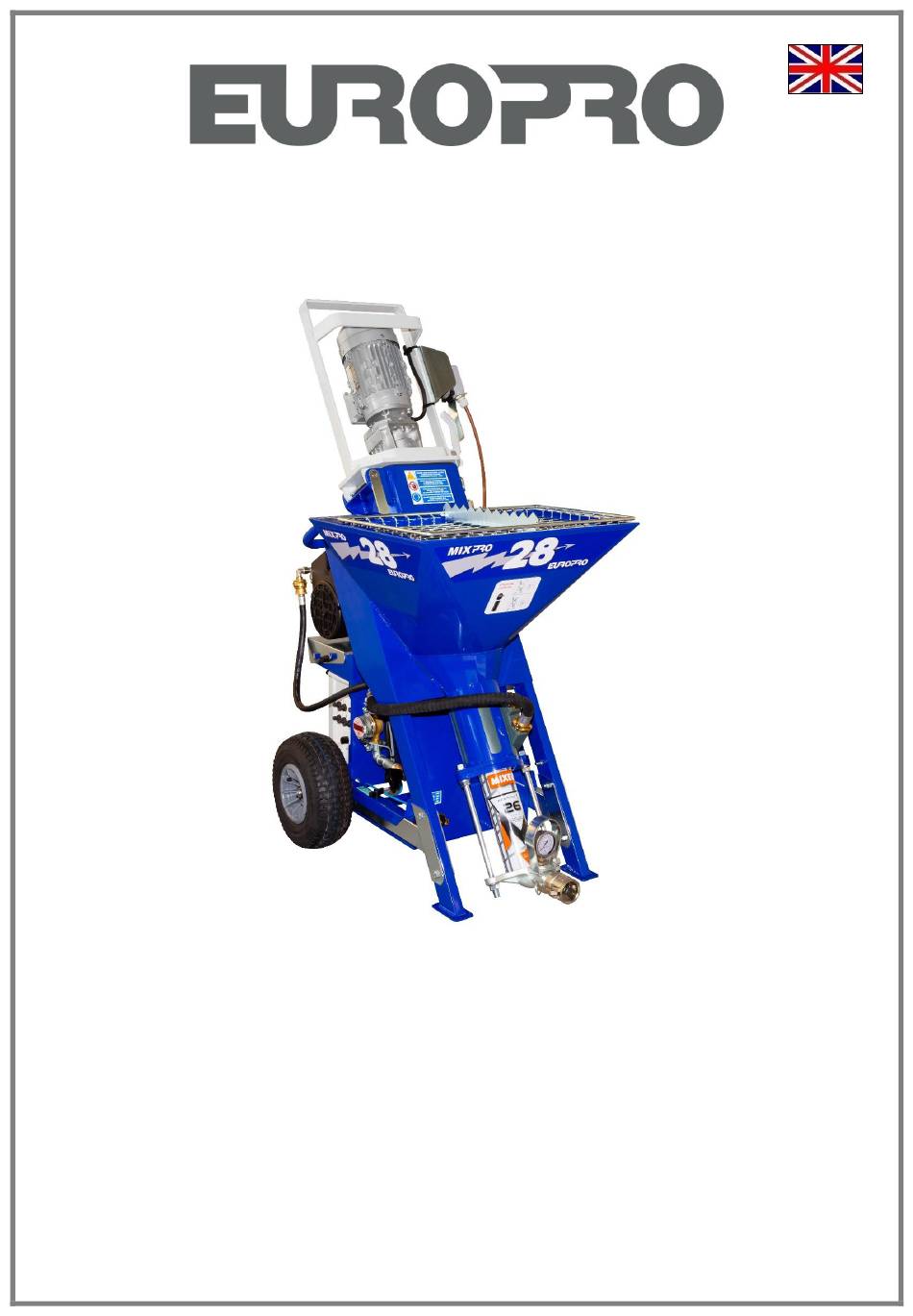

- Page 1 MIXING PUMP MIXPRO 28 MANUAL INSTRUCTIONS ORIGINAL INSTRUCTIONS Revision n…… of …… EUROPE PROJECTION - Z .I. Rousset Parc Club - 343, avenue Francis Perrin - 13106 Rousset Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 400 000€...
-
Page 2: Table Of Contents
GENERAL INDEX CE MARKING ....................3 FINAL TESTING AND COMMISSIONING ............... 3 RESERVED RIGHTS ..................3 DECLARATION OF CONFORMITY ................ 4 TECHNICAL DATA .................... 5 DIMENSIONS OF THE MACHINE ................. 5 PARTS LIST ....................6 PACKAGING ....................8 UNPACKING ....................9 USE DESTINATION .................. -
Page 3: Ce Marking
CE MARKING FINAL TESTING AND COMMISSIONING (by the Manufacturer or the authorized Dealer) The machine is already tested at the Manufacturer's premises. The commissioning of the machine at the client is carried out by Manufacturer or the Authorized Dealer. At the end of the testing, the Manufacturer or Authorized Dealer fills in the testing and commissioning certificate, which is signed by the testing technician, the operator in charge (or any other authorized operator), and by the safety manager, who shall certify the positive result of the same. -
Page 4: Declaration Of Conformity
And the following standards: EN 60204-1:2016 Safety standard of the electrical equipment of machines ▪ EN 12100-1 and 2 Machinery Safety – Essential concepts, main design ▪ principles The technical dossier is kept by Manufacturer. Signed Instruction Manual MIXPRO 28 EUROPRO pag.4... -
Page 5: Technical Data
TECHNICAL DATA MIXING PUMP MIXPRO 28 The models available of the machine: MODELS POWER SUPPLY WATER SUPPLY E.W.I. 230 v – 50 Hz Water MORTAR 2.2 KW 230 v – 50 Hz Water MORTAR 3 KW 230 v – 50 Hz... - Page 6 Instruction Manual MIXPRO 28 EUROPRO pag.6...
-
Page 7: Parts List
( all products , except light ones) 18) Water line pression guage 19) Bag cutting blade 20) Gearmotor power suppli plug 21) Compressor 22) Main power suppli plig 23) Command and control panel 24) Compressor power plug Instruction Manual MIXPRO 28 EUROPRO pag.7... -
Page 8: Packaging
No. 2 Rubber spare parts distributor for spray gun; No. 2 Balls in rubber-sporge for the cleaning of the material conveying tube; No. 1 Fast connection for the cleaning of the material conveying tube; Instruction Manual MIXPRO 28 EUROPRO pag.8... -
Page 9: Unpacking
Separate the parts making up the machine according to the different construction materials (plastic, copper, iron, etc...). Lubricant liquids and any other fluids shall absolutely not be dispersed in the environment. Instruction Manual MIXPRO 28 EUROPRO pag.9... -
Page 10: Machine Transport
MACHINE TRANSPORT In the drawing are visible the coupling points for the transport and handling of the machine. Instruction Manual MIXPRO 28 EUROPRO pag.10... -
Page 11: Safety Instructions
Don’t introduce objects thought the hopper protection grating. Don’t use the machine with the open grating. It is absolutely forbidden to tamper the calibration of pressure reduction valve. Don’t step or pull tubes and the electrical connections. Instruction Manual MIXPRO 28 EUROPRO pag.11... -
Page 12: Residual Risks
FORESEEABLE INCORRECT USE Don’t use different products from the Antigrip, supplied, for danger of malfunctions of the machine. Don’t throw foreign body in hopper (gravel, stones, etc….) for danger of machine breakdown and dangerous projection. Instruction Manual MIXPRO 28 EUROPRO pag.12... -
Page 13: Assembling Of Rotor And Mixer
ASSEMBLING OF ROTOR AND MIXER Carry out the operations by following the letters in succession. WATER CONNECTION Instruction Manual MIXPRO 28 EUROPRO pag.13... -
Page 14: Connection Of The Material Conveying Tube
CONNECTION OF THE MATERIAL CONVEYING TUBE Attention: Performing the disconnection only in the absence of pressure indicated in gauge. CONNECTION OF THE MATERIAL CONVEYING AND AIR TUBES TO THE SPRAYING NOZZLE Instruction Manual MIXPRO 28 EUROPRO pag.14... -
Page 15: Electrical Connections
All the electrical connections (plugs - sockets) must be CEE industrial type with protection degree IP67. The use of extension cords is admitted only if made in safety standards (cross-section of conductors, insulation, earthing, etc..) Instruction Manual MIXPRO 28 EUROPRO pag.15... - Page 16 Main power switch “I ON -0 OFF” ·Pos. “ I ON” : Gives power to the electric panel ·Pos. “0 OFF”: Decrease power to the electric panel Two-position selector ·"Up" pos.: turns the compressor on in automatic mode; "Manual" ·"Down" pos.: turns the compressor on in manual mode. "Automatic" Start compressor Instruction Manual MIXPRO 28 EUROPRO pag.16...
-
Page 17: Control Panel (2021 Version)
·"DX" pos.: turns the compressor on in automatic mode; "Manual" ·"SX" pos.: turns the compressor on in manual mode. "Automatic" Start compressor Button blue (by hold action Activates the water drain (recommended for the winter action) period) Instruction Manual MIXPRO 28 EUROPRO pag.17... -
Page 18: Checks Before Switching On
Make sure that the air, water and material conveying tubes are well stretched avoiding any constriction. Use the compulsory personal protective devices provided by own employer. Instruction Manual MIXPRO 28 EUROPRO pag.18... -
Page 19: Machine Preparation
Stop the machine pressing the button “0”; g. Connect the material conveying tube to the machine material out-put connection pulling the side levers. h. Connect the lance to the material hose and to the water hose. Instruction Manual MIXPRO 28 EUROPRO pag.19... -
Page 20: Spraying Of The Material
1. Stop the machine by closing (-) the valve on the spray lance 2. To resume work, open (+) the valve on the spray lance For pauses longer than 15 minutes it is mandatory to carry to shutdown the machine Instruction Manual MIXPRO 28 EUROPRO pag.20... -
Page 21: Cleaning Of Chamber Mixing
7) Open the service tap till the two foam rubber balls come out from the opposite end; ATTENTION: before disconnecting the material conveying tube, it is compulsory to check that the equipment is not under pressure. Instruction Manual MIXPRO 28 EUROPRO pag.21... -
Page 22: Cleaning Of The Spraying Nozzle Air Tube
1. Disconnect the water inlet tubes of the machine and mixing chamber; 2. Open the tap of the system water drain; Discharge the water opening the solenoid valve through the selector: till no more water comes out Instruction Manual MIXPRO 28 EUROPRO pag.22... -
Page 23: Research Of Malfunctions
4) replace the assembly stator rotor. 1) Blocked pump 1) Reset intervention thermal ask any The water pump technical assistance interven-tion; stops—thermal 2) Damaged cables and protection tripping plug 2)check the cable and plug and replace any damaged parts Instruction Manual MIXPRO 28 EUROPRO pag.23... - Page 24 3) mixing chamber dirty. 2) clean the mixer; h e spraying noz- parts. 3) clean the mixing chamber zle too dense. Instruction Manual MIXPRO 28 EUROPRO pag.24...
-
Page 25: Routine Maintenance
Weekly Gearmotor. Visual inspection and, if necessary, topping up with oil type BERGOIL “BERGOFLUID 1000” or equivalent. Water filter. Cleaning Compressor filter. Cleaning Six-monthly Compressor filters. Replacement Gaskets of chamber mixing Replacement (Camix). Instruction Manual MIXPRO 28 EUROPRO pag.25... -
Page 26: Warranty
8) It is explicitly agreed upon, that the manufacturer shall not be held responsible for any liability following any possible damages that the purchasers may suffer resulting from loss of or diminished production due to possible construction defects subject to this warranty. Instruction Manual MIXPRO 28 EUROPRO pag.26... - Page 27 Instruction Manual MIXPRO 28 EUROPRO pag.27...
- Page 28 Tél : 00 33 (0)4 42 29 08 96 – Fax : 00 33 (0)4 42 53 44 36 SAS au capital de 40 000€ - SIREN 444 797 310 000 – NAF 4673 B Instruction Manual MIXPRO 28 EUROPRO pag.28...
