Whittier Wood Ellison 2140AST Assembly Instructions

Whittier Wood Ellison 2140AST Assembly Instructions

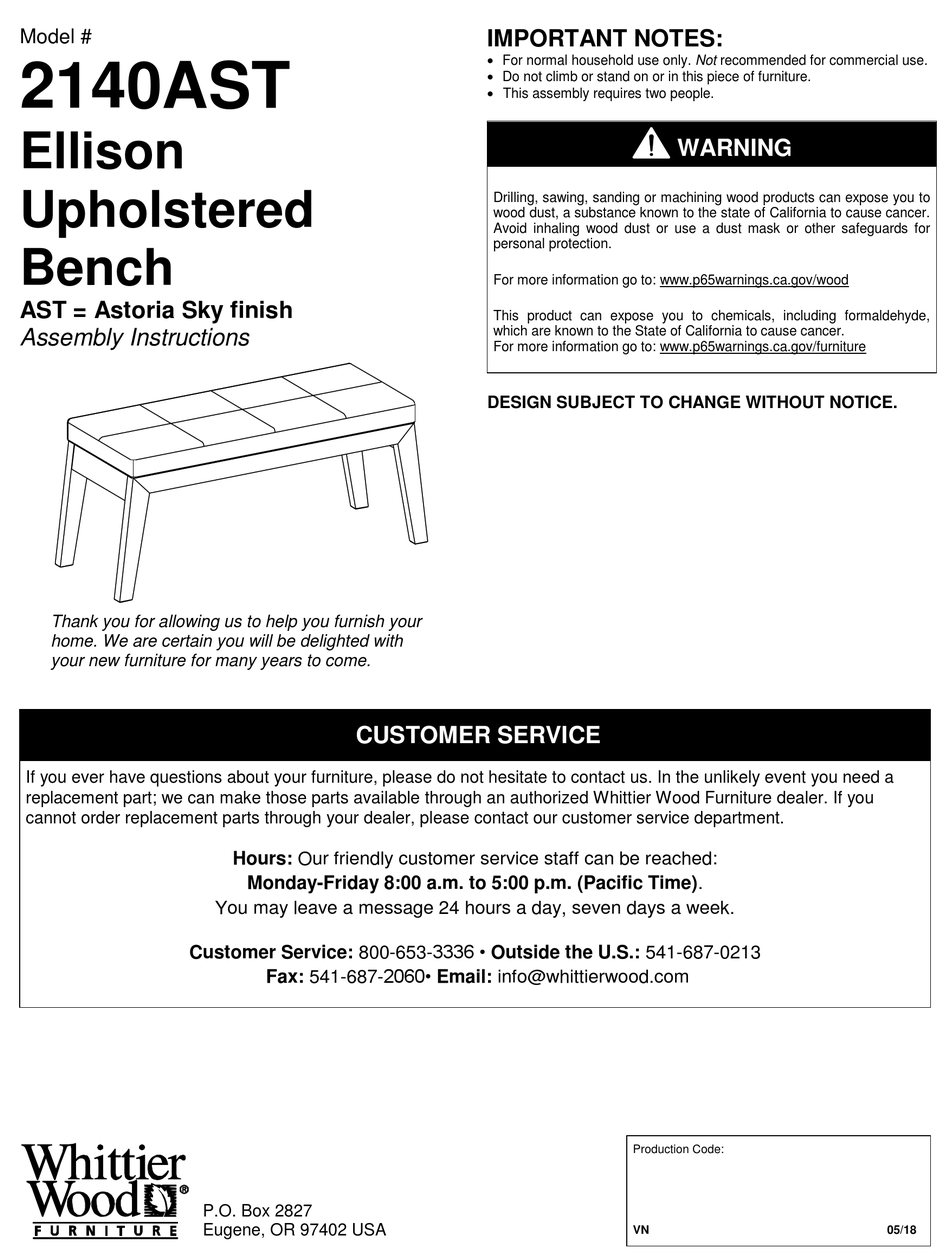

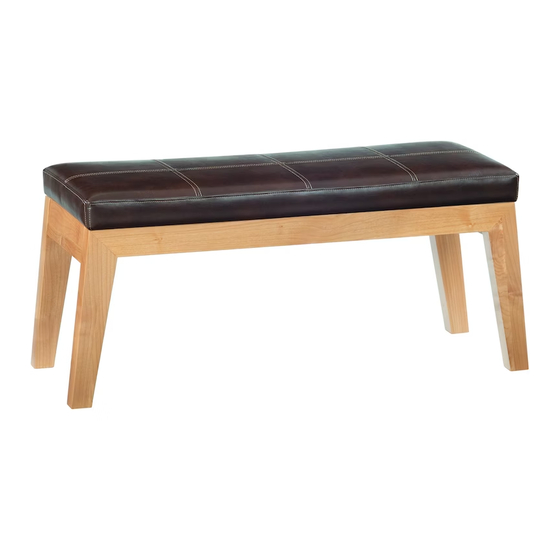

Upholstered bench

Advertisement

Quick Links

Model #
2140AST
Ellison
Upholstered
Bench
AST = Astoria Sky finish
Assembly Instructions
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
 For normal household use only. Not recommended for commercial use.
 Do not climb or stand on or in this piece of furniture.
 This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
05/18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ellison 2140AST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whittier Wood Ellison 2140AST

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 2140AST Ellison Upholstered Bench Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter(s) and part name. Part Description Quantity Upholstered Seat Leg Frame Assembly Side Apron Assembly Center Seat Support...
  • Page 3 2140AST Ellison Upholstered Bench Assembly Instructions Tools Required: Phillips Screwdriver, 9/16" or Adjustable Wrench, Mallet or Padded Hammer. Lay one Leg Frame Assembly (B) face down on a clean, protected surface. Insert the Apron Assemblies (C) using the dowel and dowel hole in the Frame Assembly for alignment. Secure with 3/8"...
  • Page 4 2140AST Ellison Upholstered Bench Assembly Instructions Lay the remaining Leg Frame Assembly (B) face down on a clean, protected surface. Flip the assembled pieces from step 2 over and align the dowels in that assembly to the dowel holes in the Leg Frame Assembly as shown in Figure 3.
  • Page 5 2140AST Ellison Upholstered Bench Assembly Instructions Turn the bench upright. Place the bench at its final destination. Rotate the Adjustable Glides (L) on the bottoms of the legs until the unit is level. See Figure 5. Fig. 5 Please note: Our upholstered seat is covered in Bonded Leather. To clean it, simply use a soft cloth, mild soap and water.
