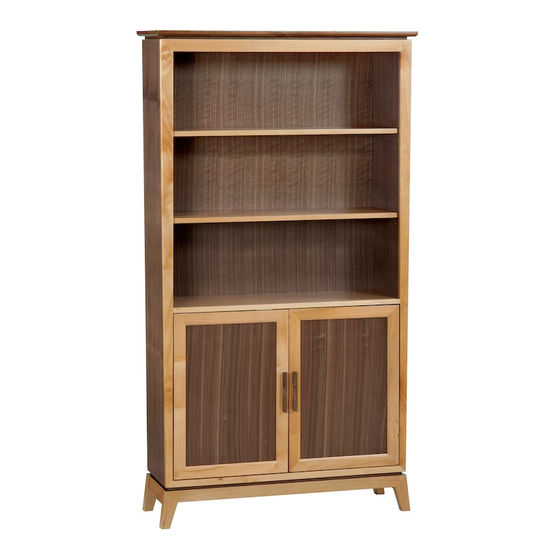

Addison 72"h bookcase with doors

Advertisement

Model #
2098DUET
Addison
72"H Bookcase
with Doors
DUET finish
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA

IMPORTANT NOTES:

For maximum stability, attach unit to the wall using the enclosed
Tipping restraint.
Wood can be susceptible to changing color over time when exposed to
strong sunlight. Use window shades, drapes or blinds to protect your
furniture. To help the surface age evenly and avoid dark and light
spots, periodically move items to expose the entire surface to an even
amount of light so it may develop a uniform patina.
For normal household use only. Not recommended for commercial use.
Do not climb, sit or stand on this piece of furniture.
Do not overload the shelves on this unit.
Unload items before you move this unit.
This assembly requires two people.
Children have died from furniture tipover. To reduce the risk of
furniture tipover:
ALWAYS install tipover restraint provided.
NEVER put a TV on this product.
NEVER allow children to stand, climb or hang on drawers,
doors or shelves.
Place heaviest items on the lowest shelves.
Use of tipover restraints may only reduce, but not eliminate,
the risk of tipover.
Attention: Attached to the bottom of or included with this unit is a tipping
restraint kit. When you receive your furniture, be sure to find and install
the tipping restraint as instructed in the kit. If you cannot locate the
restraint, please contact us immediately for replacement.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
08/19

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2098DUET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whittier Wood 2098DUET

  • Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
  • Page 2 2098DUET Addison 72"H Bookcase with Doors Parts List Please identify the parts and check that quantities received match those on this list. If you need to replace a part, refer to the following letter and part name. Part Description Quantity...
  • Page 3 2098DUET Addison 72"H Bookcase with Doors Parts List Part Description Quantity Hex Bumper (attached) Front 4-Hole Bracket (attached) Back 6-Hole Bracket (attached) Small Adjustable Glide (installed) Shelf Bracket (installed) Bookcase Tipping Restraint (attached) 1 set 2098DUET — Page 3 — 08/19...
  • Page 4 2098DUET Addison 72"H Bookcase with Doors Assembly Instructions Tools Required: Phillips Screwdriver, Rubber Mallet or Padded Hammer. To move the Adjustable Shelves (C), remove the #6 x 1/2" Undercut Screws (F) and the Shelves (C). Reposition the Shelf Brackets (W) to the desired positions, replace the shelves and insert the screws.
  • Page 5 2098DUET Addison 72"H Bookcase with Doors Assembly Instructions The door may need to be adjusted so that all the spaces between the doors and unit sides are equal. To make those adjustments, follow the instructions in Figure 3. Side adjustment To move the door towards the side panel, rotate screw '2' counter-clockwise.
  • Page 6 Before you begin this assembly, identify each part and make sure the quantities received match what is on this list. If you need to replace a part, contact Whittier Wood Furniture customer service and refer to the following list for its name and letter code.
  • Page 7 2098DUET Addison 72"H Bookcase with Doors Assembly Instructions Decide where you want to place the piece of furniture in your room. Mark the baseboard with a pencil mark directly behind the location where the tipping restraint is attached to your item.
  • Page 8 2098DUET Addison 72"H Bookcase with Doors Assembly Instructions Move the item back into position against the wall and reach underneath the piece of furniture to grasp the loop in the free end of the strap. Pull the free end of the strap until portion between the Cam Buckle (A) and the back apron of the item is tight.
