McKenzie Petite Storage Beds
GAC = Glazed Antique Cherry finish
CAF = Caffè finish
FST = Fieldstone finish
Assembly Instructions
Model #
2376GAC
2376CAF
2376FST

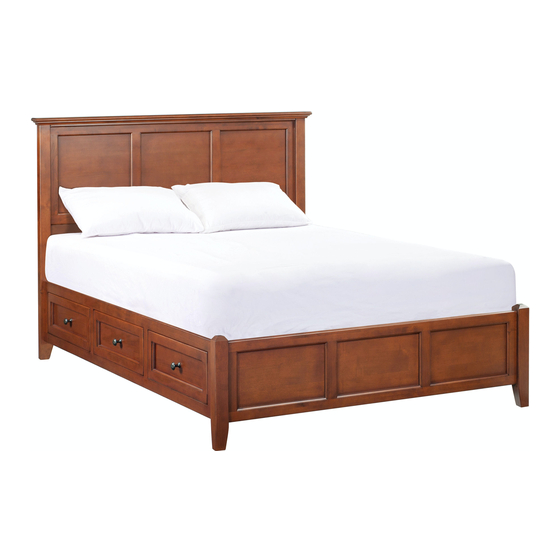

McKenzie Queen Petite Storage Bed
2386GAC
2386CAF
2386FST
McKenzie King Petite Storage Bed
Thank you for allowing us to help you furnish your
home. We are certain you will be delighted with
your new furniture for many years to come.
If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a
replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you
cannot order replacement parts through your dealer, please contact our customer service department.
Customer Service: 800-653-3336 • Outside the U.S.: 541-687-0213
CUSTOMER SERVICE
Hours: Our friendly customer service staff can be reached:
Monday-Friday 8:00 a.m. to 5:00 p.m. (Pacific Time).
You may leave a message 24 hours a day, seven days a week.
Fax: 541-687-2060• Email: info@whittierwood.com
P.O. Box 2827
Eugene, OR 97402 USA
IMPORTANT NOTES:
• For normal household use only. Not recommended for commercial use.
• Unload items before you move this unit.
• This assembly requires two people.
Drilling, sawing, sanding or machining wood products can expose you to
wood dust, a substance known to the state of California to cause cancer.
Avoid inhaling wood dust or use a dust mask or other safeguards for
personal protection.
For more information go to: www.p65warnings.ca.gov/wood
This product can expose you to chemicals, including formaldehyde,
which are known to the State of California to cause cancer.
For more information go to: www.p65warnings.ca.gov/furniture
DESIGN SUBJECT TO CHANGE WITHOUT NOTICE.
Production Code:
VN
WARNING
12/19
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Whittier Wood McKenzie 2376GAC
Summary of Contents for Whittier Wood McKenzie 2376GAC
- Page 1 If you ever have questions about your furniture, please do not hesitate to contact us. In the unlikely event you need a replacement part; we can make those parts available through an authorized Whittier Wood Furniture dealer. If you cannot order replacement parts through your dealer, please contact our customer service department.
- Page 2 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Parts List Please note this Assembly Instruction is for either the McKenzie Queen Petite Storage Bed (2376) or the McKenzie King Petite Storage Bed (2386). The Parts list for each headboard follows on pages 2 and 3.
-
Page 3: Part Description
2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Parts List 2389GAC 2389CAF 2389FST King Petite Headboard/Footboard Kit (x1) Part Description Quantity Headboard Assembly Footboard Assembly King Trestle With T-Nuts (40-1/2") Center Deckboard #6 x 1/2"... - Page 4 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Parts List 2378GAC 2378CAF 2378FST 2378FST Queen/King Pedestal Kit (x2) Part Description Quantity Pedestal Drawer Box (assembled) Drawer Face (attached) Notched Deckboard (attached) Left/Right Center Deckboard Assembled Foot 20"...
- Page 5 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Tools Required: Phillips screwdriver, 7/16" open end or box end wrench and Tape measure Remove the Queen Trestles (C) from the back of the Headboard (A) and place to the side for #2376 Queen Bed, or remove the Center Deckboard (E) and King Trestles (D) from the back of the Headboard (A) and place to the side for #2386 King Bed.
- Page 6 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Place both Pedestals (F) approximately 63" apart for #2376 Queen Bed, or 79" apart for #2386 King Bed as shown in Figures 2 and 2a. (For 2376) 63"...
- Page 7 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Repeat step three for the left side. See Figures 4 and 4a. Fig. 4 Fig. 4a Align the Brackets on both sides and slide the Pedestal/Footboard assembly down on to the Headboard (A).
- Page 8 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Facing the Headboard open the drawers slightly as shown in figure 6. Attach an Assembled Foot (K) to the bottom corner of the the two braces closest to the Headboard on each pedestal using two 1/4"...
- Page 9 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. NOTE: There are blocks mounted on the back side of the Footboard to support the end of the pedestal eliminating the need for an Assembled Foot in this position where it would be easily visible.
- Page 10 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Open the drawers. Face the Footboard and stand in between the first and second braces. Place a Trestle with T-Nuts (C or D) on the outside surfaces of the first upper left and right braces so that the T-Nuts (V) sit near the top.
- Page 11 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Face the Headboard and stand in between the third and fourth braces. Place a Trestle with T-Nuts (C/D) on the outside surfaces of the third upper left and right braces so the T-nuts sit near the top.
- Page 12 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. 10. Facing the Footboard, attach the Pedestal Assembly to the Footboard with a 90º Bracket (ZF) and four #6 x 1/2" Philtruss Screws (N). Repeat for the other side. See Figures 10 and 10a. Fig.
- Page 13 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. 11. To make sure the bed is square, measure the distance between opposing corners. If one of the measurements is larger, tap on a footboard leg until the measurement is equal.
- Page 14 2376GAC 2376CAF 2376FST McKenzie Queen Petite Storage Bed 2386GAC 2386CAF 2386FST McKenzie King Petite Storage Bed Assembly Instructions This assembly requires two people. Step 13 is for the McKenzie King Petite Storage Bed (#2386) 13. Place the Center Deckboard (E) as shown in Figure 13 and secure with twelve #8 x 1-1/4" Black Screws (P).
