Altelix NX161206-DIN Installation Manual

WARNING: READ ALL INSTRUCTION BEFORE USE. THIS ENCLOSURE IS DESIGNED TO BE

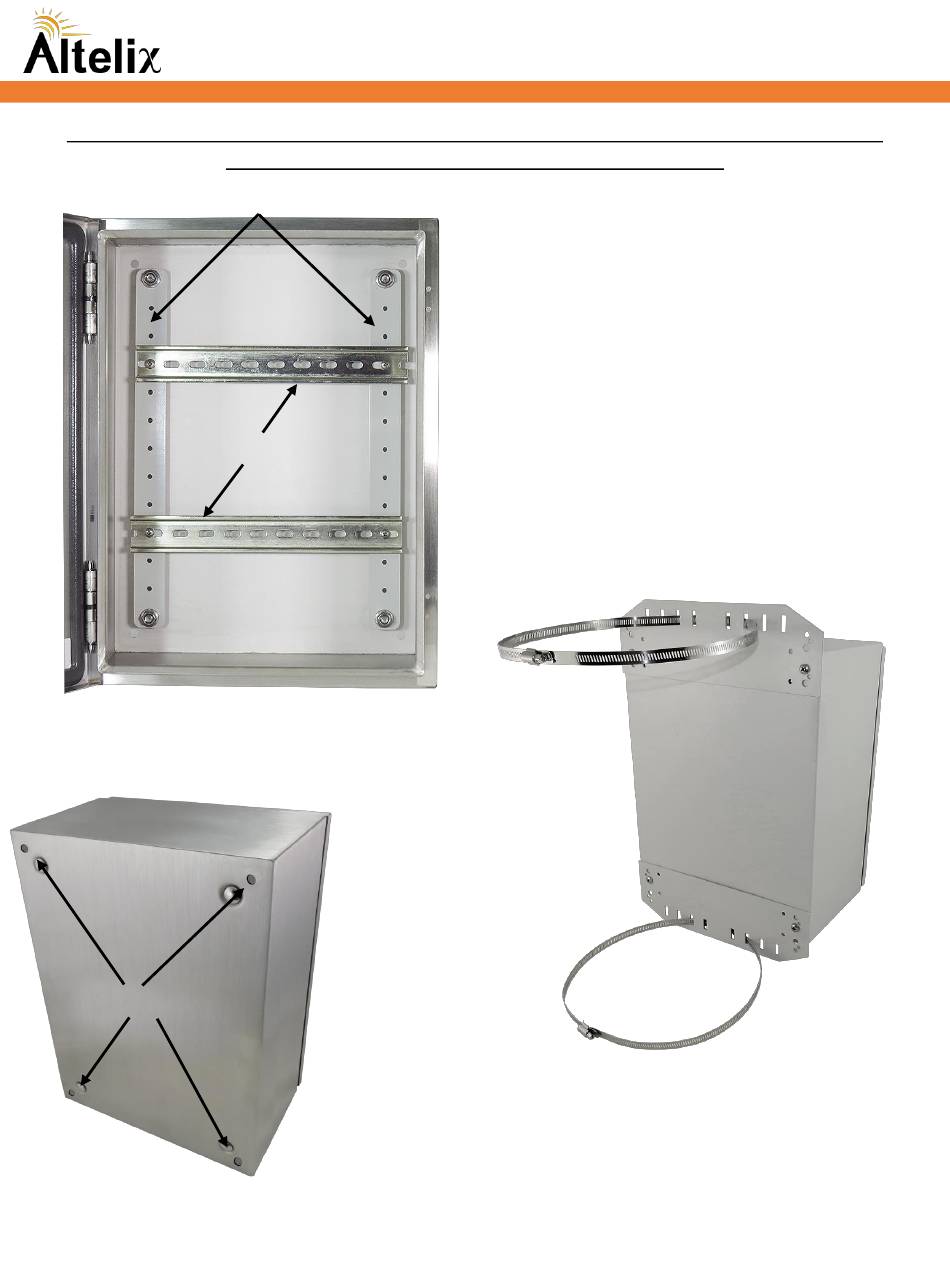

DIN Rail Mounting Brackets

Enclosure Interior

Mounting:

For wall mounting (4) 5/16" (8mm) diameter holes
are provided on the rear of the enclosure.
Mounting Holes
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0112 Rev B 07/08/19
INSTALLED BY A TRAINED PROFESSIONAL INSTALLER.
35mm DIN Rails
NX161206-DIN & NX161208-DIN
Installation Guide
Step 1:
Install the (2) DIN Rail Mounting Brackets onto
the (4) threaded posts as shown. Then secure
using the (4) serrated nuts included in the kit.
Step 2:
The (2) 35mm DIN Rails can now be attached to
any of the 11 locations in the DIN Rail Mounting
Brackets using the supplied (4) screws as shown.
For pole mounting, the optional NMKS-S300-08 &
NMKX-S300-08 pole mount kits are available
from Altelix.
