Altelix NS242412VFA1C-RV4U Installation Manual

WARNING: READ ALL INSTRUCTION BEFORE USE. THIS ENCLOSURE IS DESIGNED TO BE

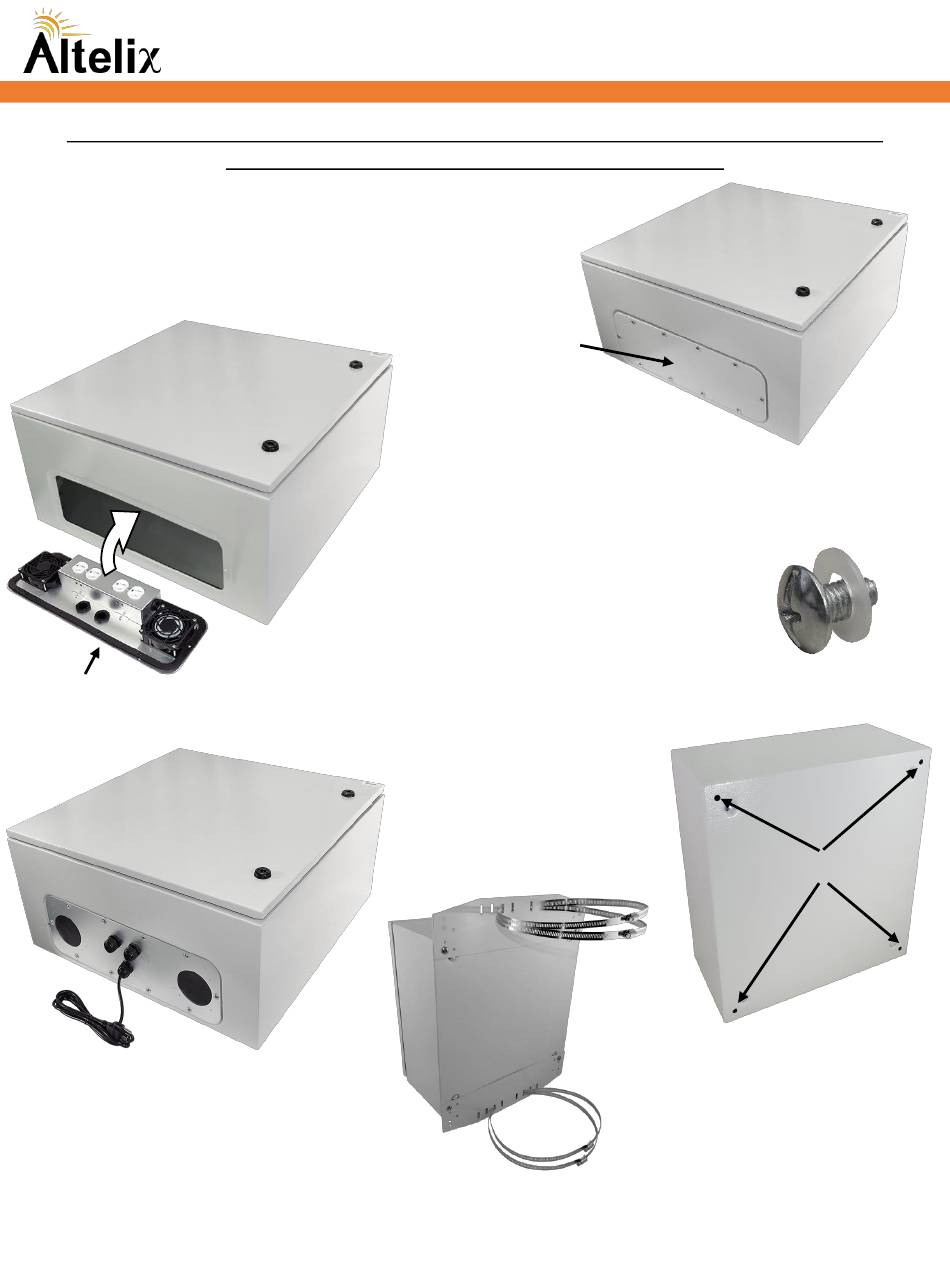

Step 1:
Remove the blank access panel located on the
bottom of the enclosure.
Power/Fan Module
with Gasket
Enclosure with
Power/Fan Module Installed
Altelix LLC USA: 866-660-WIFI (9434) International: +1 561-660-9434 sales@altelix.com www.altelix.com
Copyright (C) 2017 Altelix LLC. All rights reserved. Altelix and the Altelix logo are Trademarks and/or Registered Trademarks of Altelix LLC.
Specifications are subject to change without notice. See www.altelix.com for most current information
IS0143 Rev A 10/15/19
INSTALLED BY A TRAINED PROFESSIONAL INSTALLER.
Step 2:
Position the included gasket onto the Power/Fan
module as shown. For proper seal, ensure the
holes in gasket are aligned with mounting holes in
module panel.
Step 3:
Secure
enclosure using supplied hardware.
To ensure proper seal, use the nylon
washers included with hardware.

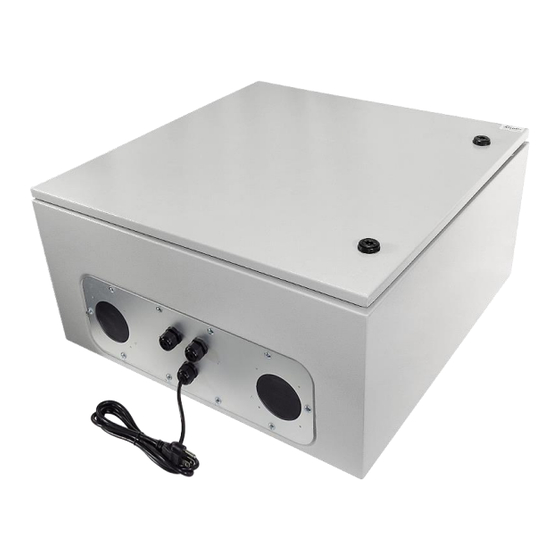

NS242412VFA1C-RV4U Enclosure
Installation Guide
Access Panel
Power/Fan

Mounting:

For wall mounting (4) 5/16"
(8mm) diameter holes are
provided on the rear of the
enclosure.
module to
Mounting Screw
with Nylon Washer
Mounting Holes
For pole mounting, optional
NMKS-S Series pole mount
kits are available from
Altelix.
