EverFocus EMD335 User Manual

EverFocus EMD335 User Manual

Outdoor ip66 mobile ir mini ball camera. 720tvl high resolution

Advertisement

Quick Links

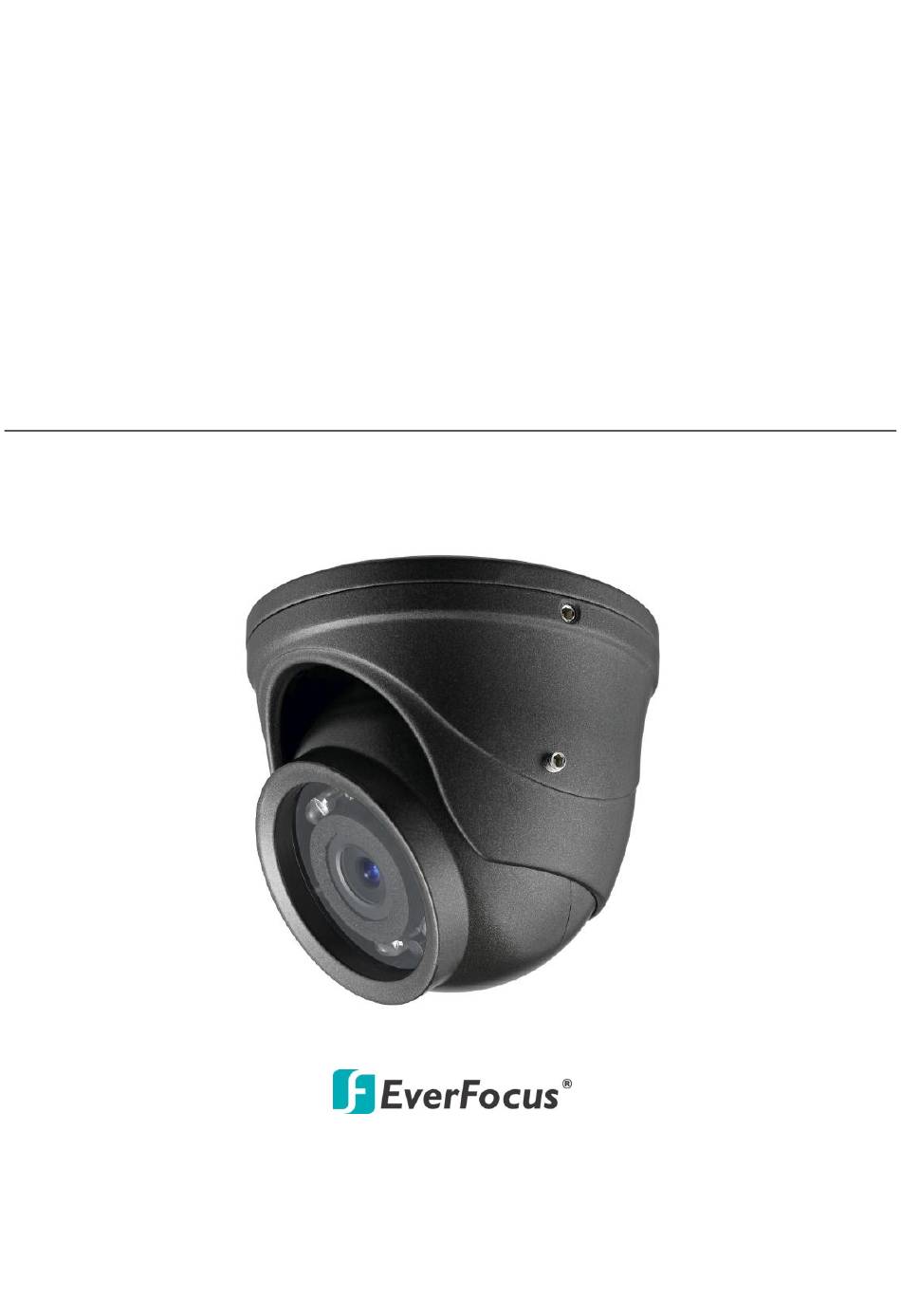

EMD335
720TVL High Resolution
Outdoor IP66 Mobile IR Mini Ball Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: June, 2014

Advertisement

loading
Need help?

Need help?

Do you have a question about the EMD335 and is the answer not in the manual?

Questions and answers

Summary of Contents for EverFocus EMD335

  • Page 1 EMD335 720TVL High Resolution Outdoor IP66 Mobile IR Mini Ball Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: June, 2014...
  • Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
  • Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 4: Table Of Contents

    Contents 1. INTRODUCTION ....................5 ........................5 ACKING ........................... 5 EATURES 2. CABLE DESCRIPTION ..................6 3. INSTALLATION ....................7 .................... 7 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU ............10 5. SPECIFICATIONS.................... 13...
  • Page 5: Introduction

    IR enhanced images in low light with guaranteed ZERO ghosting. The EMD335 with its 3 Axis rotation design allows wall or ceiling mounting flexibility in an IP66 weather resistant. UTC function support OSD menu adjustment, it’s convenient and quite easy for user.
  • Page 6: Cable Description

    EMD335 Outdoor Mobile IR Mini Ball Camera Compact size for discreet surveillance  The flexible angle viewing with its 3 Axis rotation design allows wall or ceiling mounting  2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source.
  • Page 7: Installation

    EMD335 Outdoor Mobile IR Mini Ball Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the template plate on the position where you want to attach the camera, drill three holes on the template plate and insert the supplied three anchors.
  • Page 8 EMD335 Outdoor Mobile IR Mini Ball Camera Screw the camera base plate to the wall / ceiling using the supplied three screws. Screw the camera body back to base plate with supplied hexagon wrench , particularly noted the two ways on cable wiring as following illustration:...
  • Page 9 EMD335 Outdoor Mobile IR Mini Ball Camera Connect the camera to the 12VDC power source using the supplied DC power pigtail cable or power adapter, while connecting the video-out cable to the monitor. After selected the desired angle, then tighten the two screws using the supplied hexagon wrench , which close to base plate and one on each side of camera.
  • Page 10: Configuration In The Osd Menu

    EMD335 Outdoor Mobile IR Mini Ball Camera If necessary, you could connect the UTC controller ( as shown in figure 1) and complete the OSD setup. ( The one port connect to the camera via using the BNC Cable and the...
  • Page 11 EMD335 Outdoor Mobile IR Mini Ball Camera Mode Shut + AGC 1/60*, 1/100, 1/250, 1/500, 1/1000, 1/2000, Shutter Manual 1/4000, 1/10000 6.00*, 12.00, 18.00, 24.00, 30.00, 36.00, 42.00, 44.80 Speed 0-255 (default=239) Delay CNT 0-255 (default=16) ATW* ATW Frame x0.50, x1.0, x1.5, x2.0*...
  • Page 12 EMD335 Outdoor Mobile IR Mini Ball Camera Left / Right 0-468 (default=0) Color 1-8 (default=1) Transparent 0.00, 0.50, 0.75, 1.00* Mosaic Off */ On EXT1* EXT2 Burst Off*/On Delay CNT 0-255 (default=003) Auto Day→Night 0-255 (default=001) Day/Night Night→Day 0-255 (default=003)
  • Page 13: Specifications

    EMD335 Outdoor Mobile IR Mini Ball Camera 5. Specifications EMD335 Pickup Device 1/3” Sony Exview HAD II 960H High Sensitivity Interline CCD Video Format NTSC or PAL Picture Elements 1020 x 508 (NTSC) / 1020 x 596 (PAL) Effective Pixels...
  • Page 14 EMD335 Outdoor Mobile IR Mini Ball Camera Certifications CE / FCC / RoHS Specifications and designs are subject to change for improving the functionality of this product without notice.
  • Page 15 EMD335 Outdoor Mobile IR Mini Ball Camera EverFocus Electronics Corp. EverFocus Taiwan: EverFocus Europe - Germany: 12F, No.79, Sec. 1, Shin-Tai Wu Road, Albert-Einstein-Strasse 1, D-46446 Hsi-Chih, Taipei, Taiwan Emmerich, Germany TEL: +886 2 2698 2334 TEL: +49 2822 93940...
