EMW990F

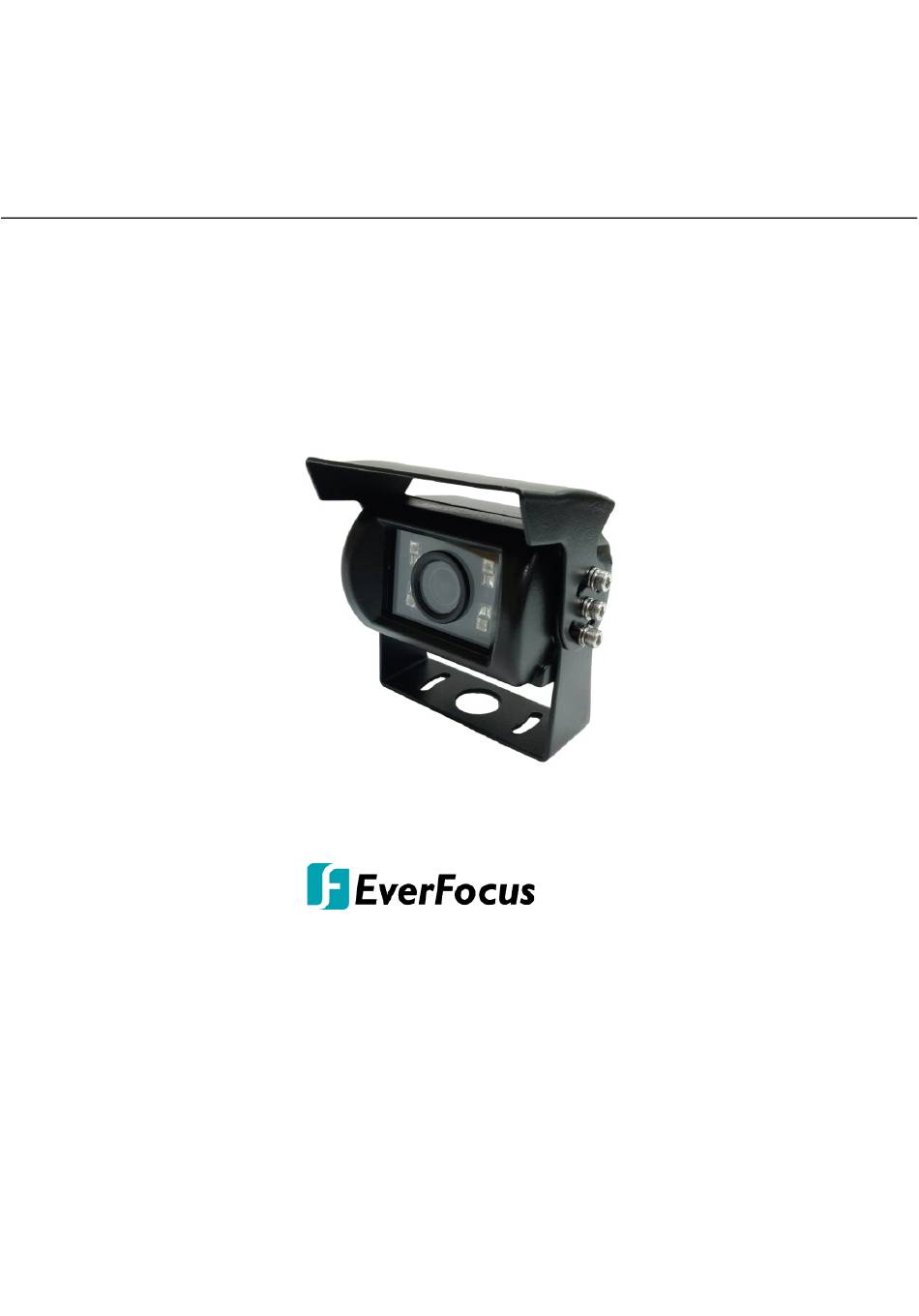

1080p FHD Mobile IR Mini Wedge Camera
User's Manual
Copyright © EverFocus Electronics Corp,
Release Date: December, 2018
All the images including product pictures or screen shots in this document are for example only. The images may
vary depending on the product and software version. Information contained in this document is subject to change
without notice.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EverFocus EMW990F
Summary of Contents for EverFocus EMW990F
- Page 1 EMW990F 1080p FHD Mobile IR Mini Wedge Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: December, 2018 All the images including product pictures or screen shots in this document are for example only. The images may vary depending on the product and software version. Information contained in this document is subject to change...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation.
-
Page 3: Safety Notice
Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 4 The EMW990F supports both NTSC and PAL scanning systems and is IP66 certified. The 4 IR LEDs enable night vision up to 10m (~33ft.). EMW990F is the ideal solution for your mobile surveillance needs.
-
Page 5: Installation
1.4 Dimensions 75.5mm / 3" 68.8mm / 2.7" 3. Installation Loosen to adjust Sunshield / Camera Angle Loosen to adjust Bracket Angle Loosen to adjust Sunshield / Camera Angle Screw Hole Power Cable Video Output Cable Optionally thread the cable through this hole Screw Hole 1. -
Page 6: Configuration In The Osd Menu
4. Configuration in the OSD Menu You can configure camera settings in the OSD menu from DVR end. OSD menu structure is listed on the below table: Main Sub Menu Sub Menu / Function Lens Manual NTSC: 1/30, 1/60, FLK, 1/240, 1/480, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, X2, X4, X6, X8, X10, X15, X20, X25, X30, Auto Shutter PAL: 1/25, 1/50, FLK, 1/200, 1/400, 1/1000, 1/2000, 1/5000,... - Page 7 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(CDS) 1-255 D→N(Delay) 0-60 Auto N→D(CDS 1-255 Day & N→D(Delay) 0-60 Night Color Burst Off/On IR Smart Level 0-15 Area Position, Size,↑,↓,→,← 2DNR Middle/Low/Off/High 3DNR Middle/Low/Off/High Cam Title 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ▶→ ←↑↓()ˉ-_▊/=&:~,. Freeze Off/On D-effect Mirror Off, Mirror, V-flip, Rotate Neg.
- Page 8 White, Black, Red, Blue, CYAN, Yellow, Color Green, User Trans 1.00,0.75,0.50,0.25 Default ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/KOR/ Language JPN/HEB/ARB Live DPC AGC level 0-255 Level 0-100 Pos/Size Position, Size,↑,↓,→,← Start Close the iris then press DPC View Off/On White DPC Level 0-60 Defect 0-14 x2, x4, x6, x8,x10, x15, Sens-up x20, x25, x30...
-
Page 9: Specification
5. Specification Model Name EMW990F Pickup Device 1080p Sony Starvis CMOS sensor Video Format NTSC / PAL Effective Pixels 1920 (H) x 1080 (V) Scanning System Progressive Scan Sensitivity 0 Lux with IR On Electronic Shutter Auto / Manual (x30 ~ 1/50,000) Gamma Correction 0.45 ~ 100... - Page 10 91010, USA TEL: +1 626 844 8888 FAX: +1 626 844 8838 www.everfocus.com sales@everfocus.com Ihr EverFocus Produkt wurde entwickelt Your EverFocus product is designed und hergestellt mit qualitativ and manufactured with high quality hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
