EverFocus EMD935F User Manual
1080p full high definition outdoor ip68 mobile ir mini ball camera
Hide thumbs
Also See for EMD935F:
- User manual (15 pages) ,
- User manual (15 pages) ,
- User manual (7 pages)
Related Manuals for EverFocus EMD935F
Summary of Contents for EverFocus EMD935F

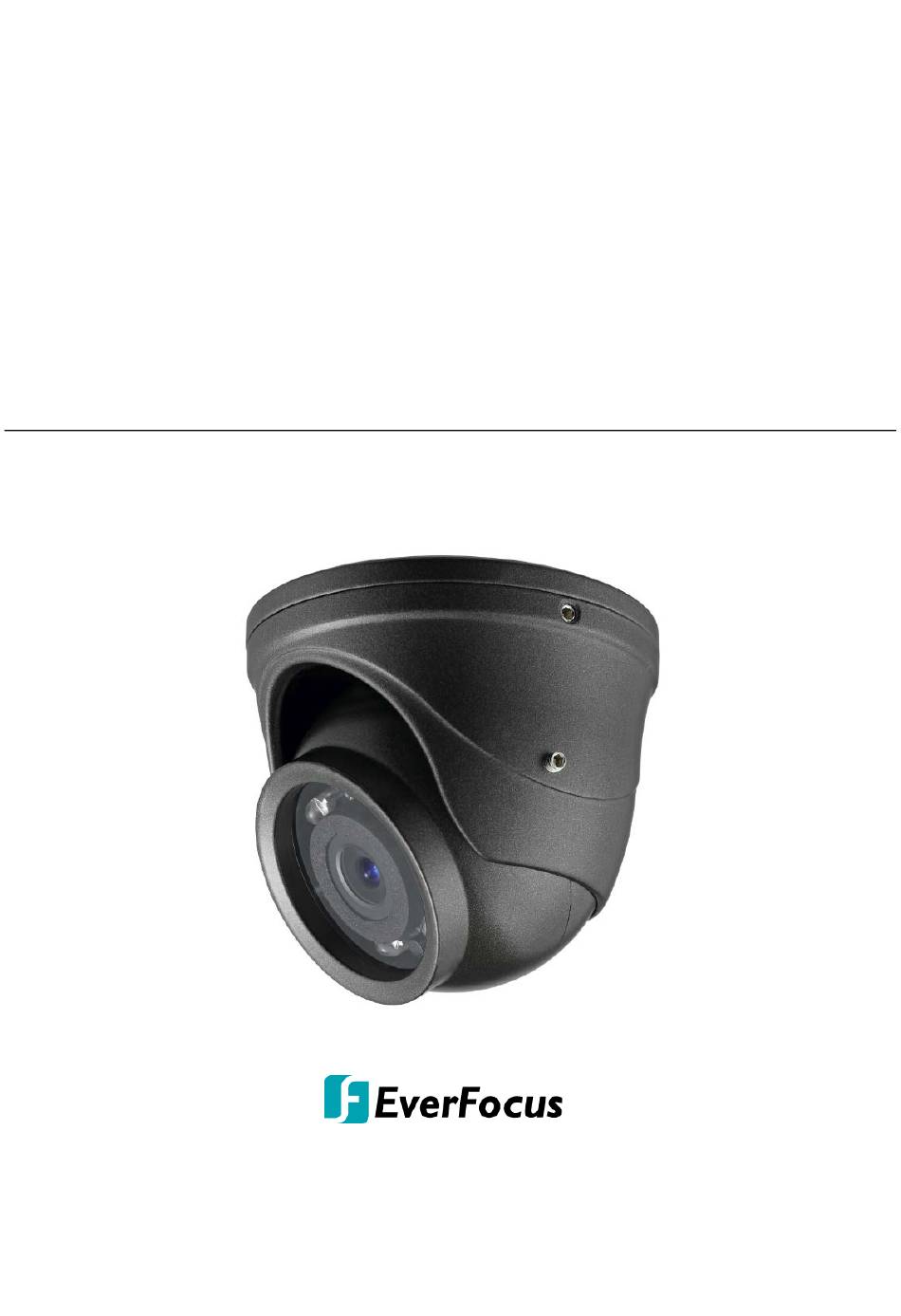

- Page 1 EMD935F 1080p Full High Definition Outdoor IP68 Mobile IR Mini Ball Camera User’s Manual Copyright © EverFocus Electronics Corp, Release Date: September, 2018...
- Page 2 Precautions Do not install the camera near electric or magnetic fields. Install the camera away from TV/radio transmitters, magnets, electric motors, transformers and audio speakers since the electromagnetic fields generated from these devices may distort the video image or otherwise interfere with camera operation. Never disassemble the camera beyond the recommendations in this manual nor introduce materials other than those recommended herein.
- Page 3 Safety Notice Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 4: Table Of Contents
Contents 1. INTRODUCTION ....................5 ........................5 ACKING ........................... 5 EATURES 2. CABLE DESCRIPTION ..................6 3. INSTALLATION ....................7 .................... 7 NSTALLATION AND DJUSTMENT 4. CONFIGURATION IN THE OSD MENU ............10 5. SPECIFICATIONS.................... 14... -
Page 5: Introduction
The EMD935F with its 3 Axis rotation design allows wall or ceiling mounting flexibility in an IP68 weather resistant. The EMD935F comes with 6 IR LEDs, supporting up to 10m (~33ft.) IR distance in night vision, also can work in both indoor and outdoor environments. -
Page 6: Cable Description
EMD935F Outdoor Mobile IR Mini Ball Camera 2. Cable Description Name Descriptions Power Cable Connects to a 12VDC power source. 1080p, 720p and 960H output, using a 75 Ohm BNC-type Video Output coaxial cable. Optional power pigtail cable. The red wire is positive (+);... -
Page 7: Installation
EMD935F Outdoor Mobile IR Mini Ball Camera 3. Installation 3.1 Installation and Adjustment For Ceiling Mount / Wall Mount users: Stick the template plate on the position where you want to attach the camera, drill three holes on the template plate and insert the supplied three anchors. - Page 8 EMD935F Outdoor Mobile IR Mini Ball Camera Screw the camera base plate to the wall / ceiling using the supplied three screws. Screw the camera body back to base plate with supplied hexagon wrench , particularly noted the two ways on cable wiring as following illustration:...
- Page 9 EMD935F Outdoor Mobile IR Mini Ball Camera Connect the camera to the 12VDC power source using the supplied DC power pigtail cable or power adapter, while connecting the video-out cable to the monitor. After selected the desired angle, then tighten the two screws using the supplied hexagon wrench , which close to base plate and one on each side of camera.
-
Page 10: Configuration In The Osd Menu
EMD935F Outdoor Mobile IR Mini Ball Camera 4. Configuration in the OSD Menu You can configure camera settings in the OSD menu from DVR end. For details on the OSD menu structure as below: Main Sub Menu Sub Menu / Function... - Page 11 EMD935F Outdoor Mobile IR Mini Ball Camera Special 2 * Special 1 * Blue 0-100 Manual 0-100 D→N(Delay) 0-60 N→D(Delay) 0-60 D→N(AGC) 1-255 D→N(Delay) 0-60 Auto 1-255 N→D(AGC) Day & N→D(Delay) 0-60 Night Color Burst Off/On Level 0-15 IR Smart Position, Size,↑,↓,...
- Page 12 EMD935F Outdoor Mobile IR Mini Ball Camera Time 1-15 Default Select Area1,Area2,Area3,Area4 Position, Size,↑,↓, Color →,← Display Position, Size,↑,↓, Mosaic →,← Privacy Position, Size,↑,↓, →,← White, Black, Red, Blue, CYAN, Color Yellow, Green 1.00,0.75,0.50, Trans 0.25 Default Language ENG/CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR Live DPC...
- Page 13 EMD935F Outdoor Mobile IR Mini Ball Camera Baud Rate 2400,4800,9600,19200 ,38400 Level 0-10 Sharpness Auto Start AGC 0-255 End AGC 0-255 Black Level 0-60 Blue Gain 0-100 Red Gain 0-255 Adjust User,0.45,0.50,0.55,0.60,0.65,0.70,0. Monitor Gamma 75,0.80,0.85,0.90, 0.95,1.00 Blue Gain 0-100 Red Gain...
-
Page 14: Specifications
EMD935F Outdoor Mobile IR Mini Ball Camera 5. Specifications EMD935F Pickup Device 1/2.9" Sony 2.24M pixels CMOS Video Format NTSC and PAL(can be switched via OSD) Effective Pixels 1920 (H)x1080(V) Scanning System Progressive Scan Sensitivity 0 lux with IR on... - Page 15 TEL: +1 626 844 8888 FAX: +1 626 844 8838 www.everfocus.com sales@everfocus.com Ihr EverFocus Produkt wurde Your EverFocus product is designed and entwickelt und hergestellt mit manufactured with high quality materials qualitativ hochwertigen Materialien and components which can be recycled und Komponenten, die recycelt und and reused.
