Connection; Outdoor Antenna Connection; Other Connections - Telefunken TF-LED32S13 Instruction Manual

Installation

Connection

Antenna cable connector

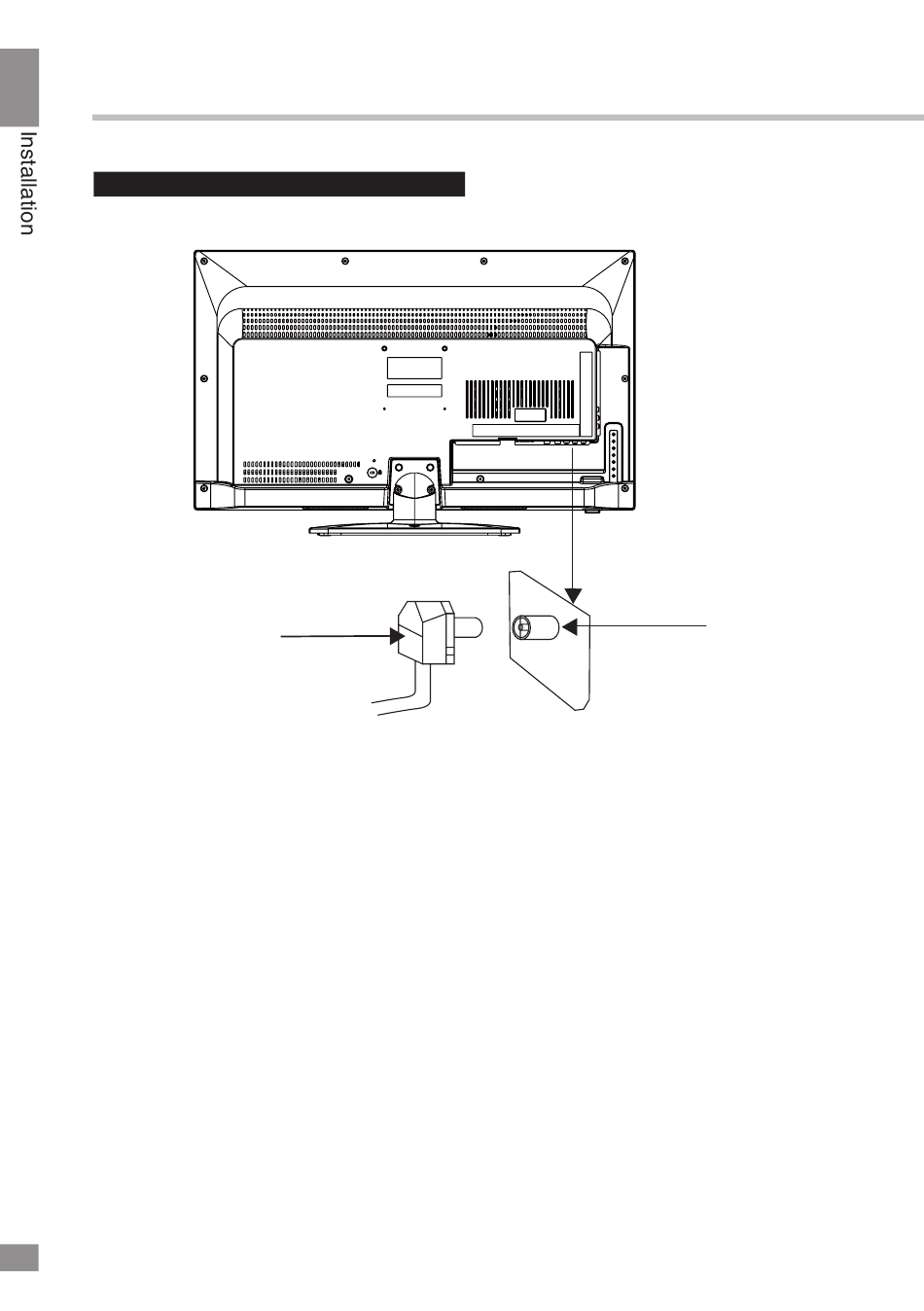

Outdoor Antenna Connection

Use 75Ω coaxial cable plug or 300-75Ω
impedance converter to plug in antenna input
terminal on the rear of the unit casing.

Other connections

• Connect the audio sources (Including
DVD, VCDR, CAMCORDER and PC) to the
proper Audio input jacks 'Left' and 'Right'.
• Connect the video source to the video (Y/
Video) jack using the RCA cable.
• Component input Y/Pb/Pr is intended
to receive component video signal from the
external device. To receive audio signal for
component video, please use Left and Right
audio inputs of this unit.
• Connect the power cord to the power
socket of this unit.
• When using the LED as a computer
screen, connect the PC to the VGA jack from
6
75 Ohm co-axis cable
TVRF antenna jack
the monitor using the VGA cable (not included).
• This unit has PC audio in jack. Connect
this jack to PC main unit with related audio
cable in PC mode and adjust the volume to
what you want.
• If the video source has a HDMI output
jack, you can connect the signal to the monitor
by the HDMI cable (not included). Use the
HDMI2(MHL) input to connect your smartphone
via a special cable to see the digital content on
the TV screen.
• S/PDIF output is intended for transmitting
multi-channel sound to an external decoder
(e.g. in 5.1-CH format). 75 Ohm coaxial cable
should be used for connection
• Connect your headphones or earphones
(not included) to the headphone socket of
this unit. When earphones are connected, the
sound output through the built-in speakers of
this unit is mute.
