Lefroy Brooks C1-1110 Installation, Operating, & Maintenance Instructions

Cross handle basin bridge mixer with 6 1/2" spout
Hide thumbs Also See for C1-1110:

Advertisement

Table of Contents

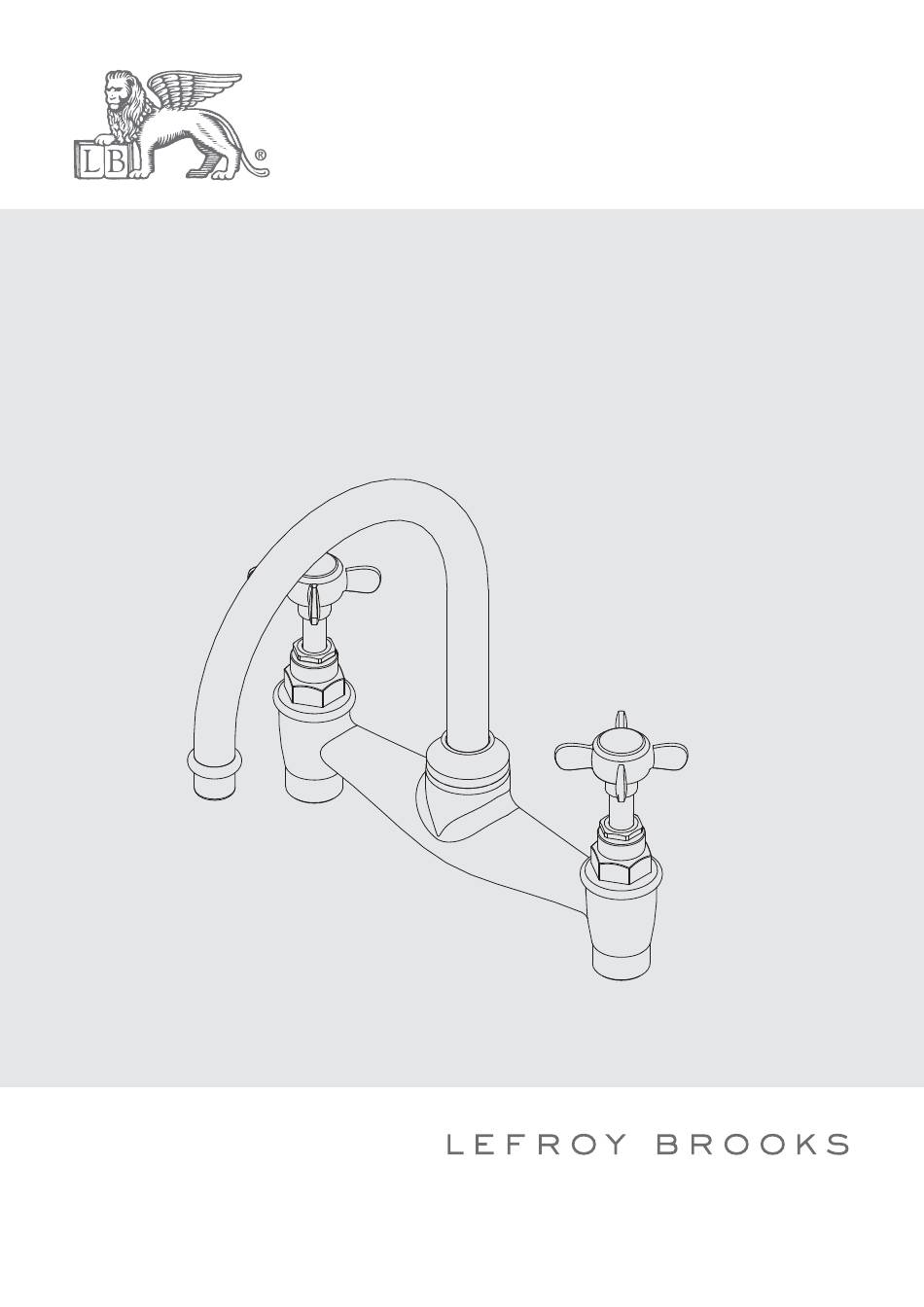

INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS
C1-1110 (LB 9007)
CROSS HANDLE BASIN BRIDGE MIXER WITH 6 ½" SPOUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1-1110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lefroy Brooks C1-1110

Summary of Contents for Lefroy Brooks C1-1110

  • Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS C1-1110 (LB 9007) CROSS HANDLE BASIN BRIDGE MIXER WITH 6 ½" SPOUT...

  • Page 2: Table Of Contents

    Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee...

  • Page 3: Dimensions

    Dimensions in Inches (& Millimetres) 10 5/16" (261.36mm) 7 7/8" (200mm) Ø3/4" (Ø19mm) Ø1" (Ø25mm) 6 1/2" Ø7/16" (165mm) Ø1 1/2" (Ø11mm) (Ø38.3mm) 2-3/4-14NPSM-2A Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.

  • Page 4: Instal Ation Procedure

    Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the faucet onto either the return bends or the cranked legs as chosen. Attach the legs to the faucet but do not screw the nut up tightly yet.
  • Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After placing the legs in the right position, fix the legs with nuts from underneath the deck.

  • Page 6: Parts List

    Parts List Exploded view Ceramic indices (C) (129312C) O-ring (004005N) Handle (029721-T) Clip (012060) O-ring (048085N) Adaptor (018227) Canopy (018253) O-ring (063066N) Clip (012255) Spout assembly (139863W) Stem extension (110461) Oil-seal (010519N) Washer (013570) Aerator insert (553661N) Screw (008670) Aerator housing (305849N-54) Cartridge (507907W) Ceramic indices (H) (129312H) Screw (008252)

  • Page 7: Fault Finder

    Fault Finder Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement. Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. Aerator leaks or has an inconsistent Aerator is dirty or misfitted.

  • Page 8: Safety Tips, Care And Maintenance

    Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation.

  • Page 9: Guarantee

    Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges.
  • Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
