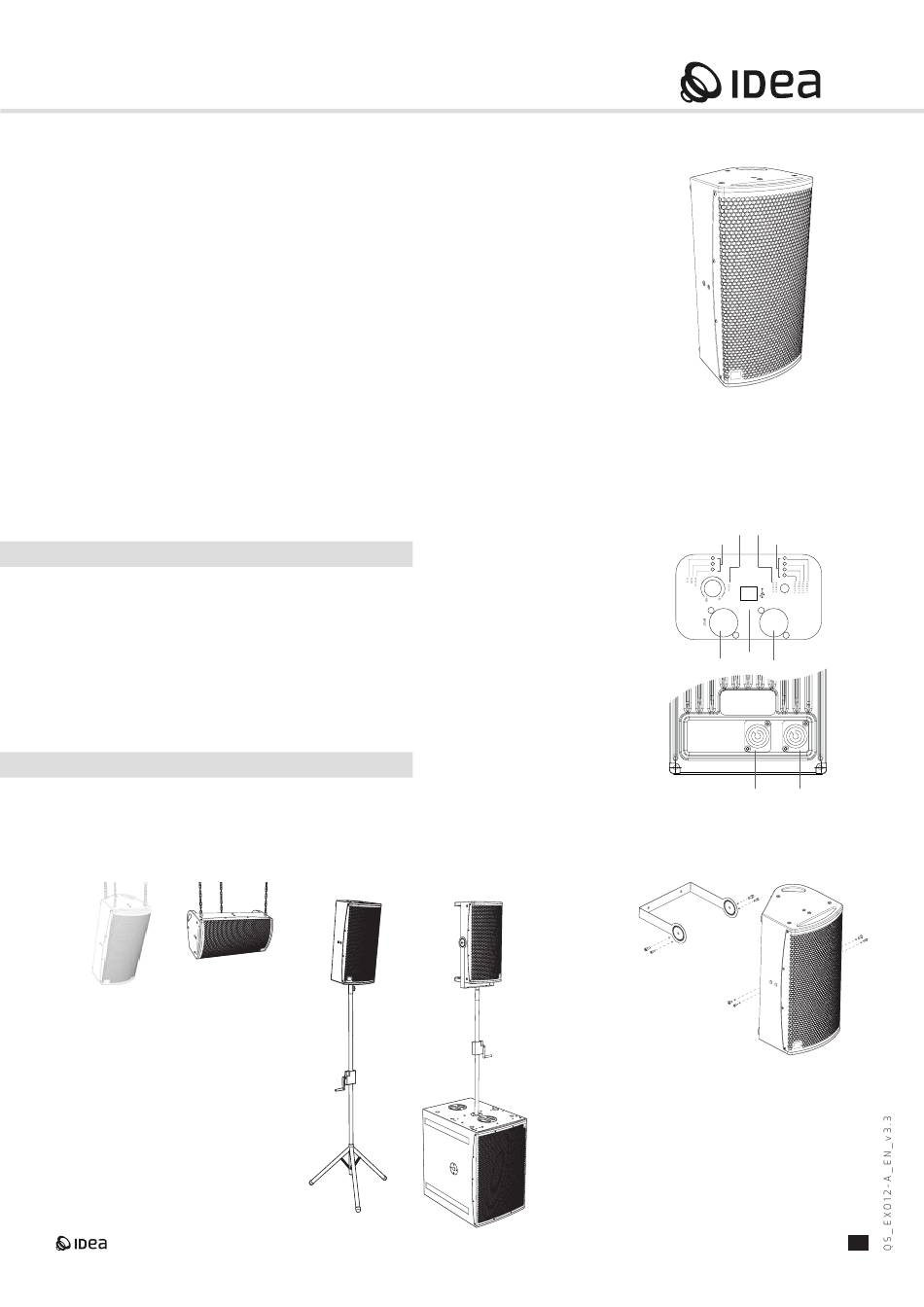

Idea EXO12-A Quick Start Manual

EXO12-A
2-Way Active Multipurpose Monitor

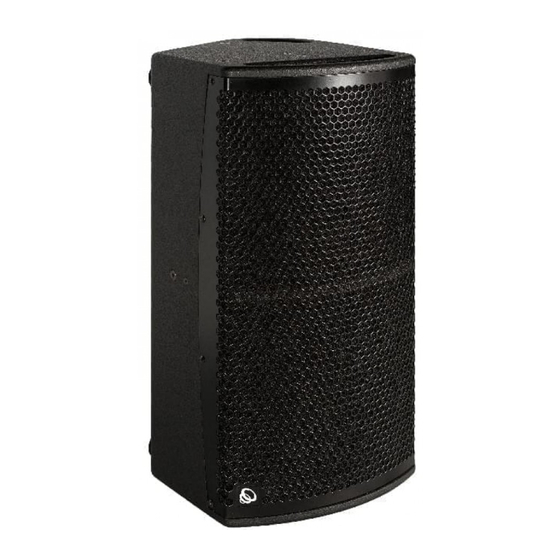

EXO12-A is a versatile, high-performance full range 2-way active wedged monitor conceived
for professional environments where portable sound reinforcement is required, delivering a
superior audio reproduction in a very compact, multipurpose format.
EXO12-A HF assembly couples a 3˝compression driver into common EXO Series birch plywood
axisymmetric horn with IDEA's proprietary design and a premium European, dedicated-design
passive crossover filter provides a smooth, natural transition intro the MLF 12˝ woofer and
summing up into a full-range superior audio playback along the whole usable frequency
range from 20 kHz down to 55 Hz.
Like all IDEA models, EXO12-A is built with 15 and 18 mm birch plywood, IDEA's Aquaforce
waterproof paint coating and a high-quality steel grille, creating a rugged, durable and stylish
loudspeaker. The 60° wedged cabinet allows not only to be used as FOH main system in small
venues, bars and AV applications and as a stage monitor but to seamlessly fit into any wall mount fixed installation. EXO12-A
integrates a bottom Pole Mount 35 mm socket to be configured on BASSO Series subwoofers for portable sound reinforcement
and medium performance venues and clubs. The dedicated U-bracket and ten threaded M8 inserts allow for all vertical and
horizontal U-bracket positions both for wall and ceiling fixed installations as well as to be precisely oriented in pole mounted
configurations.

DSP/AMP POWER MODULE

EXO12-A integrates a Class-D 1,2 kW (@ 4Ω) power module and 24-bit DSP with 4
selectable presets. This high efficiency, low consumption power module features
PFC (Power Factor Correction) for worldwide operation and error proof connection
to mains voltage. The rear panel features a rotary gain control, balanced audio
input and output XLR and PowerCON connections, led activity indicators and a select
pushbutton to toggle between the 4 preloaded presets.

INSTALLATION ACCESSORIES

EXO12 is fitted with 10 threaded M8 inserts for hung permanent installations
as well as bottom 36 mm pole-mount socket that serves for both pole mount
configurations onto a BASSO Series subwoofer.
Examples showing
EXO12 in different
setups and
configurations
Quick Start Guide
Gain level knob Preset Select toggle
Activity leds Active Preset
Signal OUT Signal IN
USB Port
Balanced audio XLR Balanced audio XLR
Mains OUT Mains IN
UB-E12-V
Optional Wall-Mount Accessory
The optional U-Bracket accessory for
EXO12 wall-mount installations allows
for different vertical angulations. FIt the
M8 bolts, choose the proper vertical
angle and lock the position with a M6
bolt per side.
1
