Idea Bass-Reflex BASSO10i Quick Start Manual

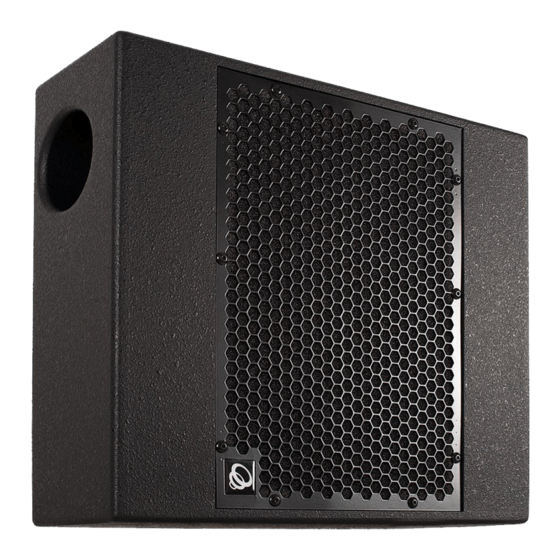

BASSO10i
10˝ Bass-Reflex Wall-Mount Subwoofer
BASSO10i is a very compact 10" subwoofer that delivers serious SPL levels
for installations that require professional sound reinforcement in spaces
where integration and size are key requirements.
The 10˝ low-frequency transducer allows this compact, powerful box
to deliver high-quality audio signal with maximum electro-acoustical
efficiency and excellent LF performance.
This compact form-factor cabinet measures 145mm deep allowing for
unobtrusive, discreet integration into any location while providing excellent
SPL for low frequency reinforcement for professional installations thanks
to the wall-mount accessory.
Built with the same durable, rugged construction as all BASSO family
members, BASSO10i cabinet is made with 15 mm birch plywood and
finished with exclusive IDEA Aquaforce textured painting. The 1.5 mm
weatherized steel grilled with Aquaforce coating and an internal foam
panel provides long-term protection under any ambient conditions.

INSTALLATION ACCESSORY

BASSO10i installation accessory allows for wall-mount fitting providing
a convenient, stylish integration in the venue.
Fit the U-Bracket to the wall, then fit the subwoofer using the top and
bottom M8 threaded bolts.

SYSTEM CONFIGURATION AND SETTINGS

BASSO10i is an installation subwoofer for distributed audio and fixed
installations that seamlessly integrates with IDEA LUA3i and LUA5i as
well as matching third-party sound reinforcement solutions.
The following are recommended amplifier adjustments. Dial the
most appropriate of these settings in the amplier according to the
application ans system configuration.
For precise phase and level adjustments when setting the mid/
high frequeny loudspeakers use dedicated measurement software
(SmaartLive and SatLive).
Quick Start Guide
The wall-mount U-bracket accesory allows for
convenient installation of BASSO10i
Preset LPF@180Hz:
HPF But24, 50Hz
LPF But 24, 185Hz
EQ1: 305Hz, Q=2, +10dB
EQ2: 497Hz, Q=3, -4dB
EQ3: 167Hz, Q=5, +3.5dB
Preset LPF@210Hz:
HPF But24, 50Hz
LPF But 24, 210Hz
EQ1: 305Hz, Q=2, +10dB
EQ2: 497Hz, Q=3, -4dB
EQ3: 182Hz, Q=5, +3.5dB
Preset LPF@225Hz:
HPF But24, 50Hz
LPF But 24, 240Hz
EQ1: 305Hz, Q=2, +10dB
EQ2: 497Hz, Q=3, -4dB
EQ3: 200Hz, Q=4, +2.5dB
