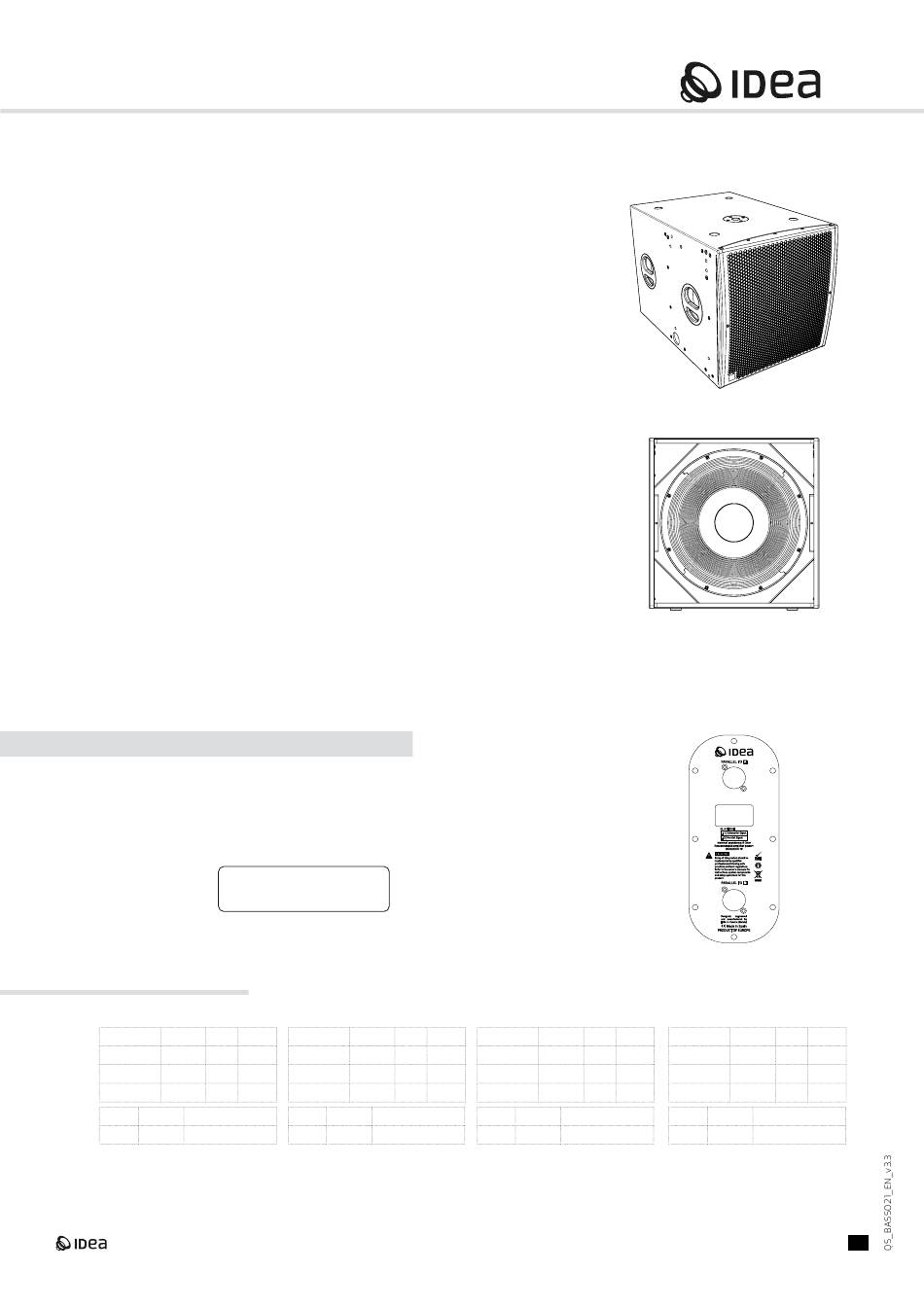

Idea BASSO21 Quick Start Manual

BASSO21
21˝ High Performance Direct Radiation Professional Subwoofer
Many key factors are to be considered when configuring the subwoofer section
of a loudspeaker system to perfectly match each application: size/weight,
logistic and operational setups, SPL needs, LF extension, cost limitations, as well
as sound engineer preferences (depending on different the type and size of the
event) or audio program characteristics and regional style taste for subwoofer
mixes.
BASSO Series models allow the user to choose the most adequate subwoofer
for any given situation from within a family of products with common finish,
design solutions and performance philosophy as well as shared rigging and
transport accessories.

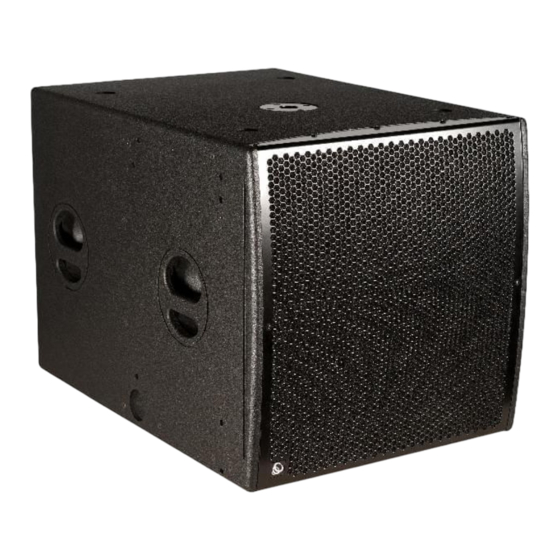

BASSO21 is a high-density single 18˝ direct radiation subwoofer that delivers
a very natural, linear response in the VLF range from 25 Hz up to 140 Hz.
Built with 18'' Premium birch plywood and fitted with a 2 mm steel grille,
this medium format medium format cabinet is finished with IDEA Aquaforce
weatherized coating to endure life on the road or stylishly integrate in any
installation.
BASSO21 seamlessly matches with 2-way loudspeakers in LUA and EXO Series
maximizing the high-density performance of these systems for a wide range
of portable, mobile and install professional sound reinforcement applications,
from high power club sound systems and medium size live music events to
rental and touring companies.
BASSO21 can be (on demand) served with BASSO rigging structures, allowing
for stacked and flown configurations.
SYSTEM CONFIGURATION AND SETTINGS
BASSO21 back panel is fitted with a pair of Neutrik NL-4 connectors in
parallel for straightforward, flexible installation setup.
NL-4 PINOUT:
+/- 1
+/- 2
RECOMMENDED SETTINGS
LPF@ 65 Hz
Type Freq Q Gain
Bell 50 Hz 3.0 -1.30
High Pass 20 Hz 0.8 --
Low Pass 80 Hz 0.8 --
HPF:
25 Hz Butterworth 24dB
LPF: 60 Hz Butterworth 24dB
Subwoofer Signal
Parallel Signal
LPF@ 80 Hz
Type Freq Q Gain
Bell 60 Hz 3.0 -2.20
High Pass 20 Hz 0.8 --
Low Pass 98 Hz 0.8 --
HPF:
25 Hz Butterworth 24dB
LPF: 70 Hz Butterworth 24dB
LPF@ 100 Hz
Type Freq Q Gain
Bell 66 Hz 2.5 -3.50
High Pass 20 Hz 0.8 --
Low Pass 120 Hz 0.8 --
HPF:
25 Hz Butterworth 24dB
LPF: 85 Hz Butterworth 24dB
QuickStart Guide
PARALLEL I/O A
BASSO21
NL- 4 PINOUT
Subwoofer Signal
Parallel Signal
Nominal Impedance: 8 Ohm
Recommended amplifier power:
1500/3000 W
Setup of this product should be
implemented by qualified
professionals following safe
practices and local regulations.
Refer to the owner's manuals for
instructions, system components
and setup operations for this
product.
PARALLEL I/O B
Designed, engineered
and manufactured by
IDEA in Cedeira (Galicia)
Made in Spain
PRODUCT OF EUROPE
LPF@ 120 Hz
Type Freq Q Gain
Bell 80 Hz 2.0 -4.50
High Pass 20 Hz 0.8 --
Low Pass 140 Hz 0.8 --
HPF:
25 Hz Butterworth 24dB
LPF: 101 Hz Butterworth 24dB
