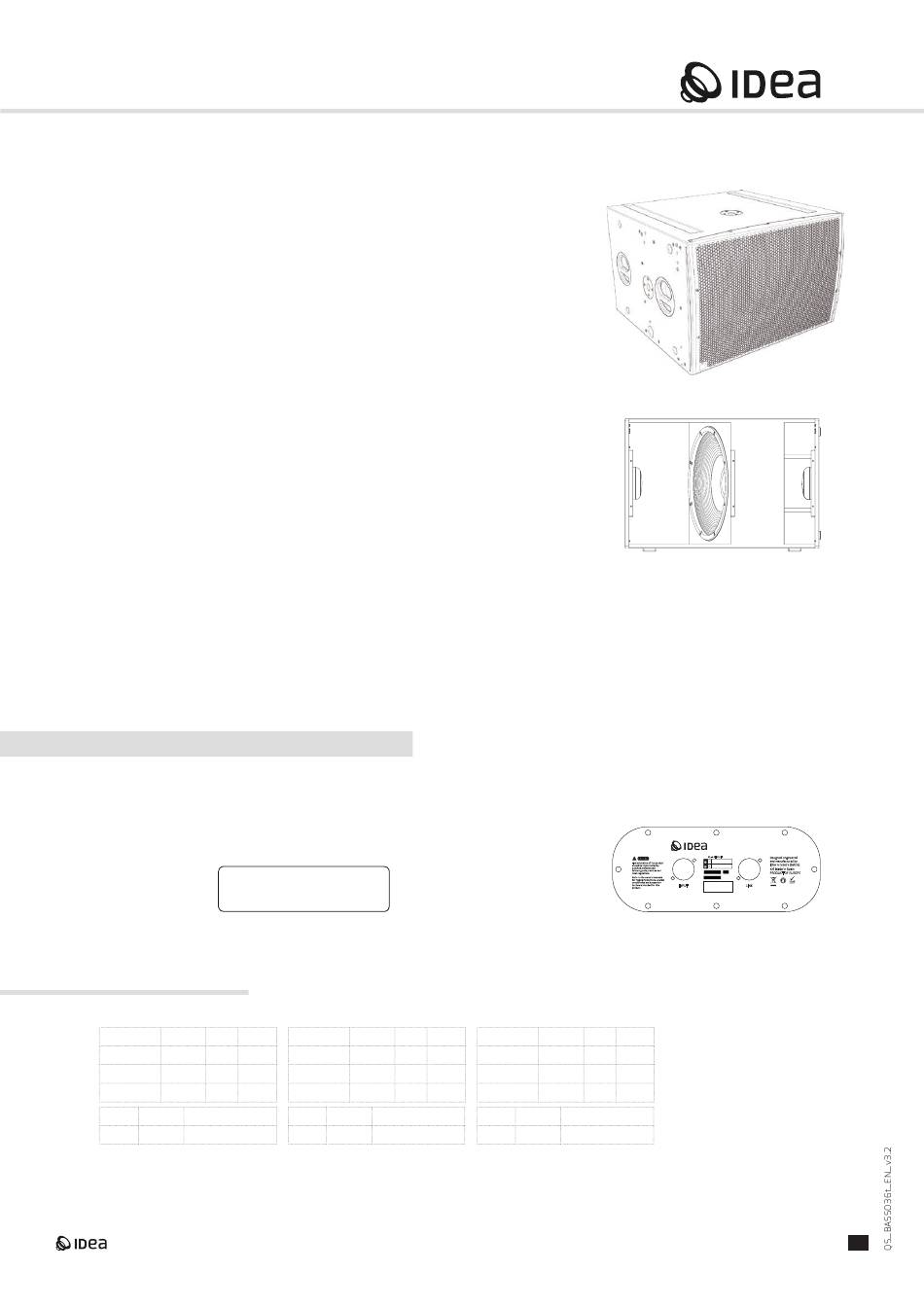

Idea BASSO36t Quick Start Manual

BASSO36t
Dual-18˝ Band-Pass Compact Multipurpose Subwoofer
BASSO Series models allow the user to choose the most adequate subwoofer for
any given situation from within a family of products with common finish, design
solutions and performance philosophy as well as shared rigging and transport
accessories.

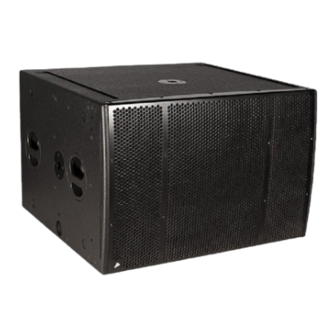

BASSO36t is compact Dual 18" multipurpose high output subwoofer for a very
wide range of configurations of both professional portable sound reinforcement,
touring and premium installations.
Like All IDea Loudspeakers BASSO36t is built with the necessary structural
strength and finish quality required for durable touring use. Its high quality 18 mm
birch plywood enclosure covered with IDEA Aquaforce custom paint solution and a
2 mm steel front grill will keep your equipment safe and brand new after hours of
heavy touring.
BASSO36t features four integrated handles and two 35 mm pole mount
sockets for vertical and horizontal set-ups. Optional wheels kit is also available.
BASSO36t is compatible with optional BASSO rigging frames for ground-stacked
configurations (see instructions for ground-stacked set-ups with BASSO rigging
frames).
SYSTEM CONFIGURATION AND SETTINGS
BASSO36t back panel is fitted with a pair of Neutrik NL-4 connectors in
parallel for straightforward, flexible installation setup.
NL-4 PINOUT:
+/- 1
+/- 2
RECOMMENDED SETTINGS
LPF@ 100 Hz
Type Freq Q Gain
Bell 129 Hz 9.0 -3.60
Bell 200 Hz 5.0 -1.50
Bell 85 Hz 5.0 2.00
HPF: 38 Hz Butterworth 18dB
LPF: 98 Hz Butterworth 24dB
Subwoofer Signal
Parallel Signal
LPF@ 120 Hz
Type Freq Q Gain
Bell 131 Hz 9.0 -2.80
Bell 200 Hz 4.0 -7.00
Bell 100 Hz 4.5 1.90
HPF: 38 Hz Butterworth 18dB
LPF: 120 Hz Butterworth 18dB
The installation of this product
should be implemented by
qualified professionals
following safe practices and
local regulations.
Refer to the owner's manuals
for rigging instructions, system
components and suspension
hardware intended for this
product.
LPF@ 150 Hz
Type Freq Q Gain
Bell 129 Hz 9.0 -3.00
Bell 200 Hz 5.0 -4.00
Bell 100 Hz 4.5 1.50
HPF: 38 Hz Butterworth 18dB
LPF: 160 Hz Butterworth 18dB
QuickStart Guide
BASSO36t
NL-4 PINOUT
Designed, engineered
and manufactured by
Subwoofer Signal
IDEA in Cedeira (Galicia)
Parallel Signal
Made in Spain
2500W RMS 4 Ω PRODUCT OF EUROPE
89 kg / 196 lbs
INPUT LINK
1
