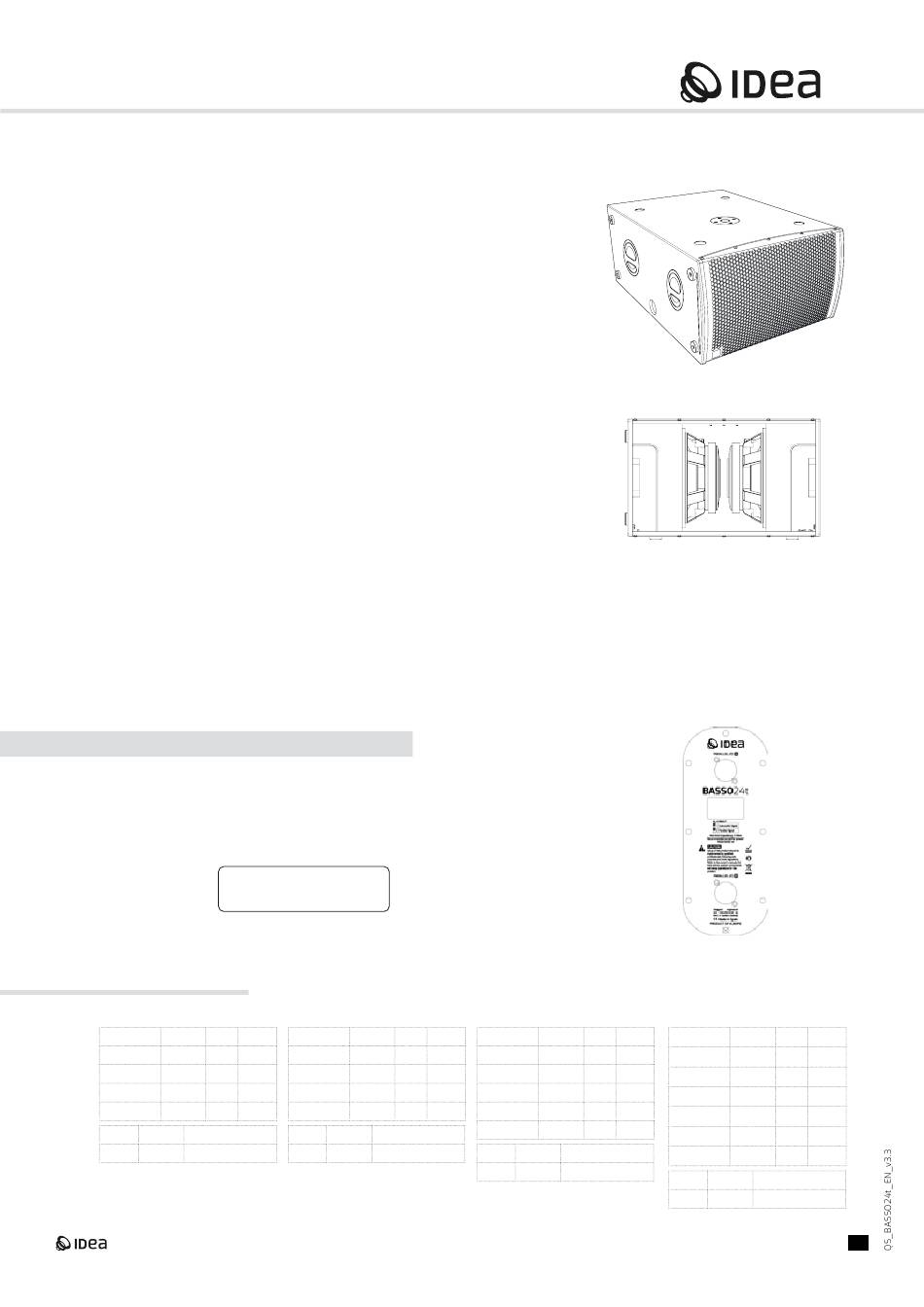

Idea BASSO24t Quick Start Manual

BASSO24t
Dual-12˝ Compact Band-Pass Multipurpose Subwoofer
Many key factors are to be considered when configuring the subwoofer
section of a loudspeaker system to perfectly match each application:
size/weight, logistic and operational setups, SPL needs, LF extension,
cost limitations, as well as sound engineer preferences (depending
on different the type and size of the event) or audio program
characteristics and regional style taste for subwoofer mixes.
BASSO Series models allow the user to choose the most adequate
subwoofer for any given situation from within a family of products with
common finish, design solutions and performance philosophy as well as
shared rigging and transport accessories.

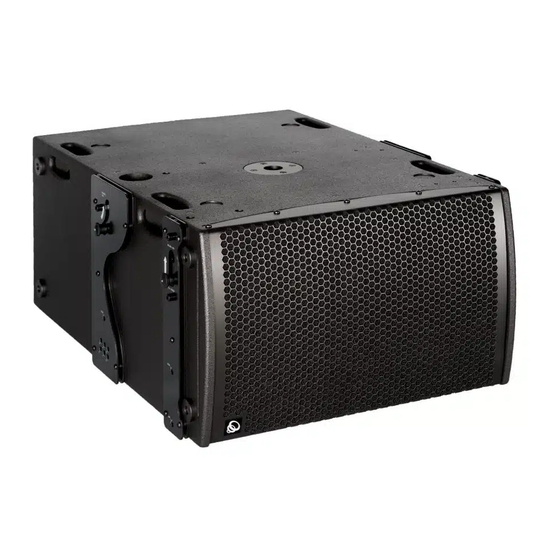

BASSO24t F400 is a dual 12" band-pass subwoofer with a very shallow-
form factor and excellent power-density that make this loudspeaker a
versatile tool for any small, unobtrusive installed sound reinforcement
and portable FOH applications to more powerful, medium-sized
configurations for Touring and Rental companies and theatre and club
installations.
SYSTEM CONFIGURATION AND SETTINGS
BASSO24t back panel is fitted with a pair of Neutrik NL-4 connectors in
parallel for straightforward, flexible installation setup.
NL-4 PINOUT:
+/- 1
+/- 2
RECOMMENDED SETTINGS
LPF@ 80 Hz
Type Freq Q Gain
Bell 166 Hz 7.0 -6.00
Bell 74 Hz 5.0 1.70
Bell 169 Hz 5.0 -4.30
Bell 63 Hz 14.0 -1.00
HPF: 26 Hz Butterworth 18dB
LPF: 76 Hz Butterworth 24dB
Subwoofer Signal
Parallel Signal
LPF@ 100 Hz
Type Freq Q Gain
Bell 166 Hz 7.0 -6.00
Bell 93 Hz 7.0 2.00
Bell 169 Hz 5.0 -4.30
Bell 63 Hz 13.0 -0.80
HPF: 26 Hz Butterworth 18dB
LPF: 93 Hz Butterworth 24dB
LPF@ 120 Hz
Type Freq Q Gain
Bell 166 Hz 7.0 -6.00
Bell 105 Hz 7.0 0.50
Bell 169 Hz 5.0 -4.30
Bell 63 Hz 13.0 -0.80
Bell 240 Hz 8.0 -8.00
HPF: 26 Hz Butterworth 18dB
LPF: 117 Hz Butterworth 24dB
QuickStart Guide
LPF@ 160 Hz
Type Freq Q Gain
Bell 166 Hz 6.0 -5.00
Bell 250 Hz 6.0 -11.00
Bell 124 Hz 6.0 -1.60
Bell 137 Hz 5.7 1.40
Bell 63 Hz 13.0 -0.80
Bell 250 Hz 4.0 -1.80
HPF: 26 Hz Butterworth 18dB
LPF:
165 Hz Butterworth 24dB
