BASSO24t-A F400
Dual-12˝ Compact Band-Pass Multipurpose Subwoofer
Many key factors are to be considered when configuring the subwoofer
section of a loudspeaker system to perfectly match each application:
size/weight, logistic and operational setups, SPL needs, LF extension,
cost limitations, as well as sound engineer preferences (depending
on different the type and size of the event) or audio program
characteristics and regional style taste for subwoofer mixes.
BASSO Series models allow the user to choose the most adequate
subwoofer for any given situation from within a family of products with
common finish, design solutions and performance philosophy as well as
shared rigging and transport accessories.

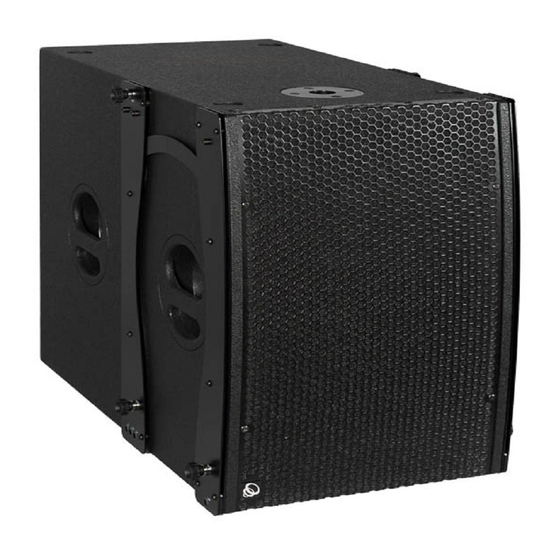

BASSO24t F400 is a dual 12" band-pass subwoofer with a very shallow-
form factor and excellent power-density that make this loudspeaker a
versatile tool for any small, unobtrusive installed sound reinforcement
and portable FOH applications to more powerful, medium-sized
configurations for Touring and Rental companies and theatre and club
installations.

DSP AND POWER MODULE

BASSO24t-A F400 features an integrated 3.2 kW Class-D power module equipped with PowerCON 32A Mains connectors and XLR
balanced audio signal connectors allowing for a simple, straightforward power and audio linking of the array elements.
Gain level knob
Activity leds
Signal OUT
Balanced audio XLR

PRELOADED SELECTABLE PRESETS

The 24-bit high-resolution integrated DSP board allows for easy access to four
preloaded presets, just toggling the press-button PRESET SELECT in the back
control pannel. The active preset will be indicated by the active led above its
number.
Preset Select toggle
Active Preset
Signal IN
USB Port
Balanced audio XLR
QuickStart Guide
Mains OUT Mains IN
PRESET 1: LPF @100 Hz
PRESET 2: LPF @120 Hz
PRESET 3: LPF @150 Hz
PRESET 4: LPF @180 Hz
