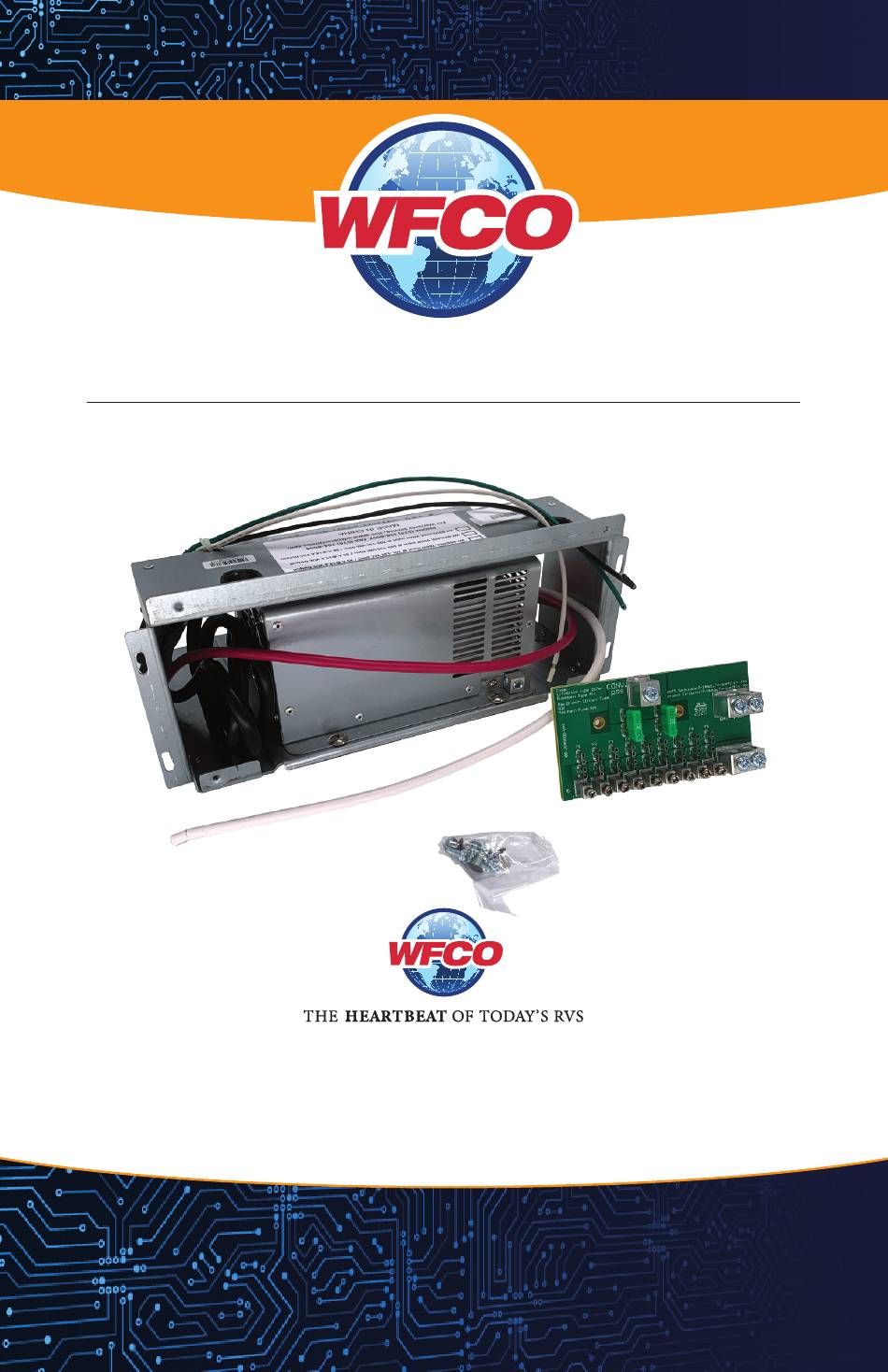

- Page 1 OPERATOR’S MANUAL WF-8900-AD-REP SERIES CONVERTER REPLACEMENT KIT ARTERRA DISTRIBUTION WARRANTY (877) 294-8997 warranty@wfcoelectronics.com wfcoelectronics.com Fax (574) 294-8698 Distributed by Arterra in the U.S.A. and Canada...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ....................... 3 KIT FEATUES ........................... 3 PERFORMANCE FEATURES ....................4 INSTALLATION INSTRUCTIONS Tools Needed ........................4 Step-by-Step Instructions ....................4 DC Fuse Board ........................ 5 TROUBLESHOOTING INSTRUCTIONS ................6 GENERAL INFORMATION Reverse Battery Protection ....................6 Automatic Cooling Fan .................... -
Page 3: Safety Information

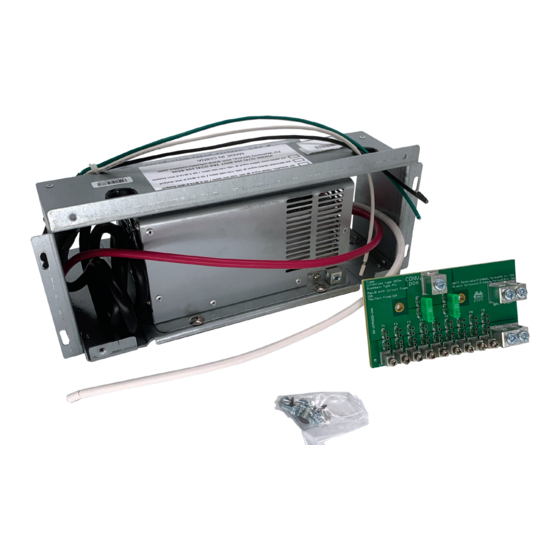

GENERAL INFORMATION WF-8900-AD-REP Kit Features The WF-8900-AD-REP Converter Replacement Kit allows easy upgrade of existing power centers. Technicians can easily remove the lower section of certain power center brands and slide in the WF-8900-AD-REP unit. This exchange upgrades the old single stage charger to a high performance three-stage charging powerhouse. -
Page 4: Performance Features
OPERATIONAL FEATURES WF-8900-AD-REP Performance Features The WF-8900-AD-REP Converter Replacement Kit provides all WFCO’s performance standards: • Quiet Operation • Filtered Power • Overload Protection • Short Circuit Protection • FCC Class B Approval INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Installing the WF-8900-AD-REP Kit TOOLS NEEDED FOR ASSEMBLY •... -
Page 5: Dc Fuse Board
REMOVING THE AC (110 VOLT) SIDE OF THE CONVERTER 1. Drop the front door down and turn off 30amp main breaker. 2. Remove all screws holding the front door assembly on. 3. Remove two screws holding the metal plate that covers the AC breakers. 4. -
Page 6: Troubleshooting Instructions
INSTALLING THE DC (12 VOLT) SIDE OF THE CONVERTER. REFER TO FIGURE 1 ABOVE 5. Route the red wire from the converter up behind the mounting bracket for the fuse board and connect it to the lug on the fuse board marked CONV POS. 6. -
Page 7: Automatic Cooling Fan
AUTOMATIC COOLING FAN The cooling fan in the WF-9800-AD Series Converter-Chargers is incremental and is controlled by the current drawn out of the converter to the applied load. The on-board microprocessor increases fan speed as the total load increases and decreases fan speed as the load decreases. –... -
Page 8: Operational Features
“detected” and is then automatically set for the type of battery being used. For standard Lead Acid and AGM batteries, WFCO power converters still use the Three-Stage Smart Charging to effectively maximize battery life by monitoring through the different phases of the charge cycle. - Page 9 RV will rarely require anything other than Absorption Mode. When a WFCO converter is connected to a battery in Absorption Mode, power is available for charging that battery whenever the converter output is greater than the voltage level of the battery.
-
Page 10: Two-Stage Smart Charging
As the battery continues to charge, the current drawn by the battery will gradually decrease. WFCO converters are designed to drop out of Bulk Mode when the total amperage draw from the converter reaches a preset point, indicating the battery is charged. If the amperage draw stays above the preset point, the converter will stay in Bulk Mode for a maximum of four hours. - Page 11 BULK MODE This mode is designed with two purposes in mind. First, to quickly restore the energy back into the battery. Second, to ensure the lithium cells inside the battery remain balanced. This is accomplished by boosting the output voltage to 14.6 VDC and allowing the maximum current to flow as required by the loads.
-
Page 12: Converter Output Voltage
CHECKING CONVERTER OUTPUT VOLTAGE Before checking the WF-9800-AD Series Converter-Charger output voltage, disconnect the bat- tery cables at the battery. Make sure the converter is plugged into an AC source (105-130 Volts). Check the converter output voltage at the battery with a voltmeter. Place the meter probes on the disconnected battery cables;... -
Page 13: Troubleshooting Flow Chart
AC REVERSE POLARITY (AUDIBLE ALARM) This power center is equipped with an AC REVERSE POLARITY PROTECTION feature. Should the incoming AC neutral wire and lead wire be connected backwards at the power center, an alarm located in the power center enclosure will sound. This alarm will continue to sound until the AC wires are connected correctly. - Page 14 Figure 7...
-
Page 15: Specifications
CONSUMER LIMITED WARRANTY for WFCO Electronic Products WFCO extends, to the original owner, a Two-Year Limited Product Warranty. This warranty is in effect from the date of original purchase for a period of two years. This limited warranty is extended specifically for and is limited to Recreational Vehicle application and is only valid within the continental United States, Alaska, Hawaii and the Provinces of Canada. - Page 16 WF-8900-AD-REP DIMENSIONAL DRAWING Figure 8...
- Page 18 ARTERRA DISTRIBUTION WARRANTY (877) 294-8997 warranty@wfcoelectronics.com wfcoelectronics.com Fax (574) 294-8698 Distributed by Arterra in the U.S.A. and Canada Power PROs Technical Support (877) 294-8997...
