OPERATOR'S MANUAL

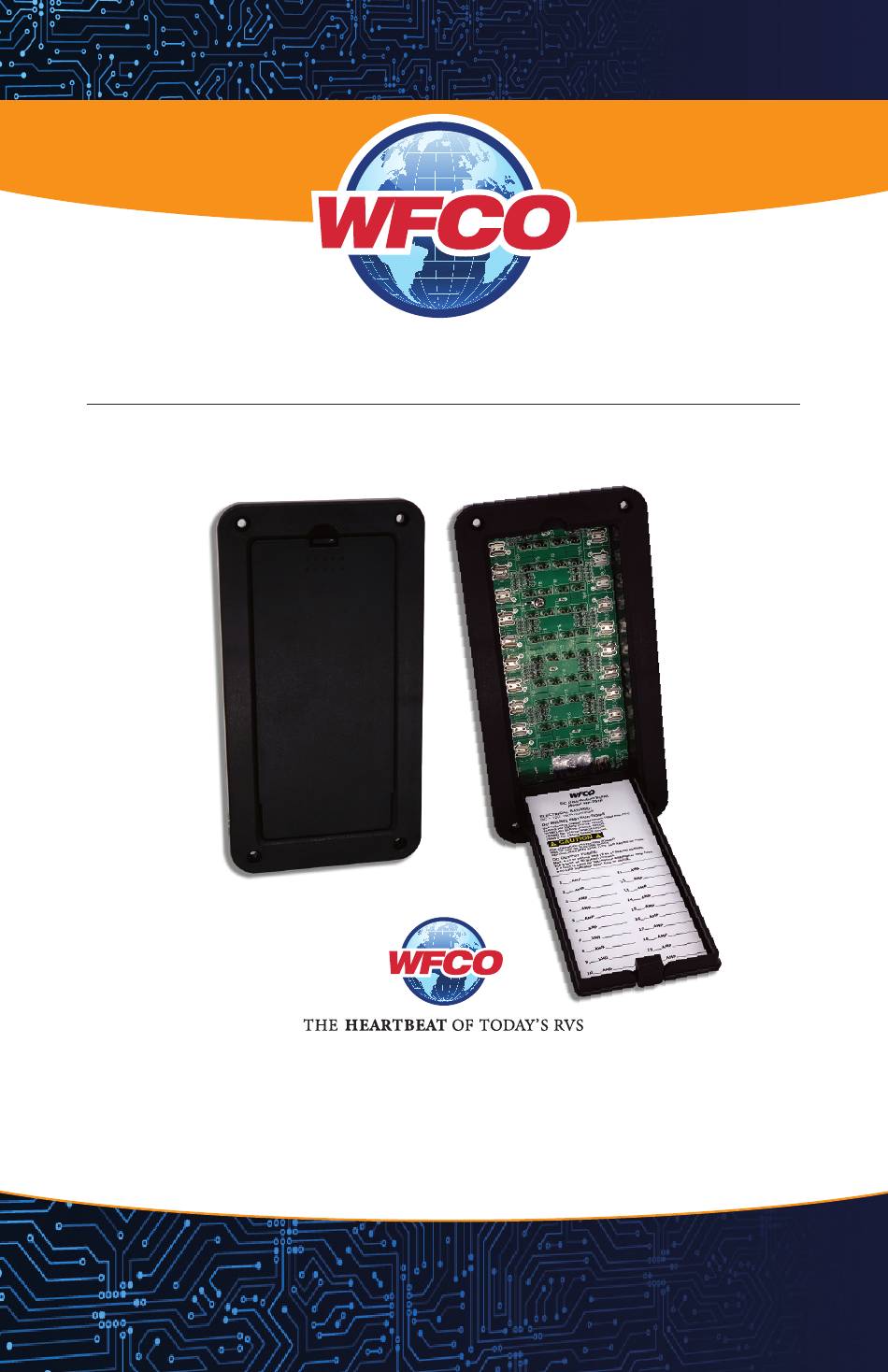

WF-7910 SERIES 12V POWER CONVERTER ACCESSORY
WF-7910 | WF-7910-Q | WF-7910-WAGO
The Power Converter Accessory model number is located inside the door panel.
ARTERRA DISTRIBUTION
WARRANTY
(877) 294-8997
warranty@wfcoelectronics.com
wfcoelectronics.com
Fax (574) 294-8698
Distributed by Arterra in the U.S.A. and Canada
Advertisement
Table of Contents
Related Manuals for WFCO WF-7910 Series
Summary of Contents for WFCO WF-7910 Series
- Page 1 OPERATOR’S MANUAL WF-7910 SERIES 12V POWER CONVERTER ACCESSORY WF-7910 | WF-7910-Q | WF-7910-WAGO The Power Converter Accessory model number is located inside the door panel. ARTERRA DISTRIBUTION WARRANTY (877) 294-8997 warranty@wfcoelectronics.com wfcoelectronics.com Fax (574) 294-8698 Distributed by Arterra in the U.S.A. and Canada...
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY INFORMATION ...................... 1 GENERAL INFORMATION Reverse Battery Protection ..................... 1 Blown Fuse Indicators ......................1 CIRCUIT PROTECTION DC Fuses ..........................2 INSTALLATION INSTRUCTIONS Mounting the Enclosure ......................2 Wiring the DC Fuse Board ..................... 3 TROUBLESHOOTING INSTRUCTIONS Check Converter or Battery Input Voltage ................4-5 Blown Fuse Indicators ...................... -
Page 3: General Information
REVERSE BATTERY PROTECTION The WF-7910 Series 12V Power Converter Accessory DOES NOT have a converter installed within the enclosure. Power is supplied to the WF-7910 Series 12V Power Converter Accessory from an external converter/charger, WF-9800 Series Converter/Charger for example, located elsewhere in the RV. -
Page 4: Circuit Protection
Installing the WF-7910 Series Power Converter Accessory MOUNTING THE ENCLOSURE The WF-7910 Series 12V Power Converter Accessory enclosure should be mounted in an accessible area such as a wall or inside a cabinet and close to the battery (batteries) when possible. -
Page 5: Wiring The Dc Fuse Board
Make sure all connections are tightly secured. NOTE: DC power coming to the WF-7910 Series 12V Power Converter Accessory needs to have the correct size fuse (160A maximum) for the gauge of wire and could be routed in one of two ways. -
Page 6: Troubleshooting Instructions
CHECK FOR CONVERTER OR BATTERY INPUT VOLTAGE NOTE: Depending on how the RV manufacturer connected the DC power to the WF-7910 Series 12V Power Converter Accessory, it could have been routed in one of 2 ways. 1. Power could be coming directly into the WF-7910 Series 12V Power Converter Accessory fuse board from the converter/charger. -
Page 7: Blown Fuse Indicators
WE’LL USE THE FIRST CONNECTION METHOD IN OUR DISCUSSION BELOW Make sure the WF-7910 Series 12V Power Converter Accessory is receiving DC power from the converter/charger or battery. First, check that the converter/charger is plugged into an AC source (105-130 VAC) and is operating. Check the converter input voltage with a voltmeter. Be sure you have good cable connections at the lugs. -
Page 8: General Compliance Information Agency Listings
CONSUMER LIMITED WARRANTY for WFCO Electronic Products WFCO extends, to the original owner, a Two-Year Limited Product Warranty. This warranty is in effect from the date of original purchase for a period of two years. This limited warranty is extended specifically for and is limited to Recreational Vehicle application and is only valid within the continental United States, Alaska, Hawaii, and the Provinces of Canada. -
Page 9: Consumer Warranty Claim Procedure
CONSUMER WARRANTY CLAIM PROCEDURE Upon determination and validation by an authorized OEM dealer that a WFCO product has a defect, a Return Goods Authorization (RGA) number will be required before the product can be returned. The RGA number can be requested by completing the Warranty Information Fax Sheet and appropriate Troubleshooting Form found atwfcoelectronics.com. - Page 10 ARTERRA DISTRIBUTION WARRANTY (877) 294-8997 warranty@wfcoelectronics.com wfcoelectronics.com Fax (574) 294-8698 Distributed by Arterra in the U.S.A. and Canada Power PROs Technical Support (877) 294-8997...
