Summary of Contents for WFCO ULTRA III WF-9800 Series

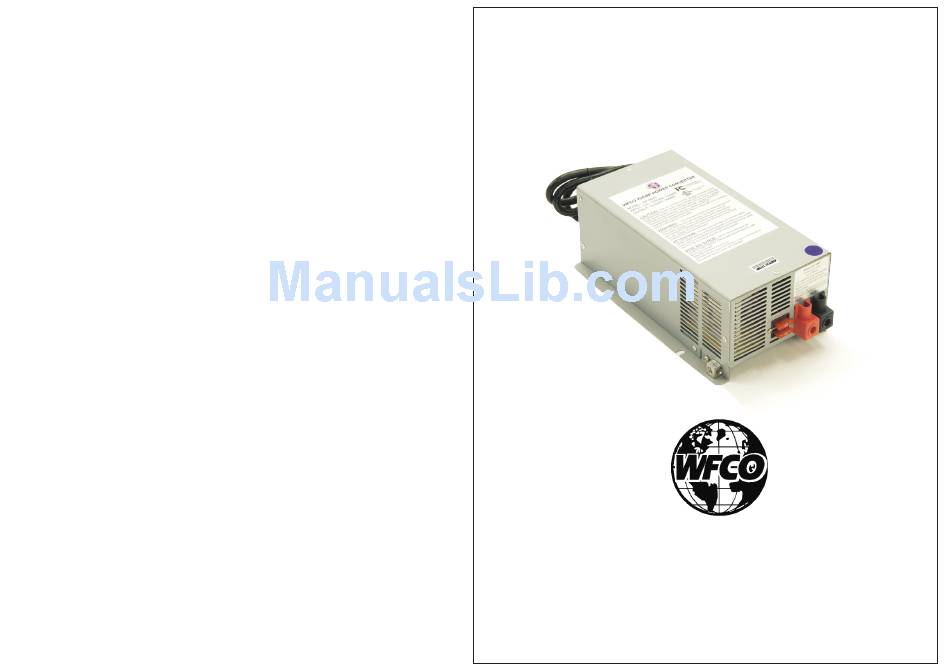

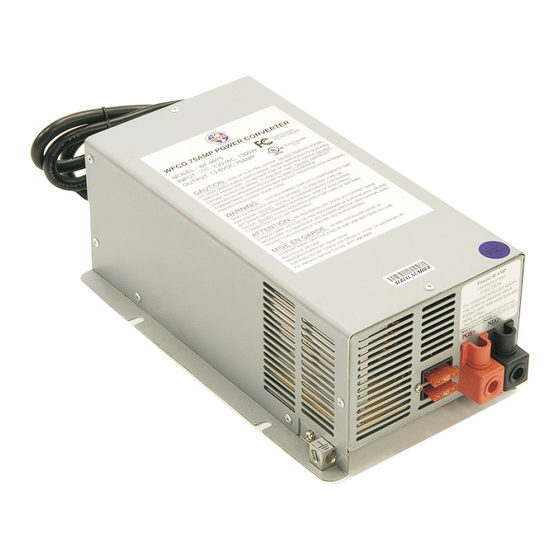

- Page 1 Installation/Operator Manual For use with WFCO ULTRA III Deckmount Converter WF-9800 Series (model number located on the cover of the unit) Distributed in the U.S.A. and Canada by CHENG USA, INC. Sales (574) 294-8997 Warranty Service (877) 294-8997 Fax (574) 294-8698...
- Page 2 OEM Installation of the WFCO WF-9800 Series Power Center General Consumer Information Select a mounting location near the shore power and battery (batteries). Reverse Battery Protection - Do not mount in an area where the owner may store items, as this...
- Page 3 WF-9800 Series Specifications WF-9800 Series Converter Dimensions Output Load Curve Model: WF-9835, 9845, 9855, 9865 and 9875 13.6 Vdc Dimensions Over the amperage rating load A: 7.50? (WF-9835) 13.2 Vdc 8.76? (WF-9845, 9855) will cause the output 10.26? (WF-9865, 9875) to fold back.
- Page 4 Converter Operation Modes Troubleshooting WF-9800 Series Converter All WFCO power converters are automatic three-stage switching If the input from shore power is 105 Vac-130 Vac to the receptacle, power supplies. The converter senses which mode it needs to be in by check the reverse battery protection fuse on the front plate of the checking the RV system voltage.
- Page 5 GENERAL COMPLIANCE INFORMATION WF-9800 Series Troubleshooting ® ® Before the converter output voltage can be checked, it is necessary to disconnect both The WF-8900 Series units are UL-Listed, and cUL-Listed (Canadian). DC output wires from the converter (as shown below). Use a 5/16 hex driver to They comply with FCC Class B requirement (see below) disconnect the wires.
- Page 6 This Warranty is limited to the repair or replacement, at WFCO' s discretion, of any defective parts or defective assembly. Any implied warranties of merchantability or fitness for intended use are limited in duration unless applicable State Law provides otherwise.
Need help?
Do you have a question about the ULTRA III WF-9800 Series and is the answer not in the manual?
Questions and answers
how meany input amps does aWF-98 series converter pull
The input amperage of the WFCO ULTRA III WF-9800 Series converter is not provided in the given context.
This answer is automatically generated
where is the deckmount converter found in the hampton crossroads trailer
