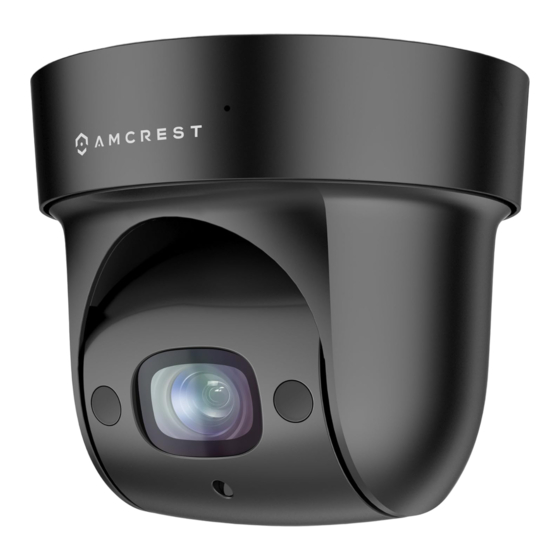

Amcrest IP2M-846B / IP2M-846W
2MP ProHD WiFi PTZ Camera
User Manual
Version 2.0.1
th
Revised April 8
, 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IP2M-846W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amcrest IP2M-846W

Summary of Contents for Amcrest IP2M-846W

  • Page 1 Amcrest IP2M-846B / IP2M-846W 2MP ProHD WiFi PTZ Camera User Manual Version 2.0.1 Revised April 8 , 2019...

  • Page 2: Table Of Contents

    4.2.2 Accessing your camera using multiple mobile devices ..................6 4.2.3 Configuring advanced settings on your camera ....................6 4.2.4 Using Amcrest Cloud for remote viewing, storage, and playback ................ 6 4.2.5 Using plug-and-play for remote web access ......................7 4.3.

  • Page 3: Welcome

    • Email Amcrest Customer Support support@amcrest.com Important Security Warning To keep your Amcrest camera secure and prevent unauthorized access, please make sure to follow the steps below: • Always make sure that your camera has the latest firmware as listed on www.amcrest.com/firmware-subscribe...

  • Page 4: Features And Specifications

    1.1 Overview Amcrest cameras are an excellent digital surveillance product that can be useful to a wide variety of users. This camera connects to any router and uses an internet connection to allow the user to access all of its functionality from many internet connected devices.

  • Page 5: Device Overview

    • Advanced Network Protocol Support The camera is UPnP compatible, and includes functionality for use with PPPoE, DDNS, and other protocols to allow remote and local connection with a large variety of network hardware. Note: There may be slight differences in functionality due to the existence of different product series.

  • Page 6: Installation Guide

    We offer 4 hours of free storage for your first camera. Please follow the instructions as outlined on section 4.5 (Amcrest Cloud setup) to sign up for our Amcrest Cloud service and get 4 hours of free storage.

  • Page 7: Using Plug-And-Play For Remote Web Access

    1. Download and open the Amcrest Cloud app from the App Store or Play Store Note: Connect your mobile device to the same network that your camera is on. 2. Register for an Amcrest Cloud account. To register click on Sign Up and fill out the form to complete registration.
  • Page 8 3. Tap on Add Camera 4. Give your camera a name (Ex. Garage, Living Room, Kitchen, etc.) and tap Next to continue. 6. If you are adding a new camera that does not have a 5. Scan the QR code on the back/side/bottom of set password the app will automatically detect that a the camera or manually enter the camera’s serial...
  • Page 9 7. Set a new password for your camera. The password 8. If you are connecting a WiFi camera to the Amcrest must be between 8 to 32 characters long and contain Cloud and would like to enable WiFi via the Ethernet only letters and numbers.

  • Page 10: Amcrest View Pro Setup

    Make sure your camera and mobile device are on the same network during setup. • Download and open the Amcrest View Pro app from the App Store or Play Store. 1. Open the app and tap on the + symbol in the middle 2.
  • Page 11 3. Tap on WiFi Camera Select your connection type, in this case, select the left tab Set Up A New Camera On WiFi or Connect New Device (on Android) to begin adding the device to the app. Tap Ethernet WiFi Setup to continue. 5.
  • Page 12 Network SSID field. Press Next to continue. Note: For Android 8.0 and above users, you will need to enable location permissions to be able to locate and scan for your WiFi network. For more information on how to locate an SSID visit: amcrest.com/androidP...

  • Page 13: Desktop Access Setup

    It is a free software provided by Amcrest that can provide a means of accessing all your devices in one central location without the use of a plugin or web browser.
  • Page 14 Note: Mac users, Amcrest Surveillance Pro currently functions as a 32-bit platform and may not be compatible with certain 64-bit Mac operating systems. Installation To install the Amcrest Surveillance Pro software on your computer, please visit amcrest.com/downloads In the All Downloads page you will notice separate sections for Mac OS and PC/Windows downloads for the free Amcrest Surveillance Pro software.
  • Page 15 Select the functions that you want to install with the software. You can choose to bundle the PC-NVR function with the software. PC-NVR turns your computer into an NVR and will utilize your hard drive (HDD) on your PC to store and access recorded video.
  • Page 16 Once the software has finished installing you will see a few options. You will have the options to view the release note and run the Amcrest Surveillance Pro software. To view the release notes after pressing Finish select the Release note checkbox. To begin running the software directly after pressing finish, select the Run Amcrest Surveillance Pro checkbox.
  • Page 17 Type the created password into the Password field on the next screen and click Login to log into the software. If you do not wish to have to retype your password every time you log into the system, click on the Remember Password checkbox.
  • Page 18 Config tool and locate the IP address for your device. The IP address will be listed in the IP field of the software. After locating the IP address in the Amcrest IP Config tool for the device, return to the Amcrest Surveillance Pro software and click on the Add button.
  • Page 19 For security purposes it is highly recommended to set the camera to a static IP address. Setting your device to a static IP will ensure the stability and the efficiency of your device while operating it in the Amcrest Surveillance Pro...
  • Page 20 In the Organizations menu on the far left, click on the device you wish to modify. Then In the device configuration menu, under General click on the Network icon to access the network settings for your device. In the Network Settings menu, in the Mode section click on the Static radio button to set your device to a static IP. Click Save and Apply to apply the network settings to your device.
  • Page 21 Viewing an Added Device To begin viewing an added device, navigate to the Home Page of the software and click on the LIVEVIEW icon located in the Basic section.
  • Page 22 In the Organizations menu, on the far-right side of the live view screen, double-click the device you want to view to load the live feed into the viewer. For more details on the features listed in this menu, refer to the table provided below: Item Function Please refer to the following contents for detailed information.
  • Page 23 ⚫ Sets the live view to 1- 64-window mode. Window split mode ⚫ : Select a window and then click this button to customize its setup. ⚫ : Adjust video scale. ⚫ : Full screen. ：Save current liveview as image. You can view under View. Intelligent ：Enable tour plan.
  • Page 24 In the command prompt menu, type in ipconfig to access the IPv4 Address for your computer.
  • Page 25 When the IPv4 address for your computer has been located, navigate back to the home page in the Amcrest Surveillance Pro software and click on the Devices icon located in the Settings menu. In the Devices menu, click on the button.
  • Page 26 Click on the Plus button to add a camera from the cameras you have connected to Amcrest Surveillance Pro. The Add Channel window will appear, select your camera from the Default Group or Custom Group list you’ve created. The camera will appear in the right screen, check the IPCamera check box. Click Save.
  • Page 27 Disk Manager will appear showing you a list of drives that could be used to allocate storage space for your cameras through Amcrest Surveillance Pro. Select a disk you would wish to use for recording purposes, you may allocate as much space as you have available on the drive within its minimum and maximum allowance.
  • Page 28 How to Setup Recording The Amcrest Surveillance Pro software allows you the opportunity to set your added device to record on motion or on continuous (general) recording. You can also set recording schedules for your device.
  • Page 29 Smart Smart is set to only apply smart features such as, face detection or other intelligent features, to trigger recording. Amcrest cameras do not currently support smart features. However, this is designated with an orange color in the software.
  • Page 30 How to View Playback To playback recorded material in the Amcrest Surveillance Pro software, navigate back to the Home Page and in the Basic menu, click on Playback. In the Organizations menu, click on the device you would like to view playback on. Ensure the checkbox next to...
  • Page 31 In the Type dropdown box, select which type of recording you would like to view. To view all records, make sure All is selected from the drop downbox. Next, ensure the correct stream is enabled in the Stream menu. The default stream will be Main Stream.

  • Page 32: Amcrest Blue Iris

    Note: Make sure the camera and the PC are on the same network before proceeding. Use one of the following web browsers: Safari, Internet Explorer, or the Google Chrome app. To easily connect to the camera’s interface, install and run the Amcrest IP Config tool. You can download the IP Config software from www.amcrest.com...
  • Page 33 In addition, it takes advantage of H.264 video compression allowing you to save hard drive space and reduce bandwidth consumption. Use Amcrest Blue Iris to turn your existing Windows PC into a fully featured professional video surveillance system. For more details about Blue Iris software and its features, please visit http://blueirissoftware.com/...
  • Page 34 Click Next to continue. Choose a file destination in which you would like the Amcrest Blue Iris software to download. If you would like to specify another path, besides the default path, click Change. It is recommended to leave the default download...
  • Page 35 Select the features you want to install and deselect the features you do not want to install. If your OS is 64-bit it is highly recommended to leave this option at 64-bit. To continue, click Next. To begin installing the software click on the Install button and allow the software to download to your computer. When the software has finished downloading, click on the Finish button to launch the software.
  • Page 36 Purchasing an Amcrest Blue Iris License Amcrest provides a 15-day free trial of the Amcrest Blue Iris software. If you find the Blue Iris software useful, please register and purchase a license. To continue the free trial version of this software, click Next to continue.
  • Page 37 Amcrest offers two versions of the Blue Iris software; Full, and Lite. The full version ($59.95) allows you to use up to 64 cameras with all the added features of Blue Iris. The Lite version allows you to use a single camera on the software with all the functionality of the software.
  • Page 38 IP address associated with the device you would like to view in the browser. This is the IP address that will be used in the Amcrest Blue Iris Software. To add a device, navigate to the Blue Iris software and click on the button.
  • Page 39 In the New Camera menu, provide a name for your camera. This can be a full name and a short name. Select which type of camera is being added to the software, and enable the options associated with your device. Click OK to continue.
  • Page 40 General, Video, Audio, and other settings associated with your device. Click OK to continue. The device will now be successfully connected to the Blue Iris software. To view an informative video on how to add an Amcrest device into the Amcrest Blue Iris software, please view this informative video: https://www.youtube.com/watch?v=RqcfLHANCd8...

  • Page 41: Web Operation

    You can also use the Amcrest Cloud to access your device from your computer. Amcrest Cloud does not require the use of a plugin to function and is compatible on most modern browsers. For more information on the Amcrest Cloud, visit amcrest.com/cloud.
  • Page 42 Click on the downloaded SeaMonkey Setup file and run the setup wizard. For purposes of these instructions we will be using Windows, however, the Mac setup process will be similar. Click Next to proceed. Please review the license terms before installing SeaMonkey. Read the license agreement carefully, and then to accept the terms, click the checkbox next to the I accept the terms in the License Agreement checkbox.
  • Page 43 Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 44 Allow the browser to install on your computer. When it has finished installing click on Finish to launch the browser. How To Access a Device Using SeaMonkey To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 45 In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm.
  • Page 46 The browser will then show the live feed of your connected device in the web user interface. For more information on the web user interface and the features it provides, please refer to the user manual for your device. User manuals can be found at amcrest.com/support or on the original listing of your device.
  • Page 47 Using Multiple Cameras in the Web UI Due to chipset limitations with certain model Amcrest cameras, different plugins may be required when accessing your camera on your computer. This section is specifically geared towards customers who have 3MP and below cameras and are experiencing issues when accessing a newer, 4MP and above camera, simultaneously with their old setup.
  • Page 48 Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 49 How To Access a Device Using Pale Moon To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 50 In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm.
  • Page 51 Click on Save File to being downloading the plugin and save the file to your computer. The webplugin.exe will then be downloaded to the downloads folder and be shown in the Download Manager in the upper right-hand corner of the browser. To launch the plugin, click on the and click on the webplugin.exe file in the download manager.
  • Page 52 Web based access for Amcrest device can be utilized in Google Chrome using the Amcrest Web View Chrome App. This is an app designed by Amcrest specifically for the use of accessing your device in Chrome without the use of a plugin and is available in the Chrome web store.
  • Page 53 To confirm the addition of the Amcrest Web View app to your browser, click on the Add app option listed in the popup. The app will begin to download to your Chrome app store. The Chrome app store can be accessed by typing the following URL into your browser: chrome//apps Click on the Amcrest Web View to launch the app.
  • Page 54 Enter this IP address into the Chrome web browser to load the web user interface. In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device.
  • Page 55 How to Access a Device Using Firefox The latest update of Mozilla Firefox will be discontinuing the use of plugins which may cause issues with accessing the web user interface for your device while using Firefox. The plugin will affect the ability to view and playback, however, setting changes will still be available using this method on most devices.
  • Page 56 The file will then begin to extract the setup Wizard. Click Next to continue the process. Choose the type of setup you prefer. There are two types of setup, Standard and Custom. In this case, it is recommended to run the standard setup since it is the most common. This is selected by default in the wizard. To continue, click the Next button.
  • Page 57 When the installation is complete, click on the finish button to automatically launch the browser. A shortcut icon will also be displayed on your desktop for quick access to the browser if necessary.
  • Page 58 Preventing Automatic Updates Once the browser has finished loading, it is recommended to make sure that no future automatic updates are applied to the browser. If an automatic update were to occur, the browser will revert to the most current version of the Firefox web browser which will prevent the use of plugins on your browser.
  • Page 59 How to Access the Web User Interface Using Firefox Before accessing your device using Mozilla Firefox, ensure you are using the correct version of Firefox. As discussed previously, later versions of Firefox may prevent the use of plugins which are needed to access your device. Verify the Correct Version of Firefox is Being Used To verify the correct version is being used, click on the settings menu located at the top of your screen and click...
  • Page 60 Accessing the Web User Interface To access the web user interface, locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 61 If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm. The password used should be between 8 and 32 characters long with a combination of letters and numbers.
  • Page 62 Click on Save File to being downloading the plugin. The webplugin.exe file will save to your downloads folder. To install the plugin, click on the downloads icon and click on the webplugin.exe to install the plugin on your computer. After the web plugin has been installed, close out of the browser completely and then reopen the browser. Type in the IP address for your device into the browser and log into the web user interface with your device’s login credentials.
  • Page 63 The browser will then need to run the MMX plugin. Click on Allow and Remember to allow the browser to run the MMX plugin. The browser will then show the live feed of your connected device in the web user interface.
  • Page 64 To access your device using the Google Chrome Extension please refer to the information provided below. Locate the IP address for your device using the Amcrest IP Config Tool. The Amcrest IP Config Tool can be downloaded at the following web page: amcerest.com/downloads...
  • Page 65 In the web user interface, enter the login credentials for your device. If this is the first time accessing the device, the username and password will both be admin. Click on Login. If this is the first-time logging into your device, you will be prompted to modify the password for your device. To modify the password, enter the new password you would like to use in the New Password field and confirm.

  • Page 66: Remote Web Access Setup

    Please refer to your router manufacturer’s documentation to learn how to enable uPnP on your router. Below is a step-by-step walkthrough that details how to setup Amcrest cameras for Remote Web Access using UPnP and DDNS: Login to your camera’s web interface, open the main menu then go to Setup ->...
  • Page 67 Click the Connections menu item on the left-hand menu and ensure that the HTTP port has changed. Click the DDNS menu item on the left-hand menu, pick Amcrest DDNS from the drop down box, click the checkbox next to Server Type, and then click the Save button on the bottom right.

  • Page 68: Amcrest Cloud Desktop Setup

    Amcrest cameras can sync with Amcrest Cloud; a service that stores recorded video streams to enable long-term storage. Amcrest Cloud also allows the user to easily find and download recorded video for playback from any internet connected PC or Mac computer.

  • Page 69: Web Access Setup (Amcrestview.com)

    View your camera live or watch recorded clips using the menu button on the top of the page. You can also use the Amcrest Cloud app on iOS and Android to add more cameras, play recordings, and view your camera live, from anywhere.

  • Page 70: Live

    For quick and easy remote access on your PC or Mac, please use amcrestcloud.com (section 4.5) or amcrestview.com (section 4.6). For additional assistance, please contact us at www.amcrest.com or give us a call at 1-888-212-7538. Step by step video tutorials available at http://www.amcrest.com/videos The main interface of the camera contains 6 major tabs on the top of the screen.
  • Page 71 Section 1: This bar allows the user to select which stream type and which protocol they want to choose. Section 2: The functions bar allows the user to perform different camera functions while in live mode. See the table below for an explanation of the different functions available: Button Function Name Function Description...

  • Page 72: Ptz

    Section 3: This bar allows the user to change video settings for the live playback screen. See the below table for an explanation of the video settings: Button Function Name Function Description Image Adjustment This button opens the image adjustment toolbar, which allows the user to adjust brightness, contrast, saturation, and hue for the live feed’s picture.

  • Page 73: Playback

    The arrows on the PTZ control panel allow the user to move the camera’s position in a specific direction. The button in the middle of the direction arrow allows the user to select an area in the live view to zoom in on. The speed dropdown box allows the user to control the speed at which the camera moves.
  • Page 74 This is the interface for the playback menu. There are 7 main sections: Quick Actions: This panel allows the user to zoom in on playback footage, take a snapshot of the playback footage, or open the help menu. File Menu: This panel allows the user to select a file type and data source. Calendar: This panel allows the user to pick a date that they would like to playback video from.

  • Page 75: Setup

    5.4 Setup The Setup tab allows the user to change different camera settings. Below is a screenshot of the setup tab: There are 3 main sections to note in the Setup tab: Menu Bar: The menu bar is composed of menu sections, which when clicked display any menu items that fall under their category.
  • Page 76 Below is an explanation for each of the fields on the Configuration tab in the Configuration menu item: • Profile: This dropdown box allows the user to select which profile to modify. The 3 options are Day, Night, and Normal. •...
  • Page 77 • Anti-Flicker: These radio buttons allow the user to select what type of anti-flicker technology should be used for the video feed. The three options are 50 Hz, 60 Hz, and Outdoor. The desired option should offset any flickering effect caused by the electrical current used in the specific area. •...
  • Page 78 Below is an explanation for each of the fields on the Profile Management tab in the Configuration menu item: Profile Management: This set of radio buttons allow the user to set what basis the profile management settings run on. There are 3 options: Normal, Full Time, and Schedule. Normal means that the system can automatically alternate between night and day based on the profiles for each.
  • Page 79 • Frame Rate (FPS): This dropdown box allows the user to select a frame rate. Frame rate settings are measured in frames per second (FPS), and can range from 1f/s to 25f/s in PAL mode and 1f/s to 30f/s in NTSC mode. •...
  • Page 80 The menu on the left allows the user to select which overlay to modify. Privacy Masking, Channel Title, Time, and Text Overlay can all be modified in this menu. For Privacy Masking, the radio button enables or disables the feature. To set a privacy mask, click one of the boxes in the live view window, and position or resize it as needed.
  • Page 81 Below is an explanation for each of the fields on the Path tab in the Video menu item: • The Live Snapshot field allows the user to select where to save live snapshots to. Click the Browse button to select a different destination folder.

  • Page 82: Network

    Sampling Frequency: This dropdown box allows the user to select a sampling frequency for the audio. The options are 8k and 16k. 16k audio sampling allows for higher sound quality. Audio In Device: This field allows the user to select what source to get audio from. The default is the camera’s built-in mic.
  • Page 83 The P2P settings screen is where users can use a QR code to connect their smartphone or tablet to the camera. This feature needs to be enabled for use with the Amcrest View app, Amcrest Cloud, or AmcrestView.com. Below is a screenshot of the P2P settings tab:...
  • Page 84 QR code scanning feature cannot be used. • QR Code: This image is a Quick Response (QR) code. By scanning this image using the Amcrest View app, this camera can establish a connection with the app.
  • Page 85 For purposes of this guide, AmcrestDDNS will be used. AmcrestDDNS is a free DDNS service provided by Amcrest, and it must be renewed every year. A renewal reminder email will be sent to the email entered in the username field below.
  • Page 86 To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. 5.4.2.4 IP Filter This screen allows for the filtering of IP addresses, either blocking them, or granting them access to the camera. This feature helps make the camera more secure by limiting remote access only to approved users.
  • Page 87 5.4.2.5 SMTP (Email) This screen allows for the configuring of email settings in order to permit the camera to send emails when an alarm is triggered. Below is a screenshot of the email settings screen: Below is an explanation of fields on the SMTP (Email) settings screen: •...
  • Page 88 5.4.2.6 UPnP UPnP stands for Universal Plug and Play, and it is a protocol used to easily connect devices to the internet. In the case of this camera, it allows the camera to connect to the router in an easy manner to quickly allow for remote access.
  • Page 89 Below is an explanation of fields on the SNMP settings screen: • SNMP Version: These checkboxes allow the user to select the SNMP version to use. • SNMP Port: This field allows the user to write in a port for SNMP to use. The port can range from anywhere from 1 to 65535.
  • Page 90 5.4.2.9 Multicast Multicast is a feature that enables the camera to broadcast its live view to multiple computers on the same network. Below is a screenshot of the multicast screen: Below is an explanation of the fields in the Multicast settings screen: •...
  • Page 91 ● Add SSID: This button allows the user to manually enter in an SSID. ● Search SSID: This button allows the user to search for more SSIDs. ● Refresh: This button obtains the most recent WiFi network information. To connect to a WiFi network, click the line item for your WiFi network and enter the WiFi password. Click on Connect to connect the camera to your WiFi network.

  • Page 92: Event

    To enable 802.1x, click the checkbox next to Enable. An authentication method can be chosen from the dropdown box, and a username and password can be entered in their respective fields. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 93 Below is an explanation of the fields on the Motion Detect tab: Enable: This checkbox enables motion detection for the camera. Working Period: Clicking this button opens a weekly schedule that can be used to set times. Click and drag to set motion detection for certain days of the week. Also, periods of motion detection can be set for each day and enabled using the period settings on the bottom half of the screen.
  • Page 94 o When the setup button is clicked, a live stream of the video is shown. The user can then set up to 4 regions, each with their own region name, sensitivity (1-100), and threshold (1-100). Each region has a specific color, and the region selector tool is displayed when the mouse is moved to the top of the screen.
  • Page 95 Below is an explanation of the fields on the Video Tamper tab: • Enable: This checkbox enables a video tamper alarm for the camera. • Working Period: Clicking this button opens a weekly schedule that can be used to set times. o Click and drag to set video tampering for certain days of the week.
  • Page 96 • Alarm Delay: This field specifies in seconds how long the delay between alarm activation and Relay alarm activation should be. • Send Email: This checkbox allows the user to enable the camera to send an email when a video tampering alarm is triggered.
  • Page 97 Click and drag to set audio tampering for certain days of the week. Also, periods of audio detection can be set for each day and enabled using the period settings on the bottom half of the screen. There are a total of 6 periods that can be set.
  • Page 98 5.4.3.3 Alarm This screen is used to set external alarm settings for the camera and any devices attached to the camera’s relay. Below is a screenshot of the Alarm settings screen: Below is an explanation of the fields on the Alarm settings screen: •...
  • Page 99 For example, if the anti-dither time is set to 10 seconds, each alarm may last 10 seconds if the local alarm is activated. During the process, if the system detects another local alarm signal at the fifth second, the buzzer, tour, PTZ activation, snapshot, record channel functions will begin another 10 seconds while the screen prompt, alarm upload, email will not be activated again.
  • Page 100 To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button. 5.4.3.4.2 Network This tab allows the user to set the camera’s response to a Network related abnormality. Below is a screenshot of the Network tab screen: Below is an explanation of the fields on the Network settings tab: •...

  • Page 101: Storage

    Below is an explanation of the fields on the Illegal Access settings tab: • Enable: This checkbox enables the Illegal Access abnormality trigger for the camera. • Login Failure: This field allows the user to specify how many failed login attempts must be attempted in order to trigger an Illegal Access abnormality event.
  • Page 102 Below is an explanation of the fields on the Record Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 3 types of recordings: General: General recording means that the camera captures all footage for the specified time period. General recording is represented by the color green.
  • Page 103 Below is an explanation of the fields on the Snapshot Schedule settings tab: • Record Type: These checkboxes allow the user to select which snapshot type they want to configure on the schedule. There are 3 types of snapshots: General: General means that the camera will take snapshots during the specified time period. General recording is represented by the color green.
  • Page 104 Below is an explanation of the fields on the Holiday Schedule settings tab: • Record Type: These checkboxes allow the user to select which recording type they want to configure on the schedule. There are 2 types of recordings: Record: This checkbox is referring to video recording. Snapshot: This checkbox is referring to snapshot recording.
  • Page 105 • Record Type: These columns designate which recording type should be recorded to which event type. Check the box at the intersection of the record type and event type to designate where that recording should be sent to. To reset to default settings, click the Reset Defaults button. To refresh the page, click the Refresh button. To save the settings, click the Save button.
  • Page 106 • Enable: This checkbox allows the user to enable FTP uploading for the camera’s recorded media. • Server Address: This field allows the user to designate a DDNS address for the FTP server. • Port: This field allows the user to designate the port number for the FTP server. •...

  • Page 107: System

    Below is an explanation of the fields on the Record Control settings tab: • Pack Duration: This field allows the user to set how many minutes each file is comprised of. • Pre-event Record: This field allows the user to specify how many seconds before an event should be recorded. Disk Full: This dropdown box allows the user to designate what the camera should do when the disk is full.
  • Page 108 Below is an explanation of the fields on the Date & Time settings tab: • Date Format: This dropdown box allows the user to change the date format used in the camera. • Time Format: This dropdown box allows the user to change the time format used in the camera. •...
  • Page 109 Below is an explanation of the fields on the Manage Users screen: • Anonymous Login: This checkbox allows the user to enable the anonymous login feature. This allows all user account names to remain hidden on this screen. • User Name: This tab shows the usernames available on the camera. •...

  • Page 110: Information

    To import settings, click the Import button. To export settings, click the Export button. 5.4.5.5 Auto Maintain This screen allows the user to set auto maintenance settings for the camera. Below is a screenshot of the Auto Maintain screen: Below is an explanation of the fields on the Auto Maintain screen: Auto Reboot: This checkbox allows the user to enable the auto reboot function.
  • Page 111 5.4.6.1 Version This screen allows the user to see various information about the camera’s software versions, as well as other information. Below is a screenshot of the camera’s version screen: On this screen, software version, web interface version, and ONVIF version are displayed. Also, the S/N (Token ID) is displayed here.

  • Page 112: Alarm

    Click Refresh to refresh this table. 5.5 Alarm This screen is where the alarm log is kept. Below is a screenshot of the alarm screen: The table on the right shows the alarm log and all of the alarm instances that have occurred. The checkboxes allow the user to narrow down which alarms they want to see in the alarm log.

  • Page 113: Faqs/Troubleshooting

    6. FAQs/Troubleshooting 1. The camera does not boot up properly. Below are a few possible reasons why this may be occurring: • The power input is not correct voltage. • The power cable connection is not secured correctly. • The firmware was upgraded incorrectly. 2.
  • Page 114 8. There is no audio during recorded video playback. Below are a few possible reasons why this may be occurring: • Audio recording may not be enabled. • The camera’s microphone is damaged. 9. The timestamp is not displaying the correct time. Below are a few possible reasons why this may be occurring: The time and date settings may not be configured correctly.

  • Page 115: Glossary Of Terms

    15. Alarms are not working. Below are a few possible reasons why this may be occurring: • The alarm is not setup correctly. • The alarm cable is not connected correctly. • The alarm input signal is not correctly configured. There are two loops connected to one alarm device.
  • Page 116 • S/N – S/N stands for serial number. The S/N is unique to each camera and can be used to connect to different Amcrest apps and services to provide different methods of access to the camera. • Sensitivity – Sensitivity is the amount of change required to increase the motion detected by a percentage. The lower the sensitivity, the more movement is required to trigger an alarm.

  • Page 117: Fcc Statement

    FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.
  • Page 118 To contact Amcrest support, please do one of the following: • Visit http://amcrest.com/contacts and use the email form • Call Amcrest Support using one of the following numbers Toll Free US: (888) 212-7538 International Callers (Outside of US): +1-713-893-8956 USA: 713-893-8956 Canada: 437-888-0177 UK: 203-769-2757 •...

This manual is also suitable for:

Ip2m-846b
