WeTech WTC676 User Manual

USER MANUAL

WTC676

Thank you for purchasing a WeTech® product. This user manual contains important safety

and operating instructions for your PassivPlus charger. Before using your charger, read this

manual and all warning instructions with care in order to avoid possible danger.

This product is suitable for the charging of MOTOROLA MTP850, MTP850S and

MTP850FuG (each only with belt clip PMLN5616) radio units with MOTOROLA FTN6574,

FTN4331, PMNN4351 rechargeable batteries.

Made in Germany

Table of Contents

Need help?

Do you have a question about the WTC676 and is the answer not in the manual?

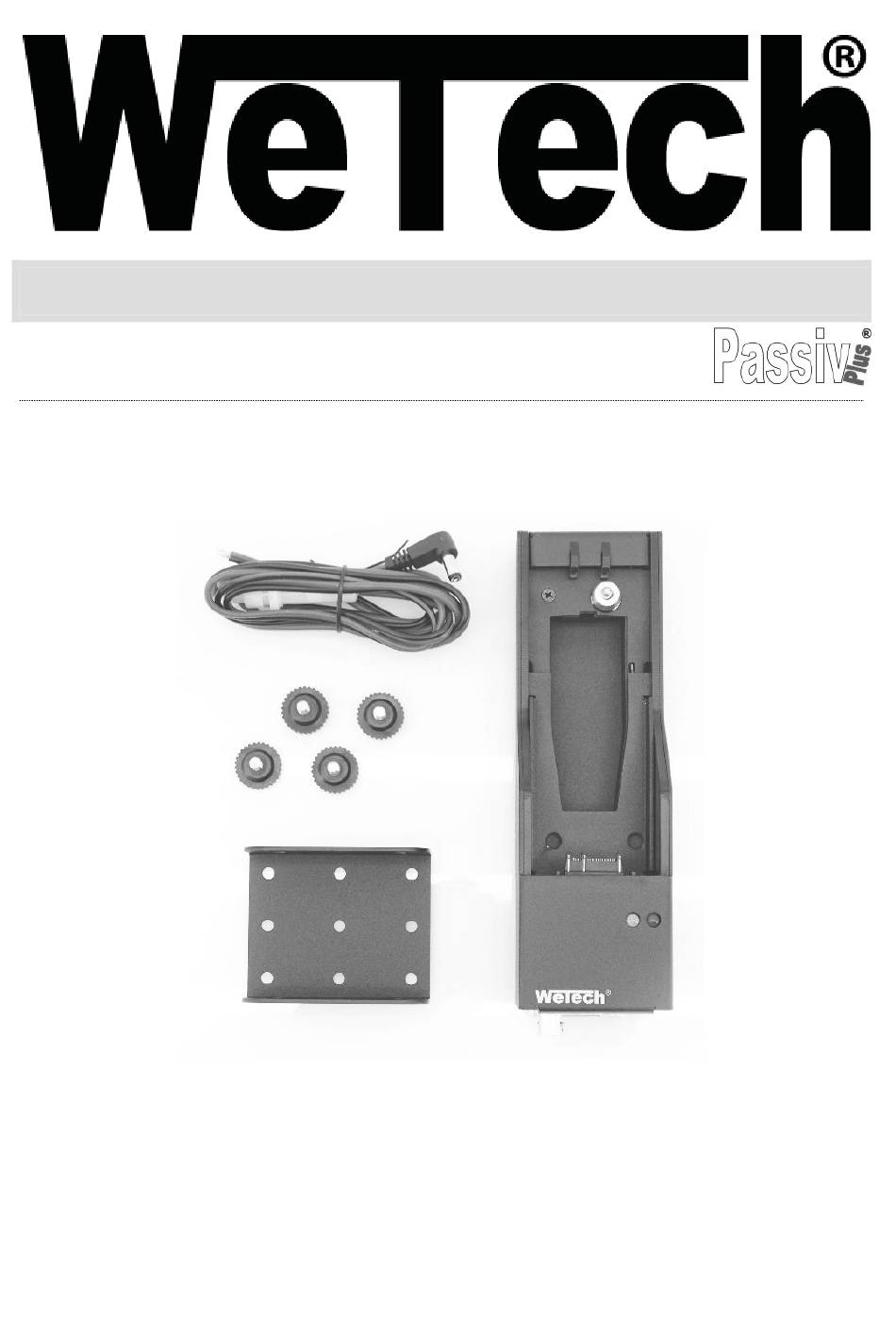

Page 1 USER MANUAL WTC676 Thank you for purchasing a WeTech® product. This user manual contains important safety and operating instructions for your PassivPlus charger. Before using your charger, read this manual and all warning instructions with care in order to avoid possible danger.

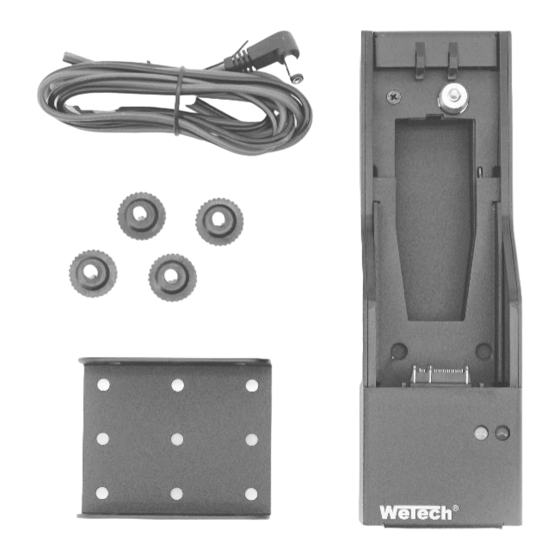

Page 2 Under no circumstances should you use water or other liquids. Scope of delivery The following items are included in the scope of delivery: PassivPlus-Charger WTC676 Holding bracket for WTC676 Passive accessory set Start of the sy stem Passive accessory set Connect the strands (1) of the DC cable provided to mains power.
Page 3 DC socket for power supply voltage in accordance with the technical data. 15-pin SUB-D Pin assignments can be found at www.wetech.de > Info -> Pin Assignments BNC socket To connect an external antenna Schematic drawing WTC676 © WEMPE Elektronic GmbH...
Page 4 The correct disposal of this product supports environmental protection and prevents possible damage to the environment and human health. Contact This product was manufactured in Germany by: WEMPE Elektronic GmbH phone: +49 6621 9240-0 Leinenweberstr. 6 fax: +49 6621 9240-44 DE-36251 Bad Hersfeld website: www.wetech.de e-mail: info@wetech.de Made in Germany...
