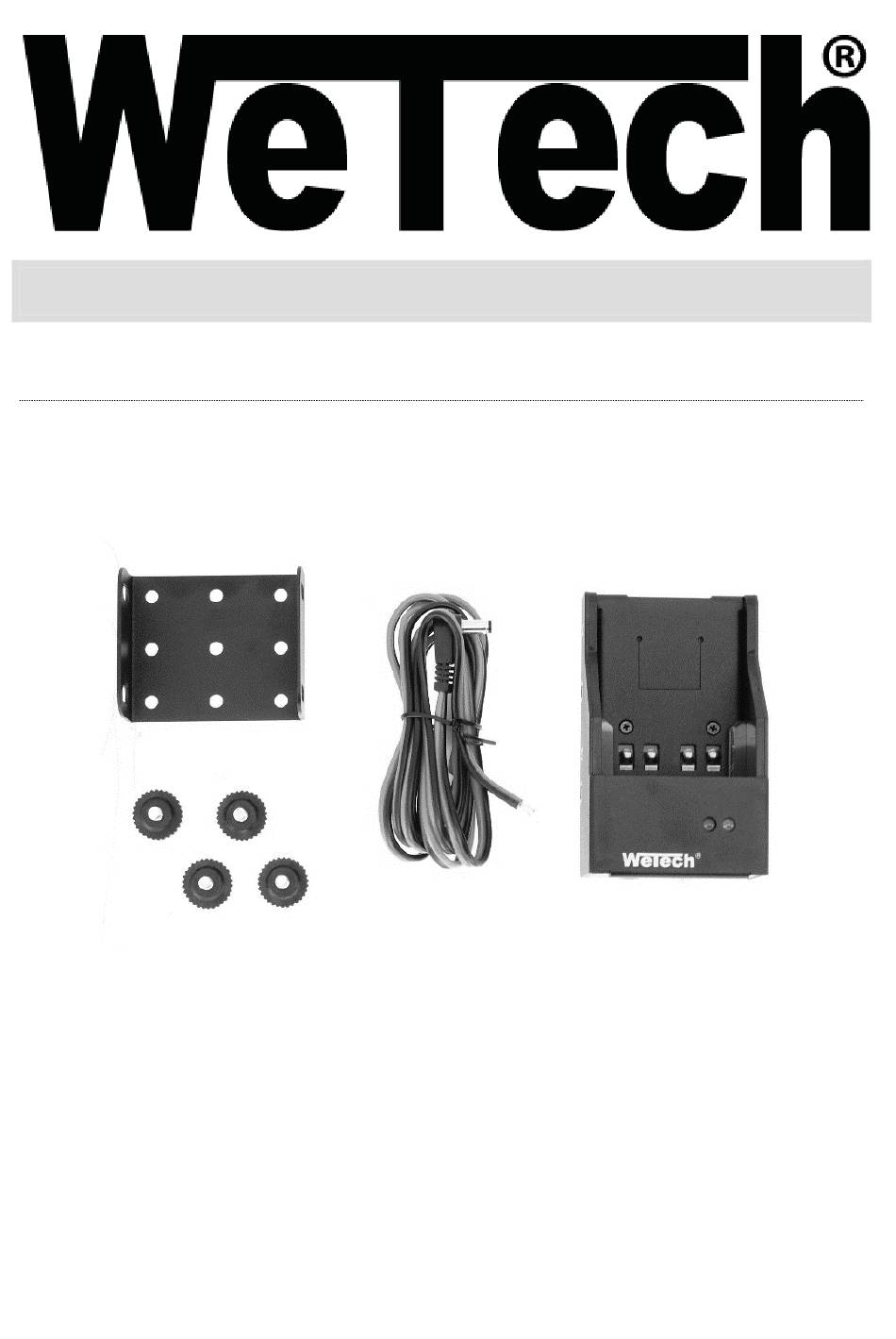

WeTech WTC636 User Manual

USER MANUAL

WTC636

Thank you for purchasing a WeTech® product. This user manual contains important safety

and operating instructions for your Passiv charger. Before using your charger, read this manual

and all warning instructions with care in order to avoid possible danger.

This product is suitable for the charging of MOTOROLA DP3400, DP3401, DP3600, DP3601,

DP2400, DP4401 and DP4800 radio units with MOTOROLA PMNN5077A, PMNN4065A,

PMNN4104A, PMNN4101A, PMNN4069A, PMNN4066A, PMNN4065A, PMNN4415,

PMNN4407, NNTN8359A, PMNN4407AR, PMNN4412AR, PMNN4409AR and NNTN8570A

rechargeable batteries.

Made in Germany

Table of Contents

Need help?

Do you have a question about the WTC636 and is the answer not in the manual?

Page 1 USER MANUAL WTC636 Thank you for purchasing a WeTech® product. This user manual contains important safety and operating instructions for your Passiv charger. Before using your charger, read this manual and all warning instructions with care in order to avoid possible danger.

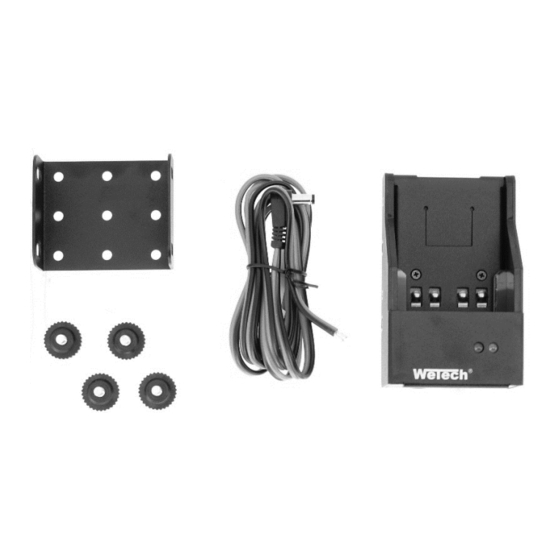

Page 2 Scope of delivery The following items are included in the scope of delivery: Passiv-Charger WTC636 Holding bracket for WTC636 Passive accessory set Start of the sy stem Passive accessory set Connect the strands (1) of the DC cable provided to mains power. Be sure that the approved working voltage and polarity are used.
Page 3 Red LED Quick charging active. Battery capacity under Quick charging inactive. Battery capacity over DC socket DC socket for power supply voltage in accordance with the technical data. Schematic drawing WTC636 © WEMPE Elektronic GmbH...
Page 4 The correct disposal of this product supports environmental protection and prevents possible damage to the environment and human health. Contact This product was manufactured in Germany by: WEMPE Elektronic GmbH phone: +49 6621 9240-0 Leinenweberstr. 6 fax: +49 6621 9240-44 DE-36251 Bad Hersfeld website: www.wetech.de e-mail: info@wetech.de Made in Germany...
