OPERATION MANUAL
OPERATION MANUAL
EP-510C

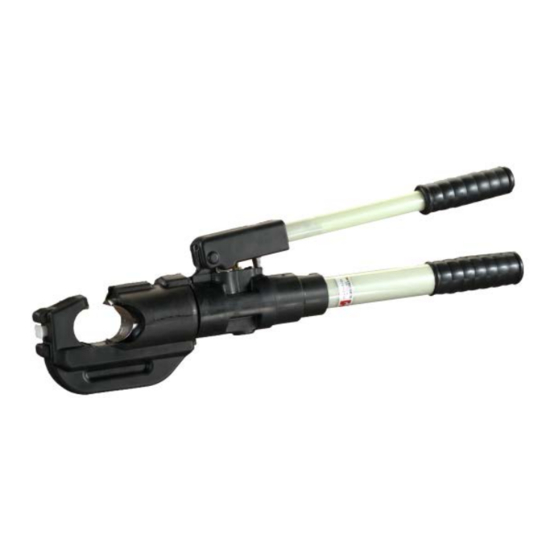

EP-510C: 12 Ton Compression Tool
Read and understand all of the instructions and safety information
in this manual before operating or servicing this tool.
195 Internationale Blvd
Glendale Heights, IL 60139
Phone 800-860-6170
Fax 800-345-3767
www.spartacogroup.com
Advertisement
Related Manuals for Huskie Tools EP-510C
Summary of Contents for Huskie Tools EP-510C
- Page 1 OPERATION MANUAL OPERATION MANUAL EP-510C EP-510C: 12 Ton Compression Tool Read and understand all of the instructions and safety information in this manual before operating or servicing this tool. 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767...
-
Page 2: Table Of Contents
REGISTRATION/ TABLE OF CONTENTS THANK YOU... Table of Contents for purchasing a Huskie Tools product. Our Registration/ Contents......2 mission is to supply the finest steel cable connecting and cutting tools and cable-related Warranty..........3 products to the transmission and distribution markets. -
Page 3: Warranty
WARRANTY Warranty Huskie Tools products carry a warranty that makes us a leader in the tool industry. No other manufacturer dares to back its tools as we do. All Huskie REC-SERIES battery operated products carry a 5 year warranty. The ECO-SERIES battery operated products carry a 1 year warranty. -
Page 4: Safety
SAFETY Wear eye protection: Safety Alert Symbol: when operating this tool. Failure to wear eye protection could result in serious eye injury from flying This safety alert symbol indicates a potential debris. personal injury hazard; it is not used for messages related to property damage only. -
Page 5: Specs/Kit Includes
12 ton tools. It is one of Huskie’s most versatile tools since it takes a full range of connectors and lugs to 750 MCM. The jaw opening is 1.65” to accept larger splices up to 750 MCM. The EP-510C output tonnage is adjustable to 14 tons for some specific grounding applications. -
Page 6: Operating Instructions
OPERATING INSTRUCTIONS Compression 1. Select the appropriate compression die set for the connector and cable being used. All “U” style Huskie HT41-series dies can be used with these tools. 2. To insert the dies, depress the die release pin on the ram, and slide die into place. Then lift release knob on top of “C”... - Page 7 OPERATING INSTRUCTIONS PRECAUTION FOR THE TOOL 1. Always point the tool AWAY from other people. 2. If the tool is stored for an extended period at a temperature of less than 25º F (-5ºC), the tool should be allowed to return to room temperature to ensure smooth operation Use the tool only after it has been at room temperature for 1 hour.
-
Page 8: Breakdown
BREAKDOWN www.spartacogroup.com 800-860-6170... -
Page 9: Parts List
PARTS LIST NO. DESCRIPTION CODE QTY. DESCRIPTION CODE QTY. 2 X 12 Drive Pin (BW) 351-28 Die Release Knob 510-01B Valve Screw (10) 410-44 Screw (16) 510-02 Spring (67) 85-39 Spring (257) 510-03 9/32" Ball 16-40 Retainer Pin (A) 510-04 Spring (66) 85-40 2.5 X 25 Drive Pin (BW) - Page 10 NOTES www.spartacogroup.com 800-860-6170...
- Page 11 NOTES www.spartacogroup.com 800-860-6170...
- Page 12 195 Internationale Blvd Glendale Heights, IL 60139 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com...
