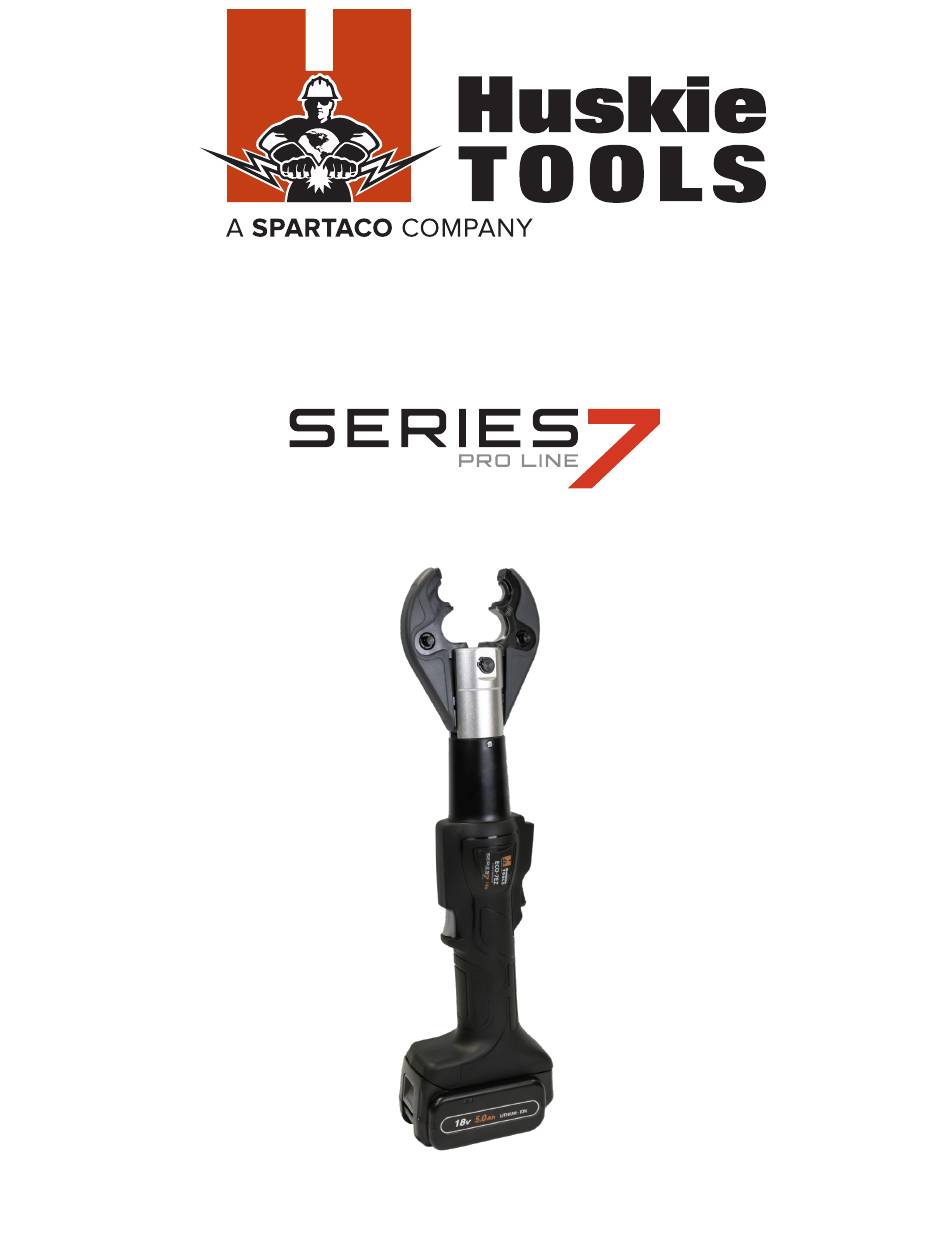

OPERATOR MANUAL FOR MODEL: ECO-7EZ
6 Ton Battery Operated Streamline Compression Tool
COVERS MODELS:
• ECO-7EZBG
• ECO-7EZK
• ECO-7EZND
• ECO-7EZO
• ECO-7EZXPJ
• ECO-7EZRBC
WARNING To reduce the risk of injury, user must read and understand manual
completely before first using this product and save this manual for future use.
Advertisement
Table of Contents
Related Manuals for Huskie Tools Pro Line 7 Series
Summary of Contents for Huskie Tools Pro Line 7 Series
- Page 1 OPERATOR MANUAL FOR MODEL: ECO-7EZ 6 Ton Battery Operated Streamline Compression Tool COVERS MODELS: • ECO-7EZBG • ECO-7EZK • ECO-7EZND • ECO-7EZO • ECO-7EZXPJ • ECO-7EZRBC WARNING To reduce the risk of injury, user must read and understand manual completely before first using this product and save this manual for future use.
- Page 2 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 3: Table Of Contents
MODEL: ECO-7EZ THANK YOU for purchasing a Huskie Tools product. Our mission is to supply the finest cable connecting and cutting tools and cable-related products to the transmission and distribution markets. Huskie Tools products will represent state-of-the-art tools and be dependable and safe. -
Page 4: Description

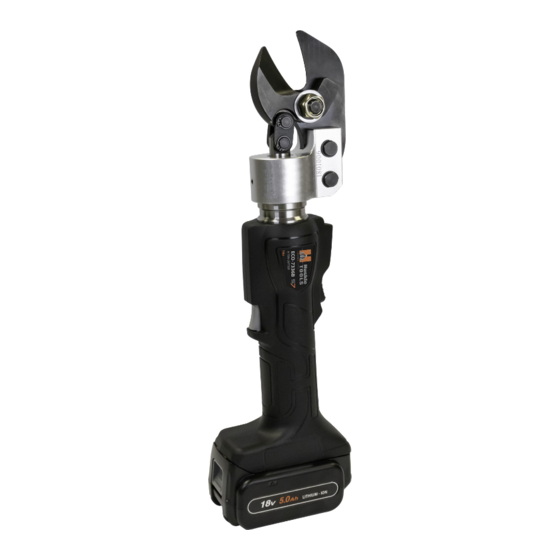

2. Integrated LED work light Cutting Capacities (RBC-38-Jaw) 3. Release trigger ACSR ..............4/0 4. Low battery indicator Standard guy wire ...........3/8” 5. 18V-5.0Ah Li-Ion Battery Soft locks ............3/8” 6. Advance Trigger Soft Steel ............3/8” ECO-7EZ - OPERATOR MANUAL Copyright © Huskie Tools 2019... -
Page 5: Safety Symbols
MODEL: ECO-7EZ SAFETY SYMBOLS You will see this symbol Exclamat throughout this manual. Read all instructions and This purpose of this symbol is to call your attention safety information detailed to hazards and/or unsafe practices that have the in this operator manual prior potential to cause injury or property damage. -
Page 6: Safety Information
ɨ Maintain tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the tools operation. If damaged, have the tool repaired before use. ECO-7EZ - OPERATOR MANUAL Copyright © Huskie Tools 2019... - Page 7 ɨ Before using battery charger, read all instructions and cautionary markings on battery charger, battery pack, and product using battery pack. ɨ To reduce the risk of injury, charge only Huskie Tools battery pack model BP-185. Other types of batteries may burst causing personal injury and damage.
-
Page 8: Operating Instructions
6. Low battery LED indicator will illuminate orange when battery has 3-5 compression cycles remain- ing. See Figure 8C. Battery Indicator Push Release Advance Pins Trigger Trigger Figure 8A. Figure 8B. Figure 8C. ECO-7EZ - OPERATOR MANUAL Copyright © Huskie Tools 2019... -
Page 9: Troubleshooting Guide
MODEL: ECO-7EZ TROUBLESHOOTING GUIDE Before You Begin 1. Make sure that the battery is charged. Recheck the battery after several minutes to make sure the battery is holding its charge. 2. Use a nonflammable contact cleaner or pencil eraser to clean the electrical contacts on the battery and tool. -
Page 10: Maintenance Notes
MODEL: ECO-7EZ MAINTENANCE NOTES ECO-7EZ - OPERATOR MANUAL Copyright © Huskie Tools 2019... -
Page 11: Warranty Information
Huskie. These remedies are exclusive, and the total liability of Huskie Tools, LLC whether based on contract, warranty, negligence, indemnification, strict liability or otherwise, shall not exceed the purchase price of the tool. In no event, shall Huskie Tools, LLC be liable for consequential, incidental or special damages. - Page 12 Phone 800-860-6170 Fax 800-345-3767 www.spartacogroup.com Huskie Tools reserves the right to change this information without further notice and holds no liability for printing errors in this content. Copyright © 2018 Huskie Tools, Inc. All Rights Reserved. Document ID: PD_3005 REV 0119...
