Alpine HALO9 iLX-F309TC Quick Reference Manual
  1. Manuals
  2. Brands
  3. Alpine Manuals
  4. Receiver
  5. HALO9 iLX-F309TC
  6. Quick reference manual

Alpine HALO9 iLX-F309TC Quick Reference Manual

9-inch audio/video receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

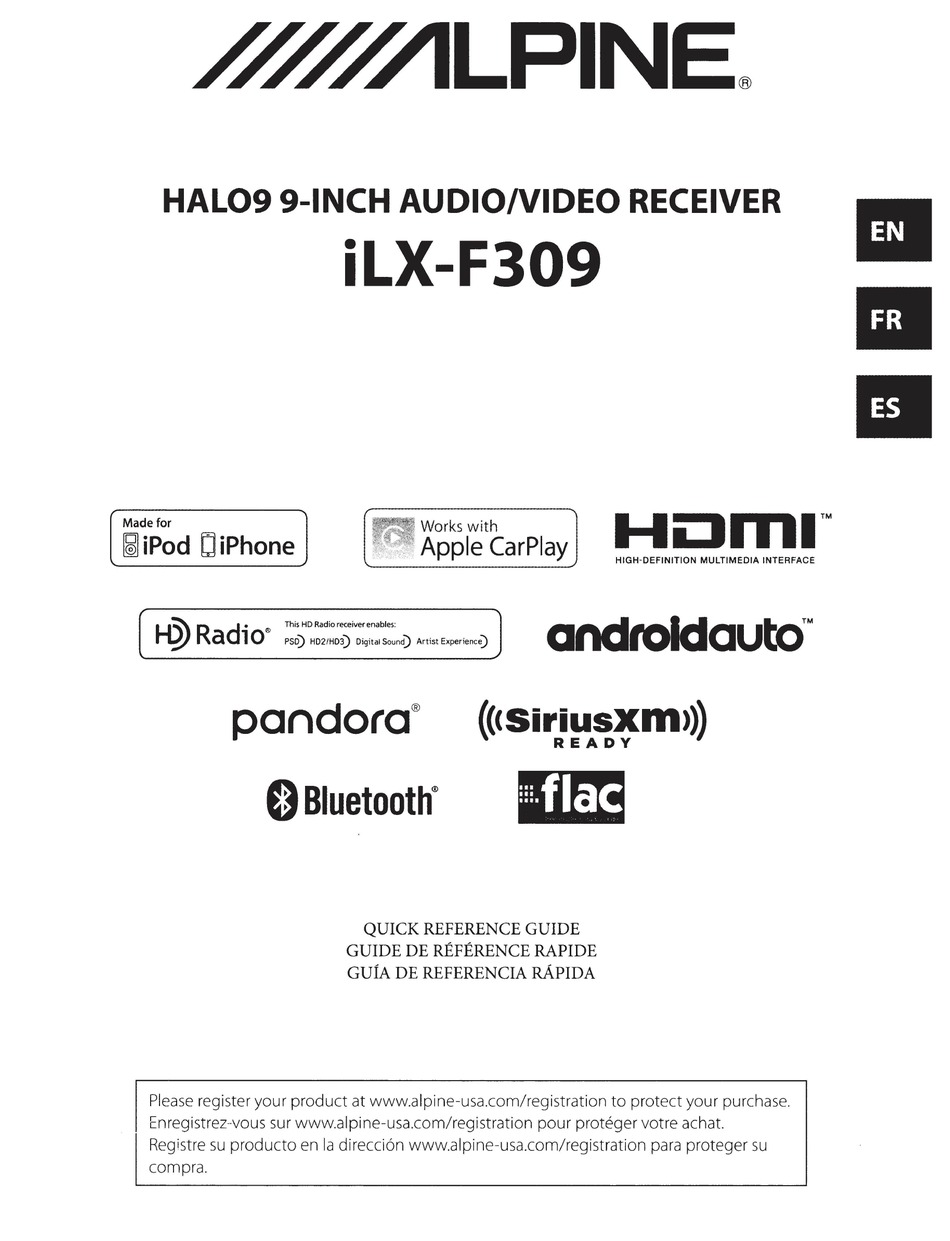

HALO9 9-INCH AUDIO/VIDEO RECEIVER
iLX-F309
Made for
Works with
i
iPod
□
iPhone
Apple CarPlay
Hi:lm1··
HIGH-DEFINITION MULTIMEDIA INTERFACE
H5'
R d
•
This HD Radio receiver enables:
~
a
1 0
®
PSD) HD2/HD3) Digital Sound) Artist Experience)
anclroldauto··
pandora®
0
Bluetooth®
{(<SiriusXffl>))
READY
m.flac
QUICK REFERENCE GUIDE
GUIDE DE REFERENCE RAPIDE
GUfA DE REFERENCIA RAPIDA
Please register your product at www.alpine-usa.com/registration to protect your purchase.
Enregistrez--vous sur www.alpine-usa.com/registration pour proteger votre achat.
Registre su producto en la direcci6n www.alpine-usa.com/registration para proteger su
compra.
■
■
Ill

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HALO9 iLX-F309TC and is the answer not in the manual?

Questions and answers

Related Manuals for Alpine HALO9 iLX-F309TC

Summary of Contents for Alpine HALO9 iLX-F309TC

  • Page 19 • MODE D’EMPLOI Veuillez lire avant d’utiliser cet appareil. Thank you for purchasing this Alpine product. Please take a moment to protect your purchase by registering your product now at the following address: www.alpine-usa.com/registration. You will be informed of product and software updates (if applicable), special promotions, news about Alpine.
  • Page 20 Changing the Layout ........22 IMPORTANT INFORMATION ......7 Deleting Items ..........23 WARNING Applying Alpine TuneIt App Adjusting the sound via the Smartphone ..24 Points to Observe for Safe Usage ......7 Facebook Notification Function ....... 24 WARNING ............7 CAUTION ............
  • Page 21 Default Sound Settings ........34 System Setup About the Crossover ........... 34 Camera Setup ............43 About Time Correction ........35 Setting the Camera Input ....... 43 Language Setting ..........36 Setting the Camera Signal Input ....43 Adjusting the Rear Camera Guide ....43 Picture Quality Setup ..........
  • Page 22 Fast-forwarding/Fast-reversing (USB Video Selecting the Channel Directly ......64 only) ..............53 Storing the desired Song/Artist ......64 Stopping Playback (USB Video only) ....53 Receiving and Tuning to an Alert ..... 64 Repeat Play ............53 Replay Function ..........65 Random Play (USB Audio only) .......
  • Page 23 Changing the connecting Bluetooth Device ............74 Auxiliary Device (Optional) Operating Auxiliary Devices (Optional) ..75 Operating an AUX, AUX DVD or GAME ............75 Camera Operation (Optional) Rear Camera Operation ........76 Displaying the Rear Camera Image from the Menu screen ..........

  • Page 24: Operating Instructions

    LISTENING AT LOUD manner which will hinder safe operation of your vehicle. VOLUME LEVELS IN A CAR MAY ALSO CAUSE HEARING • This product may be used in conjunction with the Alpine KAC-001 DAMAGE. External Accessory Control module, which works with various accessory products manufactured by third parties.
  • Page 25 MINIMIZE DISPLAY VIEWING WHILE DRIVING. DO NOT INSTALL IN LOCATIONS WHICH MIGHT HINDER VEHICLE Viewing the display may distract the driver from looking ahead of OPERATION, SUCH AS THE STEERING WHEEL OR GEARSHIFT. the vehicle and cause an accident. Doing so may obstruct forward vision or hamper movement etc. and results in serious accident.

  • Page 26: Usb Flash Drive Operation (Optional)

    If you have problems, do not attempt to repair the unit yourself. The wiring and installation of this unit requires special technical Return it to your Alpine dealer or the nearest Alpine Service Station skill and experience. To ensure safety, always contact the dealer for servicing.

  • Page 27: Pandora® Internet Radio Operation (Optional)

    Microsoft Corporation in the United States and/or other countries. Alpine accepts no responsibility for lost data, etc., even if data, etc., is • Apple, iPhone, iPod, and iPod touch are trademarks of Apple lost while using this product.

  • Page 28: Features

    Features The screen design used in the Owner’s Manual may differ from the actual screen. Favorite Function Frequently used functions can be easily recalled. For details, see “Favorite Function” (page 21). Favorite screen example • Frequently used functions and useful functions can be customized for your convenience. •...

  • Page 29: Switching The Audio Sources Screen To A Dedicated Screen

    Switching the Audio Sources Screen to a Dedicated Screen You can switch the Audio Sources screen to a dedicated screen by touching the icon on one of the three edges of the screen, or by swiping vertically or horizontally. For details on how to swipe the screen, see “Touch Screen Operation” (page 14). •...

  • Page 30: Getting Started

    Getting Started Turning Power On or Off Some of this unit’s functions cannot be performed while the vehicle is in motion. Be sure to stop your vehicle in a safe location and apply the Location of Controls parking brake, before attempting these operations. Turn the ignition key to the ACC or ON position.

  • Page 31: Initial System Start-Up

    Initial System Start-Up Touch Screen Operation Be sure to press the RESET switch when using the unit for the first time, You can operate the system by using the touch panel on the screen. after changing the car battery, etc. •...

  • Page 32: Switching Sources

    Switching Sources Operating the Function Button on the Audio/ Video Main Screen Switching Sources from the Menu screen Using the Function button on the Audio/Visual main screen. Press the (MENU) button. The menu screen is displayed. Touch [ ] to change to the Function mode. •...

  • Page 33: About Basic Operation For List Screen

    About Basic Operation for List Screen About the Shortcut Setup Screen Basic operations on the Setup list screen and the Search list screen. Displaying the Sound Setup screen. How to display on the list screen differs depending on the selected item. Touch the upper part of the Audio source screen or swipe downward.

  • Page 34: Sound Setup Function

    Adjusting Bass Level/Treble Level Sound Setup Function Bass Level and Treble Level can be set independently set for Front and Rear speakers by touching [Front] or [Rear]. Tone Adjustment mode Setting item: Bass / Treble Setting contents: -14 to +14 (Initial setting: 0) •...

  • Page 35: About The Menu Screen

    *3 Use to display the Facebook Notification List on the connected smartphone via this unit. (page 25) Displays when Alpine TuneIt App is set to “USB (iPhone)” or “Bluetooth (Android), ” and when a smartphone with Alpine TuneIt App installed is connected. (page 24) *4 Displays the Android Auto screen, displayed when an Android Smartphone installed Android Auto App is connected.

  • Page 36: About The Indicator Display

    About the Indicator Display Opening screen Customization The Indicator Bar at the bottom of the screen displays various types of You can set a BMP image that is stored on a USB flash drive as the information, like the current time. opening screen.

  • Page 37: How To Input Characters And Numbers

    How to Input Characters and Numbers (Keypad) The displayed screens and procedures may vary slightly depending on the function used, but the basic input method is the same. Input screen area. Cursor position alteration switch Cancel Keypad mode finishes. (Delete) Returns to the previous character and erases it.

  • Page 38: Favorite Function

    Favorite Function Editing the Favorite Screen You cannot edit the Favorites screen while driving. Using the Favorite Function Your vehicle must be parked with the ignition key in the ACC or ON position. For details, see “To display the Setup Menu screen” in “Setup Operation”...

  • Page 39: Changing Item Names

    Audio/Visual Changing Icons (only the Shortcut Dialing [Radio]* / [USB/iPod] / [Factory Media (USB/iPod)]* / [HDMI/DVD] / icons) 2, 3 [Pandora] / [Bluetooth Pandora] / [SiriusXM]* or [Factory SiriusXM]* [AUX]* / [Bluetooth Audio] / [Apple CarPlay]* / [Android Auto]* You can change the icons of Shortcut Dialing category. The following example explains how to change the Shortcut Dialing *1 You can choose the frequency from Preset 1 - 12, registered into each icon.

  • Page 40: Deleting Items

    Deleting Items When deleting a selected item Touch the checkbox at the left of the item you want to delete and place a check ( ) in it. Touch [ ] (Delete). The selected item will be deleted. When deleting all items Touch [ ] (Delete All).

  • Page 41: Applying Alpine Tuneit App

    Notifications button deleted or terminated without notice. Touch to switch to Notifications List screen. • Some Alpine TuneIt App functions may not be available if the Close button Smartphone is not in a service area or receives no signal. Close the notification screen.
  • Page 42 Displaying Facebook Screen During Notification incoming or Notification List screen, you can switch to Facebook screen. Facebook screen example Message content Poster’s photo Close button: Close the Facebook screen. Touch the poster’s picture and name to switch to the Facebook screen. The detailed information of Notification is displayed.

  • Page 43: Setup

    Touch the required setting icon on the upper part of the Setup Setup main screen or swipe the list area vertically, then touch the setting item. Setting items: Wireless: See “Wireless (Bluetooth) Setup” (page 27). Setup Operation General: See “General Setup” (page 29). Source: See “Source Setup”...

  • Page 44: Wireless (Bluetooth) Setup

    Wireless (Bluetooth) Setup Bluetooth Setup [Wireless] is selected on the Setup main screen in step 3. See “Setup [Bluetooth] is selected on the Wireless Setup Menu screen in step 1. See Operation” (page 26). “Wireless (Bluetooth) Setup” (page 27). You can register and set up Bluetooth compatible devices. Wireless Setup Menu screen Setting item: <Setting items>...

  • Page 45: Hands-Free Device Primary/Secondary Setting

    Touch [ ] (Audio), [ ] (Hands-free) or [ ] (Both) Hands-free Device Primary/Secondary Setting of the device you want to connect from the list. Make sure the “Bluetooth” setting is “On” ( ). See “Bluetooth Setup” Audio: Device is used as an Audio device. (page 27).

  • Page 46: Changing The Character Code Of The Phone

    Changing the Character Code of the Phone General Setup Book [General] is selected on the setup main screen in step 3. See “Setup You can select the character code that is used when transferring the Operation” (page 26). phone book or history from a mobile phone. If unreadable characters appear in the transferred data, select the correct character code.

  • Page 47: Sound Setup

    *1 You can make this setting in the Sound Setup screen of the Shortcut Fad./Bal. screen Setup. For details, see “Sound Setup Function” (page 17). *2 You can also make the setting in the Bal./Fad. screen. For details on how to adjust, see “Setting the Balance/Fader/Rear Speaker/Subwoofer”...

  • Page 48: Setting The Media Xpander (Mx Hd)

    Setting the Media Xpander (MX HD) Equalizer Presets Media Xpander (MX HD) makes vocals or instruments sound distinct 10 typical equalizer settings are preset at the factory for a variety of regardless of the music source. The HD-Radio Technology (FM)/ musical source material.

  • Page 49: Adjusting The Crossover Settings

    Adjusting the Frequency Adjusting the Crossover Settings (X-Over) Touch [ ] or [ ] of “Frequency” to adjust the frequency of the selected band. Before performing the following procedures, see “About the Crossover” (page 34). Adjustable frequency bands: 20 Hz to 20 kHz (in 1/3 octave steps) Setting item: Band1: 20 Hz~100 Hz (63 Hz)

  • Page 50: Adjusting The Time Correction (Tcr)

    Adjusting the Time Correction (TCR) Setting the Volume for Each Source Before performing the following procedures, see “About Time Setting item: Source Volume Setup Radio / SiriusXM / Compressed Media* Correction” (page 35). 2, 3 iPod Music / AUX* / HDMI* / Bluetooth Audio / Factory Audio* Setting item: Apple Carplay*...

  • Page 51: Adjusting The Ring Tone Level

    Adjusting to a frequency range outside that recommended may cause damage to the speakers. For the recommended crossover frequencies of Alpine speakers, refer to the respective Owner’s Manual. We are not responsible for damage or malfunction of speakers caused by...

  • Page 52: About Time Correction

    Example 2. Listening Position: All Seats About Time Correction Adjust the time correction level of each speaker to almost the same level. The distance between the listener and the speakers in a car vary widely due to the complex speaker placement. This difference in the distances Sit in the listening position (driver’s seat, etc.) and from the speakers to the listener creates a shift in the sounds image and measure the distance (in meters) between your head and...

  • Page 53: Language Setting

    Adjusting Brightness Language Setting Setting item: The Setup menu, feedback information, etc. for this unit can be changed Brightness Setting content: to appear in the selected language. -15 to +15 (Initial setting: 0) Setting item: You can adjust the brightness between MIN (-15) and MAX (+15). Language (Language When it reaches the minimum or maximum point, the display shows...

  • Page 54: Display/Key Setup

    Switching the Display Color Display/Key Setup You can choose from 8 different display colors. [Display/Key] is selected on the General Setup Menu screen in step 2. Setting item: See “General Setup” (page 29). Screen Color You can set up the brightness, color, display, etc., of the screen. Setting contents: Blue/Light blue/Aqua/Red/Light Green/Green/Amber/White Screen/Lighting Customize...

  • Page 55: General Setup

    You can view the version information of this product. Make note of this Format settings information and refer to it whenever you contact Alpine Tech Support or an Alpine-authorized dealer. The character code to be used for tag text information displayed on the Setting contents: screen can be selected from 7 character codes.

  • Page 56: Vehicle Setup

    Source Setup Vehicle Setup [Source] is selected on the Setup main screen in step 3. See “Setup [Vehicle] is selected on the General Setup Menu screen in step 1. See “General Setup” (page 29). Operation” (page 26). Source Setup Menu screen Steering wheel Setting Set this item when an iPhone 5 or later/Android smartphone with Android Auto App is connected.

  • Page 57: Radio Setup

    Setting the Alert individually for an Artist/ Radio Setup Song/Favorite Team [Radio] is selected on the Source Setup Menu screen in step 1. See This menu option allows you to enable the Artist/Song/Team alert for “Source Setup” (page 39). individual Artists/Songs/Teams (On or Off) or to delete individual stored Artist/Song/Team alerts (Delete).

  • Page 58: Setting The Favorite Sports Team Alerts

    Touch the numeric keypad to input a 4-digit passcode. Setting the Favorite Sports Team Alerts The initial default 4-digit passcode is set to 0000. After entering the digit, it is displayed as “*” (asterisk). This menu option allows you to select your favorite teams, organized by •...

  • Page 59: Aux Setup

    AUX Setup HDMI Setup [AUX] is selected on the Source Setup Menu screen in step 1. See [HDMI] is selected on the Source Setup Menu screen in step 1. See “Source Setup” (page 39). “Source Setup” (page 39). You can set up the items related to the Auxiliary device. You can set the name of an external device connected via HDMI.

  • Page 60: System Setup

    Adjusting the Rear Camera Guide *1 When Camera Select is set to “Off, ” you cannot select this item. *2 Set this setting after closing the Alpine TuneIt App. You can adjust the camera guide position. The following steps 1 to 3 are common to each “Setting Setting item: item”...

  • Page 61: Camera Interrupt Setting

    Rear Camera screen example When Hitch Guide is set to On When Hitch Guide is set to Off Turning Guide Display On/Off • You cannot adjust the position of the yellow guide line “ ” in Turning the selected guide off. the center independently.

  • Page 62: Setting The Source Category

    Setting the Source Category External Accessories Setup You can set whether the following source icon in the Menu screen is [External Accessories] is selected on the System Setup Menu screen in available. step 1. See “System Setup” (page 43). Setting item: USB/iPod (Initial setting: Both) / SiriusXM (Initial setting: Aftermarket) Setting the External Audio Processor Setting contents:...

  • Page 63: Smartphone Apps Setup

    [Smartphone Apps] is selected on the System Setup Menu screen in step 1. See “System Setup” (page 43). Set Alpine TuneIt App to USB (iPhone) when an iPhone is connected, or set to Bluetooth (Android) when an Android Smartphone is paired.

  • Page 64: Apple Carplay (Optional)

    Apple CarPlay Android Auto (Optional) (Optional) Apple CarPlay is a smarter, safer way to use your iPhone in the car. Apple CarPlay takes the things you want to do with your iPhone while What is Android Auto driving and puts them right on the unit. You can get directions, make calls, send and receive messages, and listen to music, all in a way that Android Auto is designed to make it easier to use apps from your phone allows you to stay focused on the road.

  • Page 65: Radio/Hd Radio™/Rbds

    Info area Radio/HD Radio™/ RBDS Station Info. mode: Program Type /Frequency and PS Name/Artist Name/Song RBDS Name/Album Name Radio Text mode: Frequency/ Radio Text The unit can receive HD Radio broadcasting signals based on digital • For details on switching the display of the Radio text, see radio broadcast standards, in addition to analog radio broadcasts using “Displaying Radio Text (RBDS FM Radio mode only)”...

  • Page 66: Radio Basic Operation

    Radio Basic Operation Presetting Stations Manually Tune in a desired radio station you wish to store in the Listening to the Radio preset memory by manual or automatic seek tuning. Touch the Preset number you want to store, for at least Press the (MENU) button and select radio mode.

  • Page 67: Inputting Frequency Directly And Receiving The Radio Station

    Inputting Frequency Directly and Receiving the Selecting the Receivable Program Type (RBDS Radio Station FM Radio mode only) You can input a frequency of the same band directly and receive the You can select and receive the currently receivable stations in the radio station.

  • Page 68: Using Ballgame Mode

    Using Ballgame Mode (HD Radio™ Mode only) In live broadcast, such as sportscasts, etc., a time lag occurs between digital sound and analog sound. Therefore, when live broadcasts are received, a time lag between the real broadcast may occur and the unit can change to analog broadcasting automatically.

  • Page 69: Usb Flash Drive (Optional)

    USB Video main screen example USB Flash drive (Optional) You can play back music files (MP3/WMA/AAC/FLAC) and video files (AVI/MKV/MP4) stored in a USB flash drive on the internal player of this system. WARNING It is dangerous for the driver to watch video while driving the vehicle.

  • Page 70: Playback

    Playback Stopping Playback (USB Video only) Touch [ ] during playback. Press the (MENU) button and select USB mode. “STOP” indicator is displayed, and playback stops. The display shows the USB mode screen. • Playback starts from the beginning when [ ] is touched while •...

  • Page 71: Switching Display Modes

    Full Search mode Touch [Audio] or [Video] to switch whether the search list displays music files or video files. Touch your desired Folder name* or File name. When you select a File name, the selected song is played. When you select a Folder name, repeat the same procedure to select another Folder name or File name.

  • Page 72: Ipod/Iphone (Optional)

    Function mode iPod/iPhone (Optional) Artwork display • You can change the artwork position. For details, see “Switching the Artwork Position” (page 37). A separately sold Lightning to USB cable (KCU-471i), etc., is required. Current song no./Total song no. When the unit is connected by the above cable, the controls on the iPod Artist title/Release Date* are disabled.

  • Page 73: Playback

    Quick Search Mode Playback In Quick Search mode, the list from the previous search mode is displayed. For example, if the last time you searched for songs was is in Press the (MENU) button and select iPod mode. Albums, the Album list is displayed. If you have not used the search The display shows the iPod mode screen.

  • Page 74: Alphabet Search Function

    Alphabet Search Function Repeat Play The unit is provided with an alphabet search function for effective Touch [ ] to repeatedly play back the currently track. searching. When you use this function in the search mode, you can The tracks (files) will be played repeatedly. Touch [ ] again to deactivate Repeat play.

  • Page 75: Pandora® Internet Radio (Optional)

    Listening to Pandora® USB port and change the Audio source from Bluetooth Audio, set “Alpine TuneIt App” to “USB (iPhone)” or “Off. ” For more details, see “Pairing a Bluetooth Device” (page 27) and “Smartphone Apps Setup” Launch the Pandora® on the smartphone.

  • Page 76: Thumbs" Feedback

    “Thumbs” Feedback Creating a New Station You can personalize your stations with “Thumbs Up” or “Thumbs Basing on the currently playing song or artist, a personalized Pandora Down” feedback, which the system takes into account for future music station can be created. The new station will play more music like it. selections.

  • Page 77: Connecting A Bluetooth Device

    Connecting a Bluetooth Device (Bluetooth Pandora® Only) Registering a Bluetooth device in the unit enables automatic connection. If it does not connect automatically, run through the connection procedure again. Touch [ ] (Settings). The Device Setting select pop up screen is displayed. Touch [Reconnect].

  • Page 78: Siriusxm Satellite Radio Operation

    < During Replay mode > SiriusXM Satellite Radio Operation Signal Indicator Indicates the signal strength of SiriusXM. Info area (Optional) Channel Info. Mode*: Channel No/Long Channel Name/Category Name Song Info.Mode: SiriusXM Tuner operation: Artist Name/Song Name/Content Info When an optional SiriusXM Tuner is connected to this unit, the Album Art following operations may be performed.

  • Page 79: Tuner

    Select the desired channel. Receiving Channels with the SiriusXM Tuner Changing the Display About SiriusXM Satellite Radio Only SiriusXM® brings you more of what you love to listen to, all in one place. Get over 140 channels, including commercial-free music plus the Text information, such as the channel name, artist name/feature, and best sports, news, talk, comedy and entertainment.

  • Page 80: Smartfavorites Functions

    Touch [ ] (TuneScan). SmartFavorites Functions The [ ] (TuneScan) icon is highlighted during TuneScan mode. SmartFavorites allow you to rewind and replay any missed Touch [ ] (TuneScan) during scan playback, programming from your current Band of Preset channels. Miss a music, TuneScan mode will be canceled and the selected track news, talk or sports segment? No Problem, because you can rewind and will be played back normally.

  • Page 81: Selecting The Channel Directly

    Searching by My Music Touch the “Artist Saved” or “Song Saved” to choose to store the Artist or the Song. Touch [My Music]*. Total registrations and Remaining number of registration slots is The artist names and song titles that you have stored and are displayed for 2 seconds, then the Artist or Song is registered as currently playing will be displayed in a list.

  • Page 82: Replay Function

    Replay Function Using Jump Memory and Jump Recall function In SiriusXM mode, you can pause, rewind and replay live Satellite Radio. The Jump Channel is a special channel that you can jump to with the press of a dedicated button and then jump back to the previous channel. Replay mode screen example This channel is often used to select your favorite SiriusXM traffic and weather report channel.

  • Page 83: Hdmi Device (Optional)

    Smartphones). When making HDMI connections, you need to set this unit. HDMI on the unit suitable for the connected device. For details, see • Use only the Alpine Special HDMI connection cable. “HDMI Setup” (page 42). Press the (MENU) button and select HDMI mode.

  • Page 84: Bluetooth Operation

    Phone Book. When 60 of printing. items exist in the list, the oldest item is deleted when a further Alpine reserves the right to change or modify any information or item is to be added. specifications without notice or obligation.

  • Page 85: Answering A Call

    Answering a Call Call Waiting Function Incoming calls are announced by the received call ring tone and a If a call comes in from another phone during a call, a notice is displayed displayed message (PHONE No., etc.). on the screen. This function can only be used if the connected mobile phone has a call waiting function service included.

  • Page 86: Calling

    Second incoming call during a conversation in the Phone Making a phone call using the Phone Menu Operation screen • The display or operation may differ depending on the connected mobile Making a phone call from the Recent Events list phone or the caller’s mobile phone.

  • Page 87: Using Voice Recognition Function

    Enter the phone number you wish to call. Stopping input to the microphone • You can enter up to 31 digits. If the surrounding sound (road noise, etc.) is loud, you may wish to cut input to the microphone for 3 seconds. Touch [ ] (Call).

  • Page 88: Operations During A Conversation

    Operations During a Conversation Phone Book Function Phone Operation screen Phone Book screen example Name and phone number • If registered with a Group, the Group Name is also displayed. Use to search by directly inputting a name or phone number Although, depending on the connected mobile phone, it may not with the Keypad.

  • Page 89: Deleting The Phone Book Entries

    Deleting the Phone Book Entries Bluetooth Audio Deleting One Entry from the Phone Book If a Bluetooth compatible mobile phone, portable player, etc. is connected by wireless, you can play back a song (operation is Touch [ ] (Edit). controllable from the unit). Touch the checkbox [ ] of the contact name (or phone •...

  • Page 90: Playback

    Playback Random Play Available for AVRCP Ver. 1.3, 1.4 and 1.5 only. Press the (MENU) button and select Bluetooth Audio mode. Touch [ The display shows the Bluetooth Audio mode screen. The Random Play mode select pop up screen is displayed. •...

  • Page 91: Connecting A Bluetooth Device

    Connecting a Bluetooth Device Registering a Bluetooth device in the unit enables automatic connection. If it does not connect automatically, run through the connection procedure again. Touch [ ] (Settings). The Device Setting select pop up screen is displayed. Touch [Reconnect]. Bluetooth connection will start.

  • Page 92: Auxiliary Device (Optional)

    Operating an AUX, AUX DVD or GAME Auxiliary Device Example for AUX, AUX DVD, GAME mode display (Optional) Operating Auxiliary Devices (Optional) To operate devices connected to the AUX terminals of the unit, follow the procedure described below. • Set AUX to “On. ” See “AUX Setup” (page 42). •...

  • Page 93: Camera Operation (Optional)

    Guide Display ON/OFF Setting Camera Operation Touch the screen when the image from the camera is (Optional) displayed. The operation screen is displayed on the screen. • After a 5-second time-out, the operation screen returns to the camera display screen. When an optional rear camera is connected, the view video of camera can be output to the monitor.
  • Page 94 Distance guidance marks When there is a steep upward slope behind the car The marks represent the distance from the rear of the car (from (example) the rear end of the bumper). <Screen> • The marks do not move in synchronization with the steering wheel.

  • Page 95: Idatalink Operation

    iDataLink Function Screen example iDataLink Operation Climate screen example You can control the temperature inside the vehicle, etc. When the unit is connected to the car’s iDataLink module, you can transfer and receive data between the car and the unit to check the car’s status, or to make various operations from the unit.

  • Page 96: About Parking Sensor Screen

    Vehicle Information screen example Parking Sensor Camera interlock screen example (Rear camera) You can check for open doors, check the tire pressure, the battery life, You can check for obstacles through an interlocked camera image by etc. for the vehicle. connecting a Rear Camera.

  • Page 97: External Accessory Control Operation

    When changing the name: External Accessory Control Operation Touch the icon name, then input characters into Edit Name (Keypad). You can also select a basic name from the [Template] of the Keypad. For details on how to input characters using the You can set the headlights to ON/OFF or adjust the air suspension from keypad, see “How to Input Characters and Numbers (Keypad)”...

  • Page 98: Product Software Update

    About the software license of the product Supported playback sampling rates and bit rates The software installed in the product contains open-source software. See the following Alpine website for details on the open source software. MP3 (USB Flash drive/Disc) Sampling rates: 48 kHz, 44.1 kHz, 32 kHz, 24 kHz, 22.05 kHz, 16 kHz,...
  • Page 99 Corresponding File Systems Terminology This device supports FAT 16/32. Bit rate The maximum nested folder depth is 8 (including the root This is the “sound” compression rate specified for encoding. The higher directory). File names are limited to 256 characters (including the the bit rate, the higher the sound quality, but also the larger the files.

  • Page 100: In Case Of Difficulty

    • If the area you are in is a primary signal area, the antenna may properly connected, or then consult your authorized not be grounded and connected properly. Alpine dealer. - Check your antenna connections; make sure the antenna is properly grounded at its mounting location.

  • Page 101: If This Message Appears

    Bluetooth If this Message Appears Please connect a Bluetooth audio device. • The Bluetooth audio device was not connected correctly. Various messages are displayed on the screen during operation. In - Check the settings for the unit and the Bluetooth audio device addition to the messages telling you the current status or providing and reconnect.

  • Page 102: Specifications

    • “Setting the External Audio Processor” (page 45) is “On. ” - When “External Audio Processor” (page 45) is set to “On, ” you GPS SECTION cannot perform Sound Tuning from the Alpine TuneIt App. Set “External Audio Processor” to “Off ” to perform Sound Tuning GPS Reception frequency 1,575.42 ±1 MHz...
  • Page 103 Bluetooth SECTION Bluetooth Specification Bluetooth V3.0 Output Power +4 dBm Ave. (Power class 2) Profile HFP (Hands-Free Profile) OPP (Object Push Profile) PBAP (Phone Book Access Profile) A2DP (Advanced Audio Distribution Profile) AVRCP (Audio/Video Remote Control Profile) SPP (Serial Port Profile) GENERAL Power Requirement 14.4 V DC...
  • Page 104 ˜ Before you use this product, be sure to carefully read this installation manual and the separate user's manual so that you can use the product correctly. Alpine Electronics bears no responsibility for problems that arise as a result of failure to follow the instructions in the manuals.
  • Page 105 Toyota Tacoma iLX-F309TCM ˜ 2/19 Tools Required Panel Removing Tool 10mm Sockets Phillips Screwdriver Wire Cutters Extension Ratchet Accessory List Installation Kit Parts iLX-F309TCM Radio Mounted In Tacoma SR/SR5 Radio Bezel Main Harness With Maestro Dash Bezel Module Plugged In...
  • Page 106 OBDII Adapter Cable FM Antenna Adapter GPS Antenna Adapter Satellite Radio Antenna Adapter OEM USB Adapter Low Level RCA Adapter Cable Ties x 10 USB Extension Harness Aux/Preout Harness Documents Phillips Screws x 1 Quick Reference Alpine Guide Registration Card...
  • Page 107 Toyota Tacoma iLX-F309TCM ˜ 4/19 Programming the iDatalink Maestro Module The Maestro module is pre-flashed already. This page REGISTER A WEBLINK ACCOUNT is here in case the module needs to be flashed again. Go to: idatalinkmaestro.com/register and complete the registration process. INSTALL THE WEBLINK PLUG-IN Go to: A confirmation email will be sent to you requiring validation.
  • Page 108 Toyota Tacoma iLX-F309TCM ˜ 5/19 Factory Unit Disassembly Process Use a panel removal tool to release clips of the Use a 10mm socket to extract (4) 10mm screws radio bezel and remove it. from the factory radio, disconnect and remove it. Use a 10mm socket to extract the screw from the A Use a panel removal tool remove the driver’s side A pillar panel cover.
  • Page 109 Toyota Tacoma iLX-F309TCM ˜ 6/19 Factory Unit Disassembly Process (Continued) Remove the plastic nut on the driver’s kick panel Extract (3) 10mm screws from the driver’s side knee and carefully lift it to remove it. cover, release the clips and remove it. SR &...
  • Page 110 Toyota Tacoma iLX-F309TCM ˜ 7/19 Installation Instructions Mount the microphone next to the eyewear Connect the Black OBD2 adapter to the White compartment with the provided Phillips screw. OBD2 port below the driver’s knee cover. Connect the FM, GPS, SAT Radio Antenna and USB Route the microphone down to the OBD2 connector adapters.
  • Page 111 Toyota Tacoma iLX-F309TCM ˜ 8/19 Installation Instructions (Continued) Snap the radio bezel back in place. Insert the iLX-F309 display into the source unit Use a piece of double sided tape on a ¼” drive Use a long magnetized Phillips screwdriver to extension (or any other hand tool with a flat side) to secure the display to the source unit using the slide screw cover into place.
  • Page 112 Toyota Tacoma iLX-F309TCM ˜ 9/19 iLX-F309TCM Wiring Diagram W/O Factory Amplifier To Vehicle Connectors To OBDII Connector 24-pin 28-pin Power/Speaker Rear Speaker Connector Connector 10-pin Connector 6-pin Connector Black Used Used Used Reset Button 10-Pin Chime 18-Pin Connect to White GPS Antenna Connector iDatalink MAESTRO Module USB Adapter...
  • Page 113 Toyota Tacoma iLX-F309TCM ˜ 10/19 iLX-F309TCM Wiring Diagram With Factory Amplifier To Vehicle Connectors To OBDII Connector 24-pin 28-pin Power/Speaker Rear Speaker Connector Connector 10-pin Connector 6-pin Connector Black Used Used Used Reset Button 10-Pin Chime 18-Pin Connect to White GPS Antenna Connector iDatalink MAESTRO Module USB Adapter...
  • Page 114 Toyota Tacoma iLX-F309TCM ˜ 11/19 Connection Of An External Amplifier RCA Extension Cable (sold separately) Remote Turn-On Lead (Blue/White) CAN I/F HDMI IN Subwoofer RCA Connectors SXM/DAB Front Output RCA Connectors PRE OUT W.REMOTE POWER Rear Output RCA Connectors ANTENNA REMOTE ON (Blue/White) REMOTE ON...
  • Page 115 Toyota Tacoma iLX-F309TCM ˜ 12/19 iLX-F309TCM HDMI Input Do not use the head unit’s iLX-F309 Source Unit USB to power HDMI devices. This port is meant for Apple CAN I/F CarPlay, Android Auto, and USB ash drives. HDMI IN SXM/DAB PRE OUT EXT.
  • Page 116 Toyota Tacoma iLX-F309TCM ˜ 13/19 iLX-F309TCM Wiring Diagram To SiriusXM Tuner Vehicle Antenna GPS Antenna (Included) SPEED SENSOR To the vehicle speed pulse line (Green/White) CAMERA To Front, Rear or Side camera IDATALINK I/F To iDataLink module AUX INPUT To AUX output device or iDataLink module REMO To ampli er or equalizer...
  • Page 117 Toyota Tacoma iLX-F309TCM ˜ 14/19 Wire Harness Pin Outs Remote Harness Radio Main Cam Aux Data White 22AWG Blue 22AWG Yellow 22AWG Black 22AWG Red 20AWG Red 22AWG Black 22AWG Blue/White 22AWG White 22AWG Orange/White 22AWG White 22AWG Yellow/Blue 22AWG Black 22AWG Purple 20AWG Gray 20AWG...
  • Page 118 RCA input. If the vehicle has an OEM camera that would plug into the “Other” port. You can’t use a direct to RCA adapter for it.For the front camera an Alpine camera with the direct connection is recommended. Using a 3rd party camera with a direct to RCA adapter can’t be guaranteed to work.
  • Page 119 Toyota Tacoma iLX-F309TCM ˜ 16/19 Connection Of KAC-001 (Sold Separately) KAC-001 Side View POWER RESET HEADUNIT OUTPUT UPDATE Reset USB port Button (Firmware updates only) Output 1 (Purple) BATT* (Yellow) Output 2 (White/Red) ACC (Red) Output 3 (Brown) GND (Black) Output 4 (Blue) *Fuse Rating: 7A Output 5 (Green)
  • Page 120 Toyota Tacoma iLX-F309TCM ˜ 17/19 Steering Wheel Configuration Volume Up Left Volume Down Enter Right Down Voice Back Mode/Hold MODE HOLD Off Hook On Hook Button Press Once Press And Hold Volume Up Volume + None Seek + Preset & Folder + Volume Down Volume - Attenuation On/Off...
  • Page 121 HDMI. Do not plug into the USB from the Alpine Didn’t plug USB power into a 2A head unit. A third party USB adapter will source. need to be used that is 2A.
  • Page 122 Toyota Tacoma iLX-F309TCM ˜ 19/19 Troubleshooting Guide Continued Symptom Possible Cause Remedy Incorrect serial number was used Flash Maestro with correct serial number. when flashing maestro. 4 pin Maestro data cable is Check for proper connection or disconnected or damaged. disconnected pins.

  • Page 124: Limited Warranty

    ALPINE ELECTRONICS OF AMERICA, INC. (“Alpine”), is dedicated to quality craftsmanship and is pleased to offer this Warranty. We suggest that you read it thoroughly. Should you have any questions, please contact your Dealer or contact Alpine at one of the telephone numbers listed below.
  • Page 125 N’oubliez pas de consacrer un moment à la protection de votre achat en enregistrant votre produit dès maintenant à l’adresse suivante : www.alpine-usa.com/registration. Recuerde que con solo unos pocos pasos podrá proteger su producto, registrándolo a través de la siguiente...

This manual is also suitable for:

Halo9 ilx-f309Halo9 ilx-f309tcm

Table of Contents
