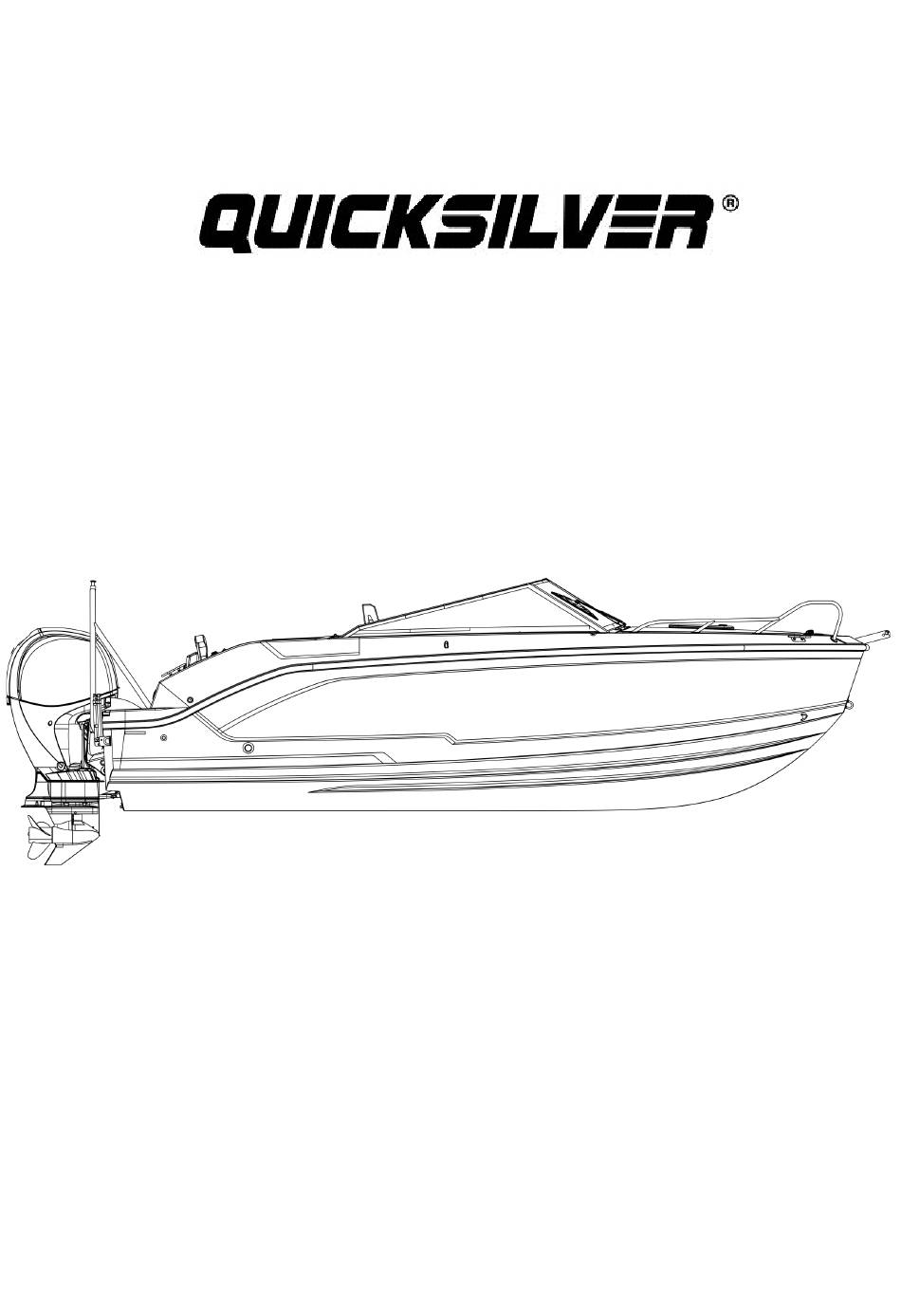

- Page 1 605CR Owner’s Manual...
- Page 3 Welcome Congratulations on becoming a new owner of a Quicksilver® boat. This Owner’s Packet will provide important information about the features of your boat and should be, at all times, kept aboard your boat. Take time to carefully review the information in this packet to really get to know your boat.
- Page 4 Information in this publication is based upon the latest production specifications available at printing. Quicksilver® reserves the right to make changes at any time, without notice, in the colors, equipment, specifications, materials and prices of all models, or to discontinue models. Should changes in production models be made, Quicksilver®...
-
Page 5: Table Of Contents
Table of Contents Introduction 5. Carbon Monoxide ........19 1. Owner’s Manual ..........vi 6. Steering ............21 2. Your Responsibilities ........vi 7. Engine Controls ..........22 3. Safety / Warning Labels ........ vi 8. Emergency Engine Shutdown Switch ... 22 4. -
Page 6: Introduction
Introduction 1. Owner’s Manual The material here and the rest of the Owner’s manual packet: • Gives you basic safety information • Describes the fundamentals of boat use • Describes the features of your boat • Describes the equipment on your boat •... -
Page 7: Dealer Responsibilities
CIN Locations 6. Warranty You will find information regarding the Quicksilver® warranty following the introduction. A warranty information card is also included in the owner information packet. If for some reason this information is missing, contact your Quicksilver® dealer. - Page 8 This Limited Warranty does not apply to any Quicksilver® which has been salvaged or declared a total loss or a constructive total loss for any reasons not covered in this Limited Warranty. This Limited Warranty also does not apply to the following items: 1.
- Page 9 Limited Warranties stated. To the extent allowed by law neither Brunswick Marine in EMEA, not the selling dealer shall have any responsibility of the loss of use of the Quicksilver®, loss of time, inconvenience, commercial loss or consequential damages.
- Page 10 Limited Warranty, and the owner must notify Brunswick Marine in EMEA of any Quicksilver® being repaired by an authorized Brunswick Marine in EMEA dealer which has been at the dealership for fifteen (15) days, or of any claimed defect which was not corrected after one (1) repair attempt.
- Page 11 Limited Warranties stated. To the extent allowed by law neither Brunswick Marine in EMEA, not the selling dealer shall have any responsibility of the loss of use of the Quicksilver®, loss of...
- Page 12 Limited Warranty, and the owner must notify Brunswick Marine in EMEA of any Quicksilver® being repaired by an authorized Brunswick Marine in EMEA dealer which has been at the dealership for fifteen (15) days, or of any claimed defect which was not corrected after one (1) repair attempt.
-
Page 13: Basic Boat Dimensions & Specifications
Quicksilver® 605CR — General Information 1. Basic Boat Dimensions & Specifications Manufacturer: Brunswick Marine in EMEA Model: Quicksilver® 605CR Design Category: Length of Hull (L 5.76m Light Craft Mass (m 1370kg Length Overall (L 6.00m Maximum Load (m 656kg Length Overall (L 6.02m... -
Page 14: Vessel Stability
Quicksilver® 605CR — General Information 2. Vessel Stability The following maximum load has been used for assessing the stability and buoyancy comprising • Manufacturer’s maximum recommended load per ISO 14946 656kg • Fuel, fresh water, other fluids to maximum capacity of fixed tanks... -
Page 15: Passenger Locations
Quicksilver® 605CR — General Information 4. Passenger Locations Be aware of your footing while the boat is underway. Gelcoat surfaces are slippery when wet. Use extreme Slipping or falling could result in serious injury or death, caution when walking on wet surfaces. -
Page 16: Safety Label Locations
Quicksilver® 605CR — General Information 6. Safety Label Locations... -
Page 17: Deck Layout (Standard Equipment)
Quicksilver® 605CR — General Information 7. Deck Layout (Standard Boat) Anchor roller Anchor line hatch Navigation lights (P&S) Bow cleat (P&S) Bow rail (P&S) Foredeck Cabin hatch Windshield Port windshield walkthrough Foredeck steps Fender cleat (P&S) Cup holder (P&S) Port seat Fender storage (P&S) -
Page 18: Deck Layout (Optional Equipment)
Quicksilver® 605CR — General Information 8. Deck Layout (Optional Equipment) Anchor hatch cushion Ski arch Forward sun deck cushion Potable water fill Port sun deck cushion Refrigerator Starboard sun deck cushion Center sun deck cushion Flexiteek Bimini / Enclosure Teak table... -
Page 19: Thru Hull Locations
Quicksilver® 605CR — General Information 10. Thru Hull Locations Bilge pump drain Fuel tank vent Cockpit floor drain Line locker drain Motorwell drain Garboard drain plug Water tank vent Depending on the type of boat, you may have underwater The deck drains provide self-bailing capabilities while the fittings that need drain plugs. -
Page 20: Interior Liner Layout
Quicksilver® 605CR — General Information 11. Interior Layout Storage Interior step Filler board Forward storage access Table storage Bilge drain access Port interior cushion Interior filler cushion Starboard interior cushion Forward interior cushion Refrigerator (optional) Helm systems access LED light... -
Page 21: Dash Layout
Quicksilver® 605CR — General Information 12. Dash Layout (Standard Boat) SC1000 tachometer Hydraulic steering Steering wheel USB port Helm breaker panel Air temperature sensor Engine throttle shift control Engine shutdown switch Helm switch panel Engine key SC1000 speedometer Dash Layout (Optional Equipment) -
Page 22: Navigation Lights
Quicksilver® 605CR — General Information Please note that operator vision from the helm may be obstructed by high trim angles of the craft, along with other factors such as outboard engine trim angles, hull trim plane angles, loading and load distribution, speed &... -
Page 23: Engine
Operator’s Manual. Refer to the Engine Owner’s Manual for operating instructions and warranty information. The engines are warrantied directly by Mercury, not by Quicksilver®. 15. Trailering Quicksilver® does not offer a trailer for this boat, however, if you plan on purchasing one from another vendor, please consider the following: •... -
Page 24: Strong Points
The bow and stern eyes may be used for short term lifting of the boat only. Towing Quicksilver® does not recommend towing other boats, or being towed by other boats, unless it is absolutely necessary. In the event that it becomes necessary for you to have your boat towed, a professional company experienced in this type of operation is better equipped to handle this situation. -
Page 25: Swim Ladder
To deploy the ladder, simply rotate the ladder from the “stored” position into the water and extend the ladder rungs. Quicksilver® recommends that while other are in the water, the ladder remain deployed and useable at all times. -
Page 26: Fuel System
Fuel feed hose Fuel Tank The 605CR is equipped with a crosslink polyethylene fuel tank with a capacity of 160 liters. As a precaution, all of the capacity may not be useable due to trim and loading conditions, so consider keeping at a minimum 25% reserve fuel in the tank. - Page 27 Your boat was manufactured, and shipped from the factory with ethanol compatible materials. Before introducing petrol with ethanol into your fuel tank, ask your dealer if any components have been added or replaced that are not recommended by Quicksilver®, Mercury or may not be ethanol- compatible.
-
Page 28: Fresh Water System (Optional)
If equipped, the addition of an external fuel/water separator by Quicksilver® has been determined to be within Mercury specification and will not restrict the flow of adequate fuel to the engine. The filter is located on the port side of the vessel and can be accessed via the hatch located in the aft seat storage tub. -
Page 29: Bilge Pump
Quicksilver® 605CR — System & Component Overview and Operation Fresh Water System Water tank to water pump hose Water tank fill Water pump strainer Water tank fill hose Water pump Water tank Transom shower hose Water tank vent hose Transom shower... -
Page 30: Fire Prevention
Quicksilver® 605CR — System & Component Overview and Operation If water does not come out of the discharge hose: 1. Remove the motor module to see if the impeller rotates with the power on. 2. Remove any debris that may have accumulated in the nozzle section or strainer base. -
Page 31: Carbon Monoxide
Fire extinguisher 5. Carbon Monoxide Quicksilver® boats are equipped with carbon monoxide (CO) monitors in the cabin and enclosed berths or staterooms. Carbon Monoxide is an odorless, colorless, and tasteless, extremely toxic gas produced by engines, heaters, stoves or generators. When inhaled it combines with hemoglobin in the blood, preventing absorption of oxygen and is unlikely to be noticed until the person is overcome. - Page 32 Quicksilver® 605CR — System & Component Overview and Operation confused with seasickness or intoxication, so those affected may not receive the medical attention they need. The poisoning victim’s skin often turns cherry red. If CO poisoning is suspected, have the victim breath fresh air deeply.
-
Page 33: Steering
Quicksilver® 605CR — System & Component Overview and Operation Testing the CO Monitor Test the monitor on your boat at manufacturers required intervals by pushing the TEST button on the front of the unit. If the unit is operating correctly both audible and visual warning indicators will be activated. -
Page 34: Engine Controls
Quicksilver® 605CR — System & Component Overview and Operation Hydraulic Steering Steering wheel Helm pump Hydraulic fluid lines Steering cylinder 7. Engine Controls Your boat comes with a mechanical gear shift/throttle control unit, located to the starboard of the steering wheel, which activates both the shifting and throttle for the engine. -
Page 35: Smartcraft® Gauges
Quicksilver® 605CR — System & Component Overview and Operation Engine Controls Engine trim “Throttle Only” button Engine shutdown safety switch shut the engine off when the operator of the boat leaves the control station, either accidently by falling into the boat, or by being ejected overboard. -
Page 36: Stereo (Optional)
Bluetooth® settings. In certain countries, radio signals are broadcasted digitally. Quicksilver® offers a DAB antenna, where required, for reception of digital broadcast signals. -
Page 37: Cockpit Sun Lounge (Optional)
Your boat may come equipped with an optional ski tower for water skiing or wakeboarding. If you are tubing or engaging in other recreational towing, Quicksilver® recommends that you attach the tow rope to the stern eyes at the transom of your boat. -
Page 38: Canvas (Optional)
Quicksilver® 605CR — System & Component Overview and Operation Ski Tower Ski tower Only tow water skis or wakeboards. Do not tow parasails, kits, or other boats. Do not tow more than two persons at one time. Use caution with skier in tow as rope may snap back into cockpit when released. - Page 39 Quicksilver® 605CR — System & Component Overview and Operation Canvas Bimini Deployed Full Enclosure NEVER OPERATE THE VESSEL WITH THE CANVAS NEVER TRAILER WITH THE CANVAS BIMINI OR BIMINI WITH ENCLOSURE UNLESS THERE IS VENTILATION THROUGHOUT ENCLOSURE IN THE UPRIGHT POSITION.
-
Page 40: Dc Electrical
The battery voltage is indicated by the voltmeter screen located on the SmartCraft® tachometer. 2. Battery Quicksilver® recommends AGM type starting or a deep cycle battery for you boat. The battery must meet the minimum capacity required by the engine manufacturer. Refer to your engine owner’s manual for exact battery requirements. -
Page 41: Fuses And Breakers
The 605CR has a breaker panel at the helm, located below the steering wheel. There is also additional breakers located on the battery switch panel in the aft bench seat storage tub. -
Page 42: Electrical Schematics
These electrical schematics were generated by the Electrical Engineering Department for technical reference and service technicians. Quicksilver® does not recommend that you attempt to work on the boat’s electrical system yourself. Instead, we recommend that you take your boat to your local authorized Quicksilver®... - Page 43 Quicksilver® 605CR — Electrical Systems DC Wiring...
-
Page 44: Maintenance
If the growth is more severe, you may need to enlist the services of a professional hull cleaning company. Check with your Quicksilver® dealer for recommendations on a compatible rubbing compound for your boat or a professional hull cleaning company in your area. -
Page 45: Component Maintenance
Frequent routine cleaning of your stainless steel will help maintain the finish. Quicksilver® recommends that you wash stainless steel components with mild soap and cold or lukewarm water after every use of the boat. If added protection is necessary, apply a cleaning wax. - Page 46 Do not store any of the canvas pieces while wet. The effects of ultraviolet light can sometimes be reduced by chemical treatment of canvas items. Consult your Quicksilver® dealer or check your canvas manufacturer’s manual before using any chemical treatments on your canvas.
- Page 47 Quicksilver® 605CR — Maintenance Dry the window with a soft cloth or chamois to prevent water spots. Polish with a separate cloth. Do not leave cleaners on for long periods; immediately wash the window. Finally, do not apply cleaners in direct sunlight or at elevated temperatures.
- Page 49 Certify that I have received the Owner’s Manual for the following boat: Brand: __QUICKSILVER__ 605CR Model: Craft Identification Number (located on the starboard side of the transom): This small craft is covered by the warranty conditions cited in the information delivered with the craft.
