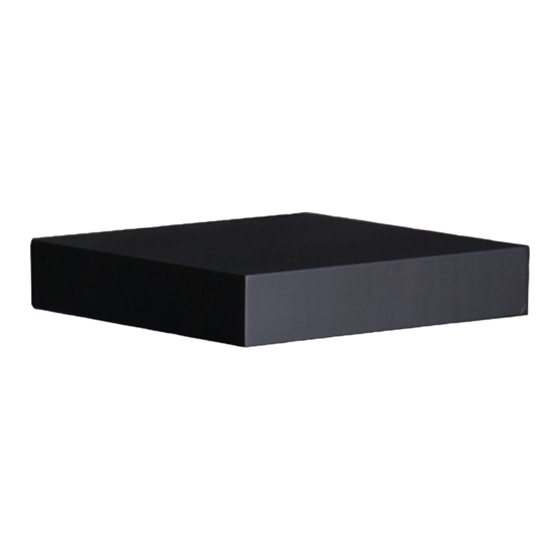

EN710100TX Chicago Floating Shelf 10"-
Chocolate
EN710200TX Chicago Floating Shelf 10"-
Black
For assistance with assembly contact:
EN710300TX Chicago Floating Shelf 10"-
Southern Enterprises Inc.
White
Customer Service 1-800-633-5096
service@seidal.com
Assembly Instructions
www.seidal.com
Max loading weight:20lbs
1
Advertisement
Table of Contents
Related Manuals for Southern Enterprises Chicago EN710300TX
Summary of Contents for Southern Enterprises Chicago EN710300TX
- Page 1 EN710100TX Chicago Floating Shelf 10”- Chocolate EN710200TX Chicago Floating Shelf 10”- Black For assistance with assembly contact: EN710300TX Chicago Floating Shelf 10”- Southern Enterprises Inc. White Customer Service 1-800-633-5096 service@seidal.com Assembly Instructions www.seidal.com Max loading weight:20lbs...
- Page 2 Chicago Floating Shelf 10" 111-100 CHICAGO FLOATING SHELF 10" BLACK Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
- Page 3 Chicago Floating Shelf 10" Assembly Instructions Important note: please remove Bracket “B” on back edge of shelf first. Place mounting bracket (B) against the wall at the desired location with the arrow pointing up on the. Use a level on top of bracket to insure bracket is level, then, mark each hole with a pencil.
- Page 4 Slide shelf (A) onto the mounting bracket (B) by aligning the two holes on shelf (A) to the poles on bracket (B), making sure the two small holes are pointing down on the bottom of shelf (A). Figure 3 Insert the two long screws (E) with a screwdriver to secure shelf (A) to bracket (B).
- Page 5 90 days of your receipt, we are under no obligation to provide parts or replacement merchandise. Please contact Southern Enterprises at 800-633-5096 or in Dallas 972-869-0111/ 9am – 4pm Mon-Fri Central time if you have product issues or email us at service@seidal.com. Please ask for customer service representative for issues involving damages or replacement parts.
- Page 6 CAUTION Max shelf load capacity is achieved by mounting screw into studs or cement walls. If mounting to sheet rock (cavity wall) it is advisable to mount at least 1 screw (without anchor) directly to a wall stud. However do not leave either end of mounting bracket unsupported by at least one anchor.
