IMPORTANT: THIS DEVICE MUST BE PROFESSIONALLY INSTALLED
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION
The Miller Edge RBand Monitored Gate Edge Transmitter/Receiver system is intended to provide a wireless connection between a
monitored sensing edge and a motorized operator that controls the associated gate. The RBand Receiver is compatible with up to 3
RBand Transmitters on 2 channels; 6 total transmitters. RBand meets the 2016 UL 325 requirements for monitored devices and has
been certified as a UL 325 Recognized Component. It is designed for use with operators that comply with 2016 UL 325 using a Miller
Edge 10K Sensing Edge.

1. PARTS LIST

RB-G-K10 Contents:
•
RBand Gate Edge Transmitter/Receiver System:
•
RBand Edge Transmitter (RB-TX10)
•
RBand Gate Edge Receiver (RB-G-RX10)
•
Receiver antenna
•
(2) 3.6V AA lithium batteries*
•
(4) #6 pan head transmitter mounting screws
RB-TX10 Contents:
•
RBand Gate Edge Transmitter (RB-TX10)
•
(2) 3.6V AA lithium batteries*
•
(4) #6 pan head transmitter mounting screws
*Replacement 3.6V AA lithium batteries can be purchased
at your local electronics store or via Miller Edge.

2. RECEIVER: INSTALLATION

1.
Remove the operator cover and turn off the power to the gate operator.
2.
Determine where to place the external mounted antenna so it is in line of sight with the Transmitter(s) for the entire range of
travel [IMAGE 1]. Prepare the antenna coax as necessary.
3.
Remove the Receiver cover and mount the base inside the operator, positioning it for optimum ease of wiring.
4.
Connect power to the terminals marked 12/24 AC/DC (polarity sensitive) on the removable 8-pin connector [IMAGE 2].
WIRING
ANTENNA
RBAND RECEIVER
MOUNTED INSIDE OPERATOR
WITH EXTERNAL ANTENNA
www.milleredge.com
OPERATOR

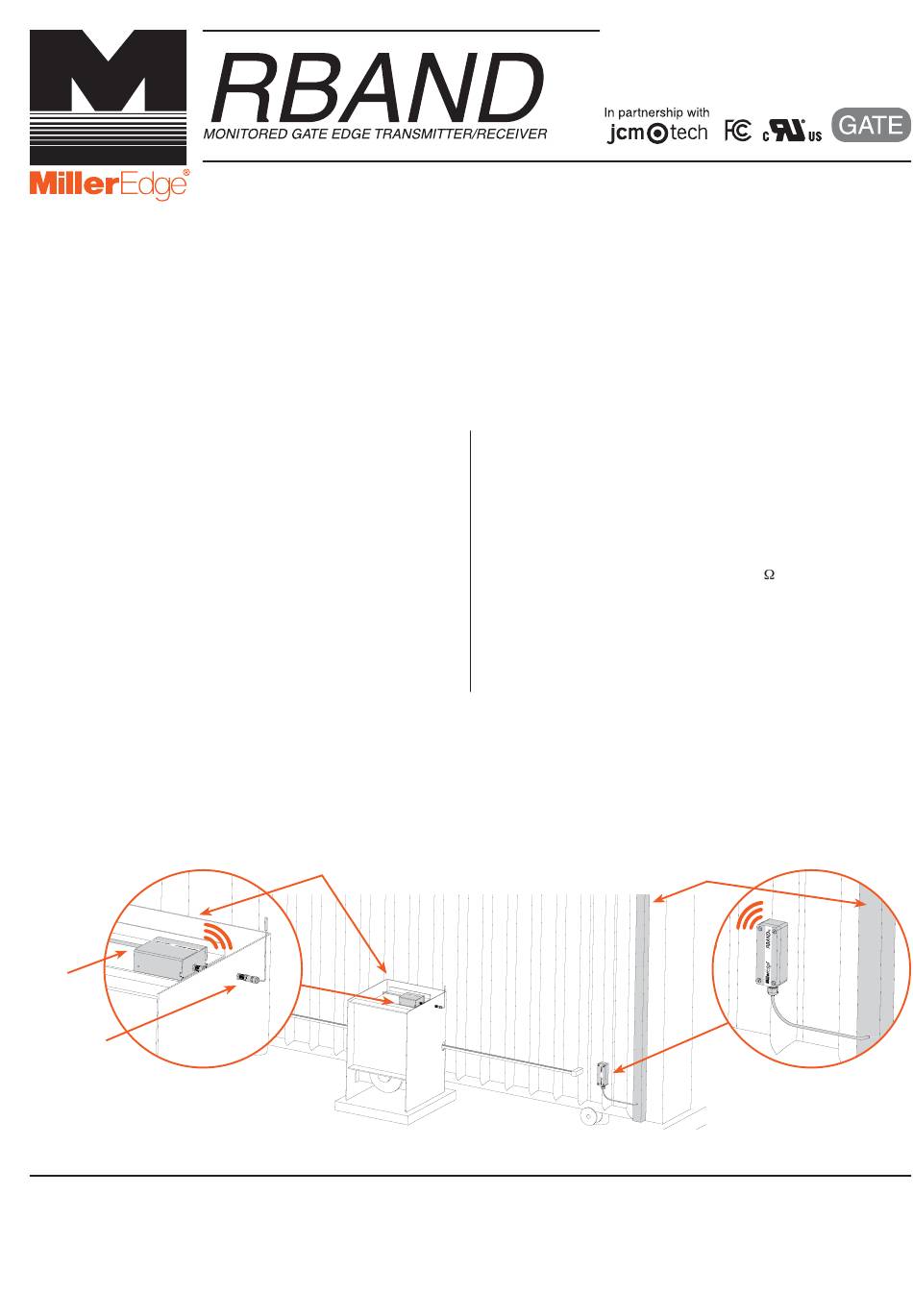

IMAGE 1. RBAND INSTALLATION WITH GATE EDGE
info@milleredge.com
INSTALLATION INSTRUCTIONS
Models: RB-G-K10, RB-TX10
Required:
•
1/8" flat blade screwdriver
•
1/4" flat blade screwdriver
•
Miller Edge 10K (T2/blue band) Sensing Edge
•
Coaxial cable for exterior mounted antenna
•
Coaxial bulkhead adapter, female/female
Recommended:
•
Multi-meter capable of reading 10K
•
Mounting screws as required for receiver
SENSING EDGE
800-220-3343
RBAND TRANSMITTER
MOUNTED NEAR SENSING
EDGE
RB-G-K10_Inst_20190301
1/5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RBand RB-TX10 and is the answer not in the manual?

Questions and answers

Related Manuals for Miller Edge RBand RB-TX10

Summary of Contents for Miller Edge RBand RB-TX10

  • Page 1 READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION The Miller Edge RBand Monitored Gate Edge Transmitter/Receiver system is intended to provide a wireless connection between a monitored sensing edge and a motorized operator that controls the associated gate. The RBand Receiver is compatible with up to 3 RBand Transmitters on 2 channels;...
  • Page 2 Determine which monitored interface your operator uses: • 10K Operator [Table 1]: Connect the COM (C1/C2) and the correct output connections (BS1/BS2) to your operator. Set DIP switch 4 to off. • N.C. Operator [Table 2]: Connect the COM (C1/C2) and the correct output connections (CS1/CS2) to your operator. The A Test terminals must be used for operators requiring N.C.
  • Page 3 IMAGE 2. RBAND GATE EDGE RECEIVER PCB & CONNECTIONS COAXIAL CABLE PROVIDED BY INSTALLER F-CONNECTOR COAX EXTENDER ANTENNA LED INDICATORS R1 & R2 RELAY LEDS ANTENNA • On: No transmitters programmed CHECK LED TERMINAL RELAY PROGRAM • Off: Programmed & BUTTON BLOCK LEDS BUTTON...
  • Page 4 PROGRAM BUTTON (2) 3.6V AA LITHIUM REMOVABLE BATTERIES SENSING EDGE TERMINAL BLOCK GREEN LED (4) CORNER ALIGNMENT PIN MOUNTING HOLES ALIGNMENT PIN STRAIN RELIEF FITTING IMAGE 3. RBAND EDGE TRANSMITTER PCB & CONNECTIONS 3. PROGRAM MODE For best performance, turn on all other wireless devices (e.g. card readers, etc.) prior to starting the programming process. The RBand Receiver will search for the quietest RF channel.
  • Page 5 6. ERASING THE RBAND RECEIVER If you encounter intermittent performance or you have any other programming issues, erase the RBand Receiver and reprogram the Transmitters. The Receiver will search for a clear RF channel. To erase all Transmitters programmed into the Receiver, use a screwdriver to short the two pins marked MR next to the DIP switches [IMAGE 2].
