Miller Edge CPT215 Installation Instructions

Read and understand all instructions before beginning installation. Disconnect power to motor and test upon completion.
Sensing edges should be installed by qualified personnel to ensure the requirements herein have been met. Keep these
instructions with the installation. Always abide by local and national electrical code specifications when wiring accessories to
motor controls.
CPT215 is a UL 325 recognized sensing edge designed for on-site configuration and assembly. Upon contact with an
obstruction, CPT215 signals operator controls to immediately stop and/or reverse motion. With no adhesive required, the
CPT215 end design allows for field length adjustment or to change termination for monitoring compatibility with an operator.
Compatible with most operator brands with electronic controls.
CONTENTS
•
CPT215 Extrusion
•
CPT215 End Kit:
- (1) Wired plug
- (2) Cages
- (2) Caps
- (2) #6 x 1-1/4-in. Phillips flathead stainless steel
screws
- Non-wired plugs:
End Kit, model: CPT215-ENDKIT-T1
o
§ (1) 8.2K terminated plug (green)
§ (1) Non-terminated plug (black)
End Kit, model: CPT215-ENDKIT-T2
o
(1) 10K terminated plug (blue)
§
§ (1) Non-terminated plug (black)
End Kit, model: CPT215-ENDKIT-T3
o
§ (1) Diode capacitor plug (red)
§ (1) Non-terminated plug (black)
End Kit, model: CPT215-ENDKIT-U
o
§ (1) 8.2K terminated plug (green)
§ (1) 10K terminated plug (blue)
§ (1) Diode capacitor plug (red)
§ (1) Non-terminated plug (black)
5-ft. Edge Kit, model: CPT215-EDGE-5-T1T2
o
§ (1) 8.2K terminated plug (green)
§ (1) 10K terminated plug (blue)
§ (1) Non-terminated plug (black)
§ 5-ft. ME123-CA3 mounting channel
4
www.milleredge.com
ASSEMBLE-IN-THE-FIELD SENSING EDGE
Select the required edge configureation
(1) Wired Plug
1
2
3
info@milleredge.com
INSTALLATION INSTRUCTIONS
WARNING
REQUIRED
•
Operator manual for detailed connection instructions
•
Mounting channel: ME123-C, ME123-C1, ME123-C3,
ME123-CA3, ME123-C2175, ME123-C7
•
#2 Phillips screwdriver
•
PVC cutting tool (optional 224-101: Extrusion Cutter)
•
Mounting hardware
- Mounting channel: #6-8 self-drilling screws
- Gate/vertical mounting set screw: #8 x ½-in. lath
screw
SUGGESTED
•
Multimeter capable of reading 10K Ω
•
MET-101: Edge Tester
OPTIONAL
•
Wireless Connections
- Miller Edge wireless edge transmitter/receiver
system
•
Wired Connections
- 18-22 gauge wire
- Junction box(es) and mounting hardware
- Coil cord
- Retracting reel (non-monitored systems only)
- Interface module (consult operator manual for the
required monitoring configuration)
(1) Non-Wired Plug
2
1
(2) Cages

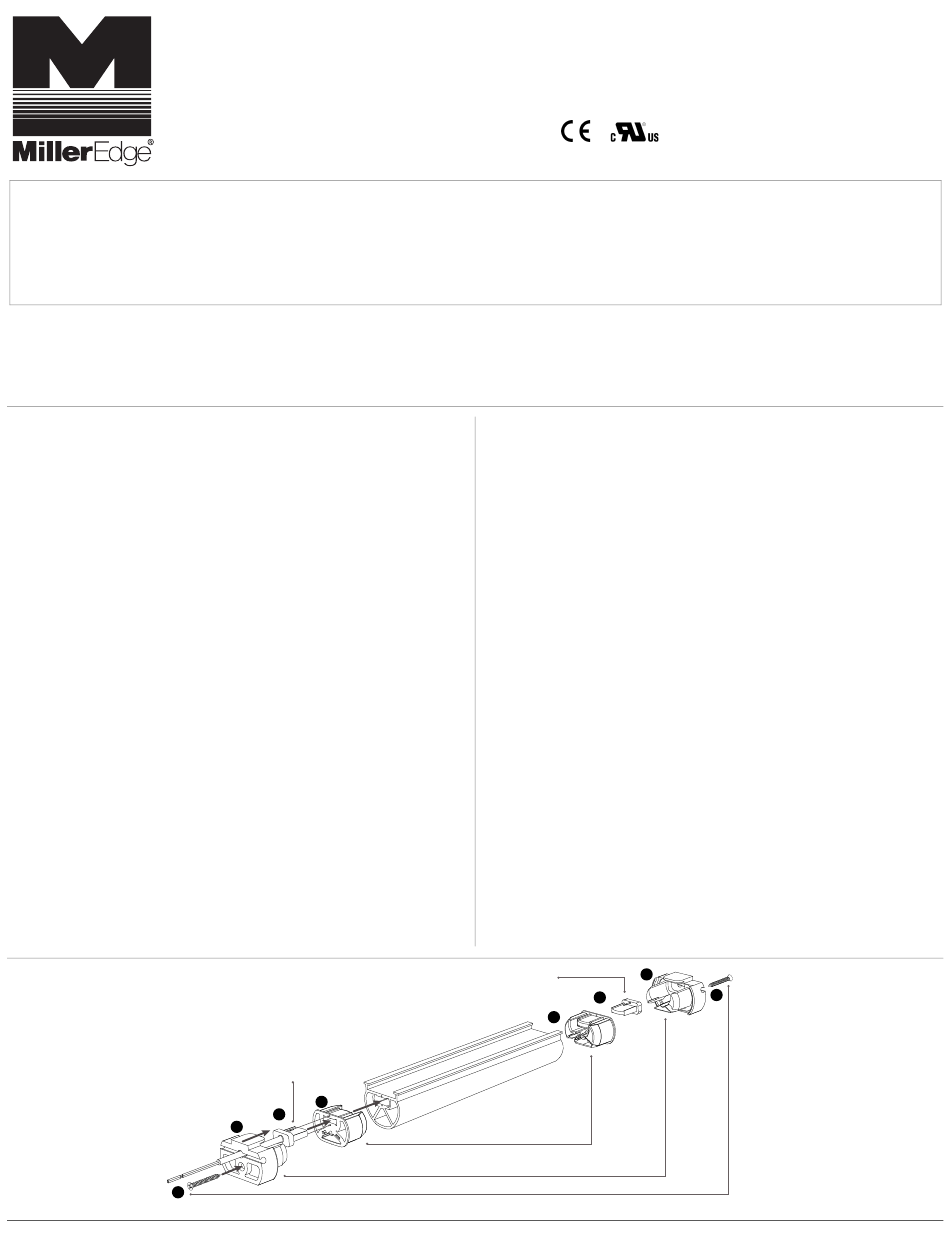

1: CPT215 Assembly
MODEL: CPT215
:
3
4
(2) Caps (2) Screws
800-220-3343
CPT215_INST_20240628
1/5
