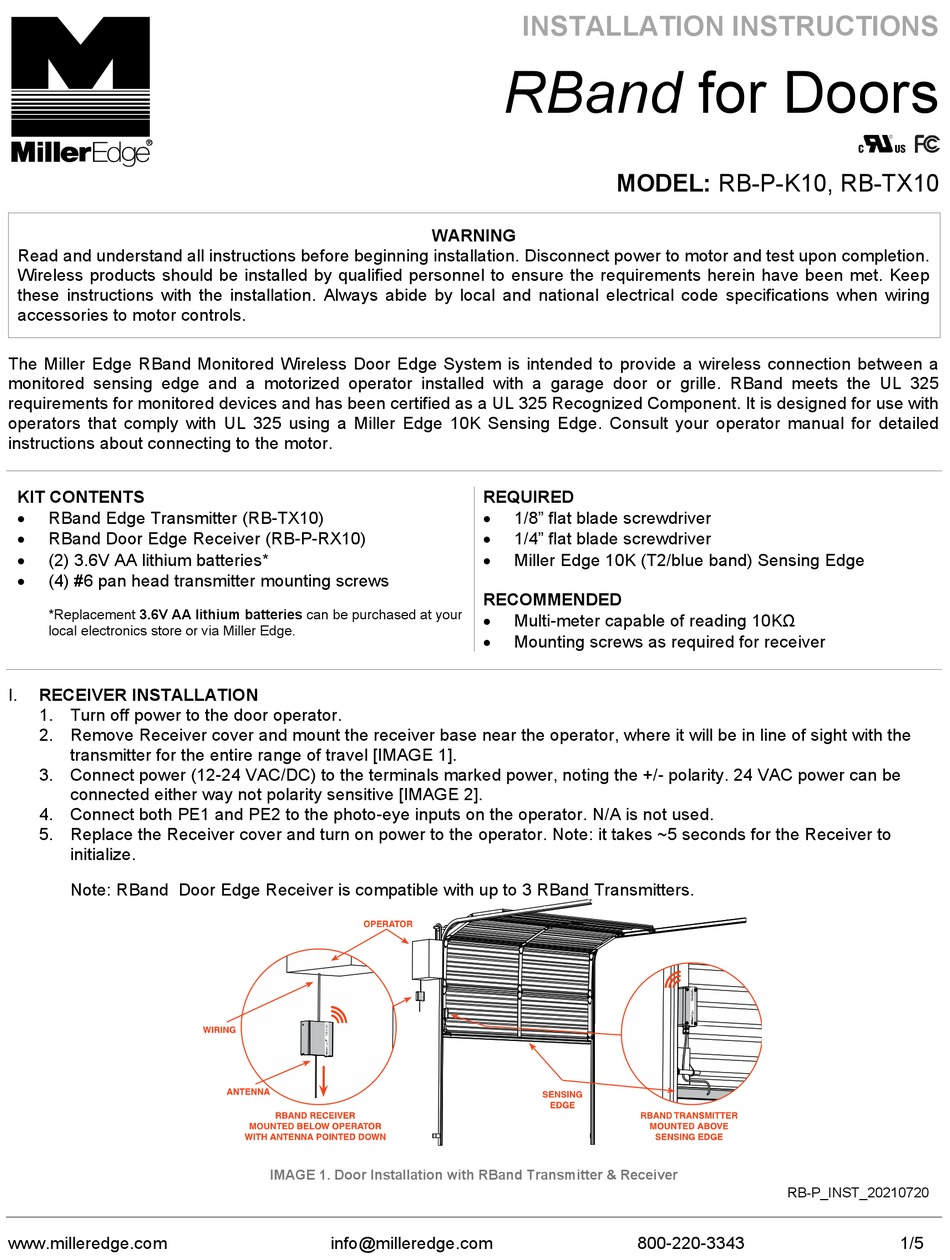

Miller Edge RB-P-K10 Installation Instructions

Read and understand all instructions before beginning installation. Disconnect power to motor and test upon completion.
Wireless products should be installed by qualified personnel to ensure the requirements herein have been met. Keep
these instructions with the installation. Always abide by local and national electrical code specifications when wiring
Accessories to motor controls.
The Miller Edge RBand Monitored Wireless Door Edge System is intended to provide a wireless connection between a
monitored sensing edge and a motorized operator installed with a garage door or grille. RBand meets the UL 325
requirements for monitored devices and has been certified as a UL 325 Recognized Component. It is designed for use with
operators that comply with UL 325 using a Miller Edge 10K Sensing Edge. Consult your operator manual for detailed
instructions about connecting to the motor.
KIT CONTENTS


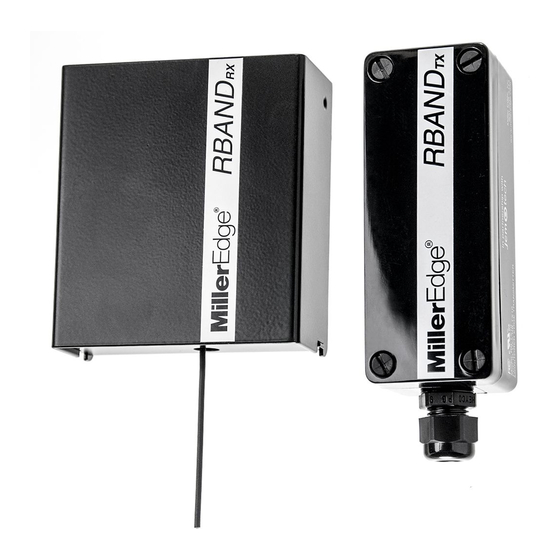

RBand Edge Transmitter (RB-TX10)

RBand Door Edge Receiver (RB-P-RX10)

(2) 3.6V AA lithium batteries*

(4) #6 pan head transmitter mounting screws
*Replacement 3.6V AA lithium batteries can be purchased at your
local electronics store or via Miller Edge.
I.

RECEIVER INSTALLATION

1. Turn off power to the door operator.
2. Remove Receiver cover and mount the receiver base near the operator, where it will be in line of sight with the
transmitter for the entire range of travel [IMAGE 1].
3. Connect power (12-24 VAC/DC) to the terminals marked power, noting the +/- polarity. 24 VAC power can be
connected either way not polarity sensitive [IMAGE 2].
4. Connect both PE1 and PE2 to the photo-eye inputs on the operator. N/A is not used.
5. Replace the Receiver cover and turn on power to the operator. Note: it takes ~5 seconds for the Receiver to
initialize.
Note: RBand Door Edge Receiver is compatible with up to 3 RBand Transmitters.
www.milleredge.com
WARNING
IMAGE 1. Door Installation with RBand Transmitter & Receiver
info@milleredge.com
INSTALLATION INSTRUCTIONS
RBand for Doors
MODEL: RB-P-K10, RB-TX10
REQUIRED

1/8" flat blade screwdriver

1/4" flat blade screwdriver

Miller Edge 10K (T2/blue band) Sensing Edge
RECOMMENDED

Multi-meter capable of reading 10KΩ

Mounting screws as required for receiver
800-220-3343
RB-P_INST_20210720
1/5
