READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE BEGINNING INSTALLATION
The Monitored Edge Link II (MEL-II) transmitter/receiver system is intended to provide a wireless connection
between a monitored safety edge and a motorized operator that controls the associated door. MEL-II meets
the UL 325 requirements for monitored devices and has been certified as a UL 325 Recognized Component. It is
designed for use on operators that comply with UL 325 using a 10K (T2) terminated sensing edge.
Please note: It may be easier to pre-learn the Transmitter to the Receiver prior to physically mounting the devices.
A Miller Edge 10K Sensing Edge is not needed for the learn process.
1.
Apply power to the receiver using a plug-in 12-24V wall transformer.
2.
Insert the two AA batteries into the Transmitter battery holder.
3.
Press CH1 learn button until the yellow status LED starts to blink rapidly (this is now learn mode).
4.
Within 60 seconds, press the test button on the Transmitter and observe on the Receiver that the CH1 and
status LEDs are blinking rapidly and alternately. Release Transmitter test button.
5.
The CH1 red LED will continue to blink rapidly until the 10K sensing edge is connected to the Transmitter.
Parts List
1-
Kit Contents:
•
MEL-II-TX10 Transmitter unit
•
MEL-II-RX10 Receiver unit
•
Receiver antenna
•
(2) AA lithium batteries
•
(4) #6 pan head Transmitter mounting screws
MEL-II-RX10
MEL-II-TX10
-----------P.O. Box 159 • West Grove, PA 19390 • 800-220-3343 • 610-869-4422 • Fax: 610-869-4423 • www.milleredge.com
6809 South Harl Avenue, Suite A • Tempe, AZ 85283 • 800-887-3343 • 480-755-3565 • Fax: 480-755-3558
INSTALLATION INSTRUCTIONS
IMPORTANT:

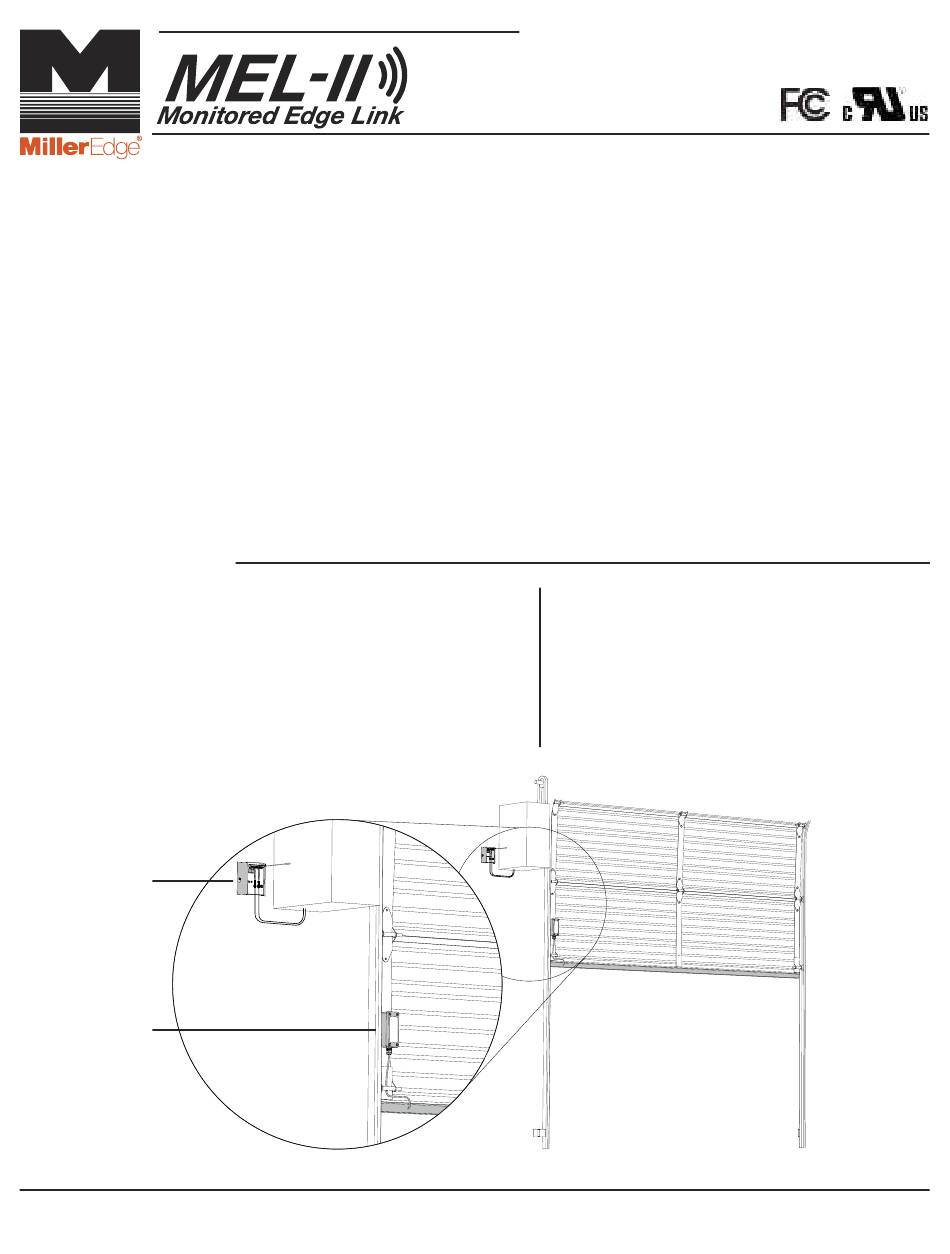

MEL-II-K10 COMMERCIAL DOOR INSTALLATION
Required:
•
1/8" flat blade screwdriver
•
1/4" flat blade screwdriver
•
Miller Edge 10K (T2/blue band) Sensing Edge
Recommended:
•
VOM for test purposes
•
Mounting screws as required for Receiver
Model: MEL-II-K10
MEL-II-K10_Inst_20170323
