SensingEdge
About the MT22...
The MT22 pressure sensitive electric edge is custom
manufactured to your exact specifications for length,
width, height and sensitivity. When touched lightly or at
an angle, the MT22 will send an immediate electrical sig-
nal to your controls to stop, and/or reverse operations.
It is completely flexible and will contour curved surfaces.
In addition to being a sensing device, the MT22 also acts
as a weatherstrip on doors to help save energy. Contact
us with your specifications and we will design the best
SensingEdge for your application.
OPTIONS:
• 4 wire N.O. configuration
• Pneumatic (MTP22) Air-Wave (MTAW22)
• 4-wire control panel (MFSC-100)
• Yellow/Black striped outer cover material
• 4-wire intrinsically-safe control panel (FSIS-25-4)
• XR-5 chemically resistant cover for protection against:
kerosene
50% phosphoric acid
diesel fuel
50% hydrochloric acid
JP-4 jet fuel
50% acetic acid
salt water
SAE-30 oil
TECHNICAL SPECIFICATIONS:
Color:
Black, Yellow, Gray, White, Y/B Stripe
Length:
Lead Wire:
Sensitivity:
Electrical
Diagram:
Electrical
Maximum:
Mechanical Diagram:
Contact Element:
Materials:
Temperature Range:
Wire Outlet
Location:
P.O. Box 159 • West Grove, PA 19390 • (610)869-4422 • Fax: (610)869-4423 • 800-220-3343
For more information, please visit www.devancocanada.com
or call toll free at 855-931-3334
per specification to nearest 1/4
SJTO, 18 gauge, 2ft. length
or 22 gauge universal
nominal 4-7 lbf
2 wire N.O. configuration
24 volt AC or DC,1/2 amp
See drawings on reverse side
Alumaglas®
Heavy Duty Reinforced PVC
-30
F to +155
F
o
o
Right side, Left side or End
www.milleredge.com
Model # MT22
FUNCTIONAL BENEFITS:
• Touch Sensitive signalling
• Small profile
• Easy to Install
• Stock sizes available for same day
shipment
• Mounts horizontally
• ANSI/UL325 Recognized Component
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Miller Edge SensingEdge MT22
Summary of Contents for Miller Edge SensingEdge MT22

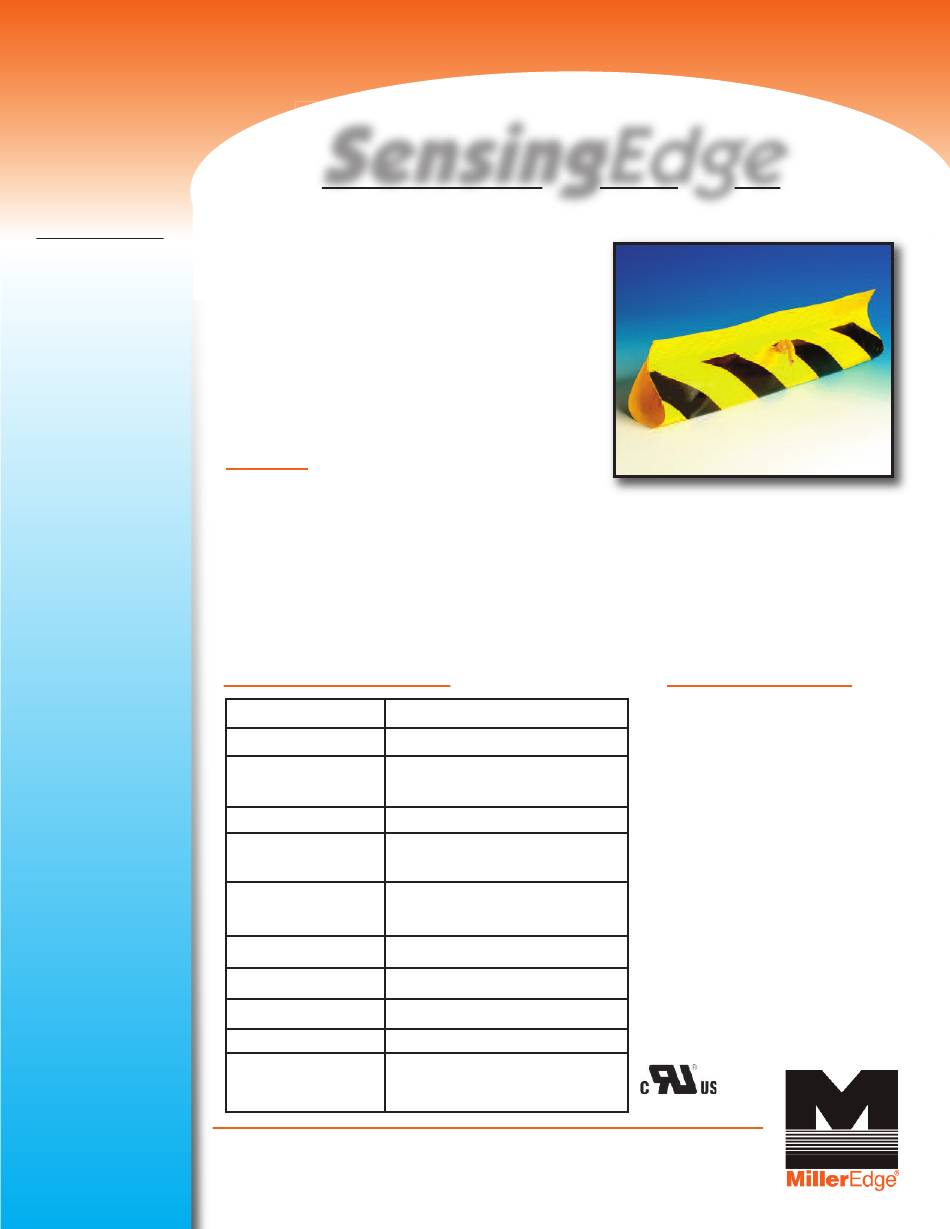

- Page 1 Model # MT22 SensingEdge Applications About the MT22... The MT22 pressure sensitive electric edge is custom • Rolling manufactured to your exact specifications for length, Steel width, height and sensitivity. When touched lightly or at Doors an angle, the MT22 will send an immediate electrical sig- nal to your controls to stop, and/or reverse operations.
