Miller Edge RBand RB-P-K10C Installation Instructions

Read and understand all instructions before beginning installation. Disconnect power to motor and test upon completion. Sensing
edges and wireless products should be installed by qualified personnel to ensure the requirements herein have been met. Keep these
instructions with the installation. Always abide by local and national electrical code specifications when wiring accessories to motor
controls.
The Miller Edge RBand Monitored Wireless Sensing Edge System is intended to provide a wireless connection between a monitored
sensing edge and a motorized operator. RBand meets the UL 325 requirements for monitored devices and has been certified as a UL
325 Recognized Component. It is designed for use with operators that comply with UL 325 using a Miller Edge 10K Sensing Edge.
Consult your operator manual for detailed instructions about connecting to the motor.
KIT CONTENTS
•
(1) RB-P-RX10C: RBand Edge Receiver
•
(1) RB-TX10C: RBand Edge Transmitter
•
(2) 3.6V AA lithium batteries*
•
(4) #6 pan head transmitter mounting screws
*REPLACEMENT BATTERIES: 3.6V AA lithium
batteries can be purchased at an electronics
store (ER14505 or equivalent) or from Miller Edge
(226-9313). Standard 1.5V AA batteries are not
compatible with RBand.
I. RECEIVER INSTALLTION
1. Turn off power to the operator.
2. Remove Receiver cover and mount the receiver base near the operator, where it will be in line of sight with the
transmitter for the entire range of travel
3. Connect power (12-24 VAC/DC) to the terminals marked power, noting the +/- polarity. 24 VAC power can be
connected either way not polarity sensitive
4. Connect both PE1 and PE2 to the photo-eye inputs on the operator. N/A is not used.
5. Replace the Receiver cover and turn on power to the operator. Note: it takes ~5 seconds for the Receiver to
initialize.
Note: RBand Sensing Edge Receiver is compatible with up to 3 RBand Transmitters.
www.milleredge.com
MODELS: RB-P-K10C, RB-TX10C
Use with: 10K/T2 Sensing Edge, Output: Pulsed, N.O.
WARNING
[IMAGE 1].
[IMAGE

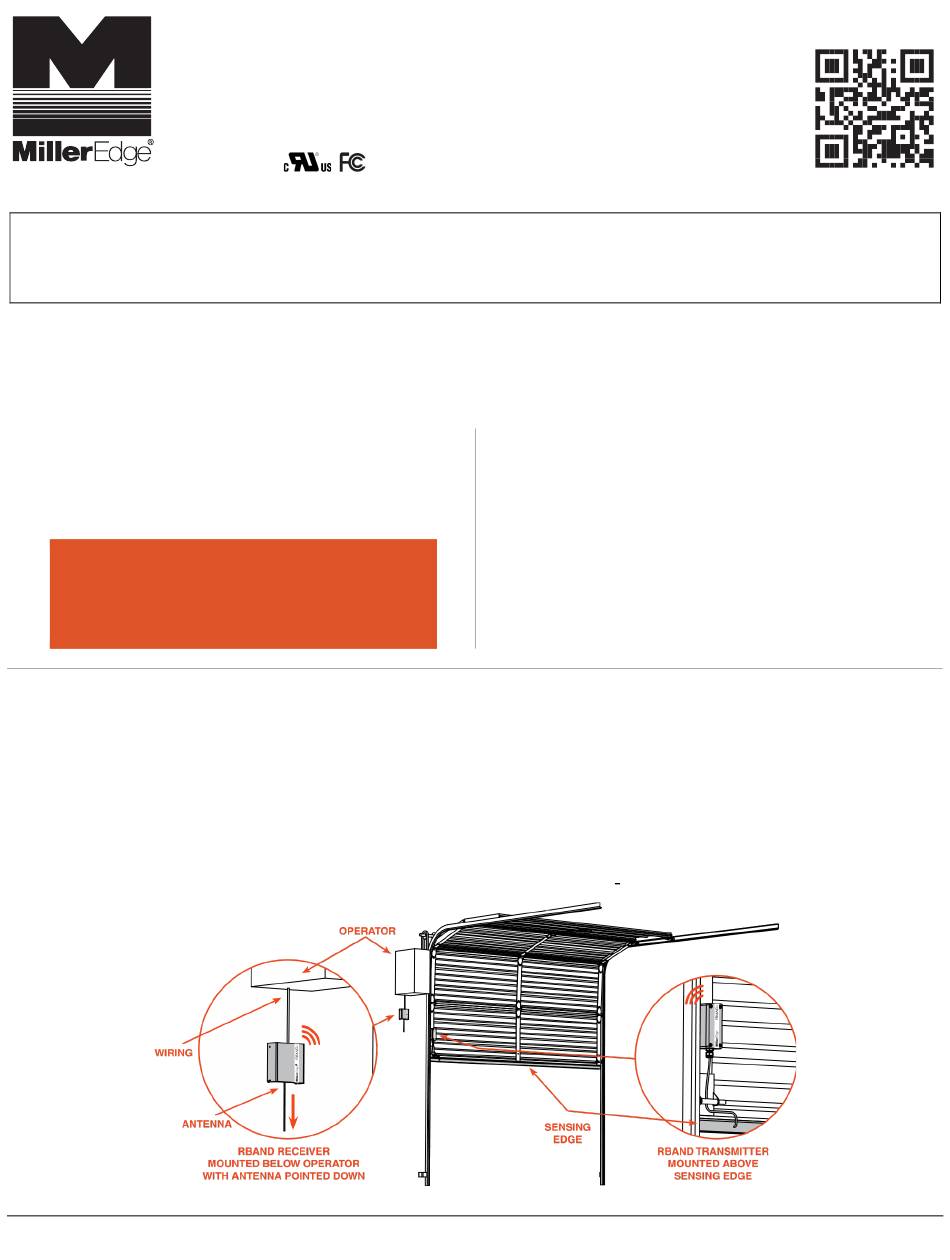

IMAGE 1. Door Installation with RBand Transmitter & Receiver
