Hardware Setup

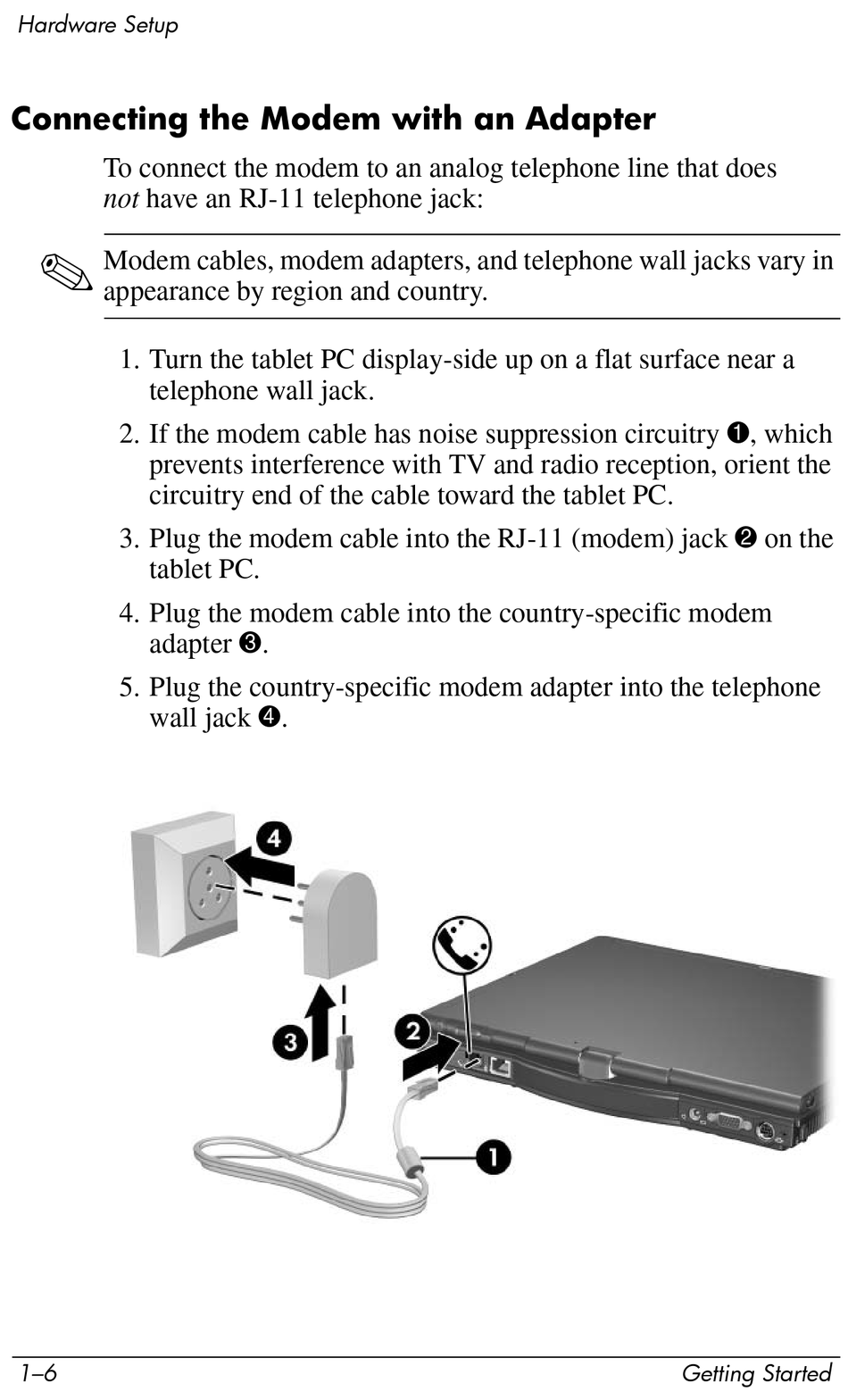

Connecting the Modem with an Adapter

To connect the modem to an analog telephone line that does
not have an RJ-11 telephone jack:
✎
Modem cables, modem adapters, and telephone wall jacks vary in
appearance by region and country.
1. Turn the tablet PC display-side up on a flat surface near a
telephone wall jack.
2. If the modem cable has noise suppression circuitry 1, which
prevents interference with TV and radio reception, orient the
circuitry end of the cable toward the tablet PC.
3. Plug the modem cable into the RJ-11 (modem) jack 2 on the
tablet PC.
4. Plug the modem cable into the country-specific modem
adapter 3.
5. Plug the country-specific modem adapter into the telephone
wall jack 4.
1–6 Getting Started
