Connecting external audio devices

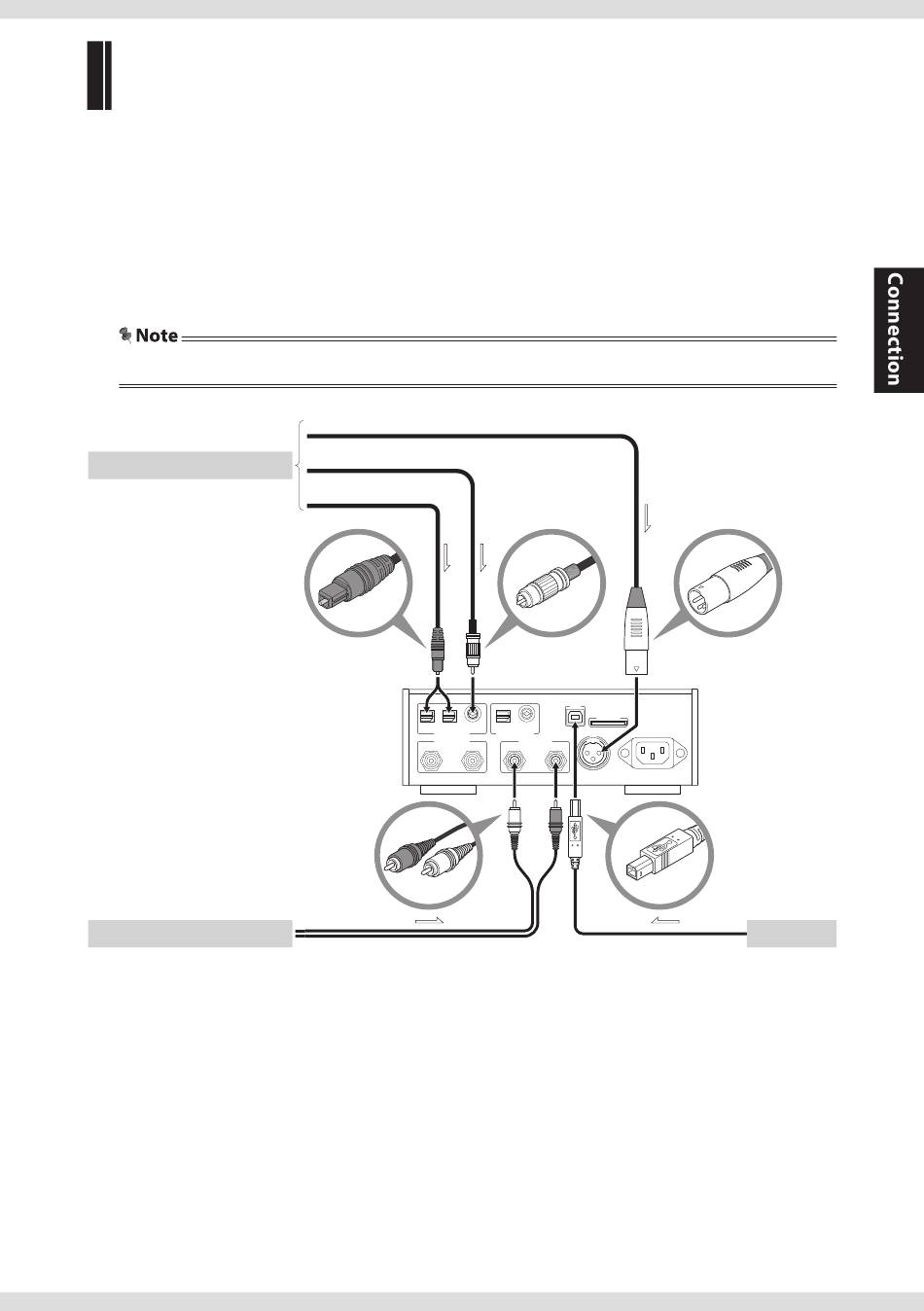

Connect a digital audio device as an input source to the digital audio input terminal, square
optical terminals [OPTICAL 1]/[OPTICAL 2], the coaxial terminal [COAXIAL] or the AES/EBU
terminal [AES/EBU].
Connect an analog audio device as an input source to the analog audio input terminal
[ANALOG IN].
To listen to music files from a computer, connect the computer to the USB terminal [USB].
To change the input source, turn the input sel knob on the front panel.
• Do not connect the power cord until all connections are finished.
To a digital audio device
To an analog audio device, etc.
AES/EBU cable
Coaxial cable
Optical cable
1 2
OPTICAL COAXIAL
DIGITAL IN
ANALOG OUT
RIGHT LEFT
RCA cable
USB
SD CARD
OPTICAL COAXIAL
DIGITAL OUT
IN
ANALOG IN
RIGHT LEFT
AC IN
AES/EBU
USB cable
To a computer
