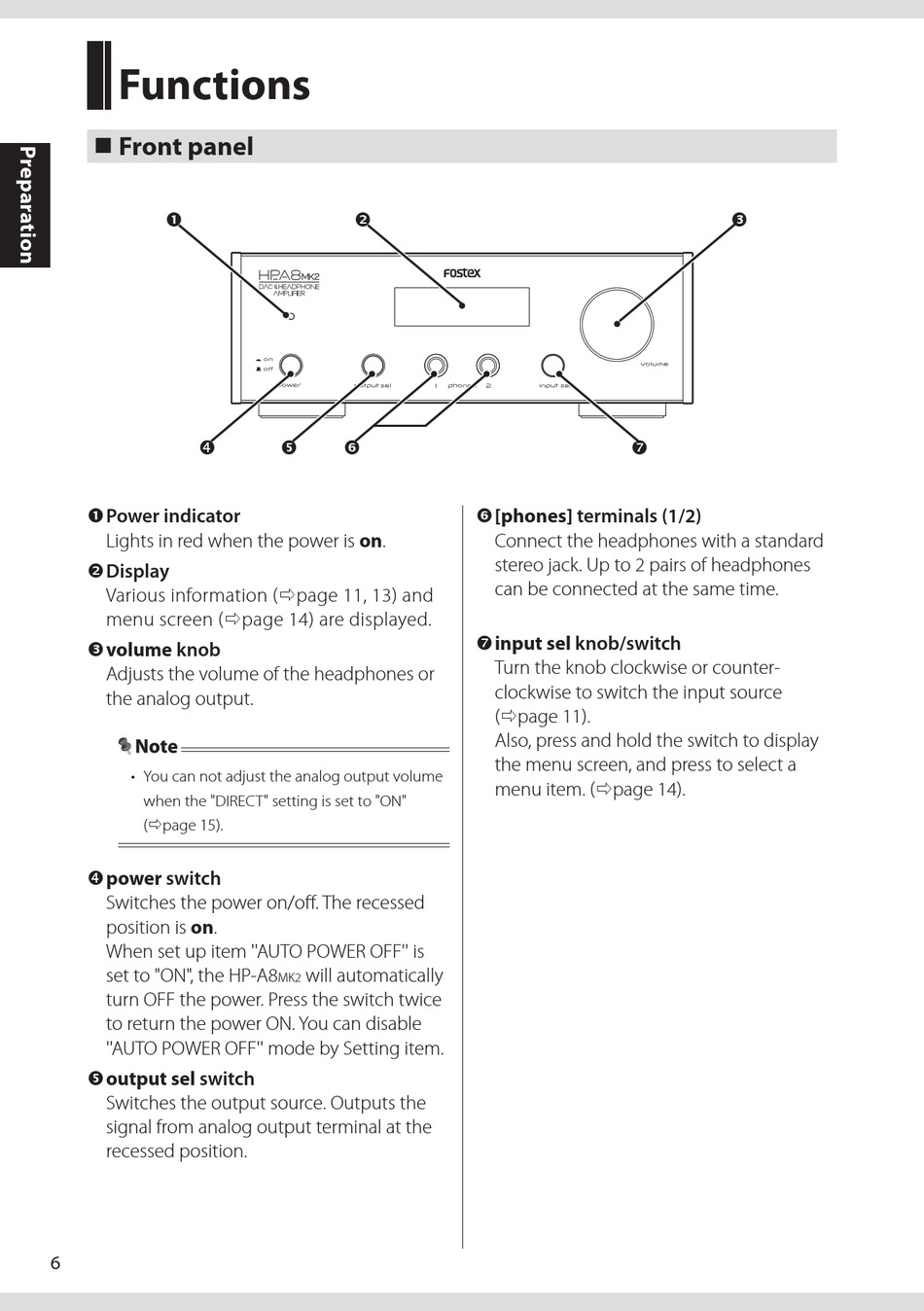

Functions

„ Front panel
„


„ P ower indicator
Lights in red when the power is on.
„ D isplay
Various information (page 11, 13) and
menu screen (page 14) are displayed.
„ v olume knob
Adjusts the volume of the headphones or
the analog output.
• You can not adjust the analog output volume
when the "DIRECT" setting is set to "ON"
(page 15).
„ p ower switch
Switches the power on/off. The recessed
position is on.
When set up item ''AUTO POWER OFF'' is
set to "ON", the HP-A8
turn OFF the power. Press the switch twice
to return the power ON. You can disable
''AUTO POWER OFF'' mode by Setting item.
 output sel switch
Switches the output source. Outputs the
signal from analog output terminal at the
recessed position.
6

 
will automatically
MK2

„ [ phones] terminals (1/2)
Connect the headphones with a standard
stereo jack. Up to 2 pairs of headphones
can be connected at the same time.
 input sel knob/switch
Turn the knob clockwise or counter-
clockwise to switch the input source
(page 11).
Also, press and hold the switch to display
the menu screen, and press to select a
menu item. (page 14).

