Rear Panel - Fostex HP-A8MK2 Owner's Manual

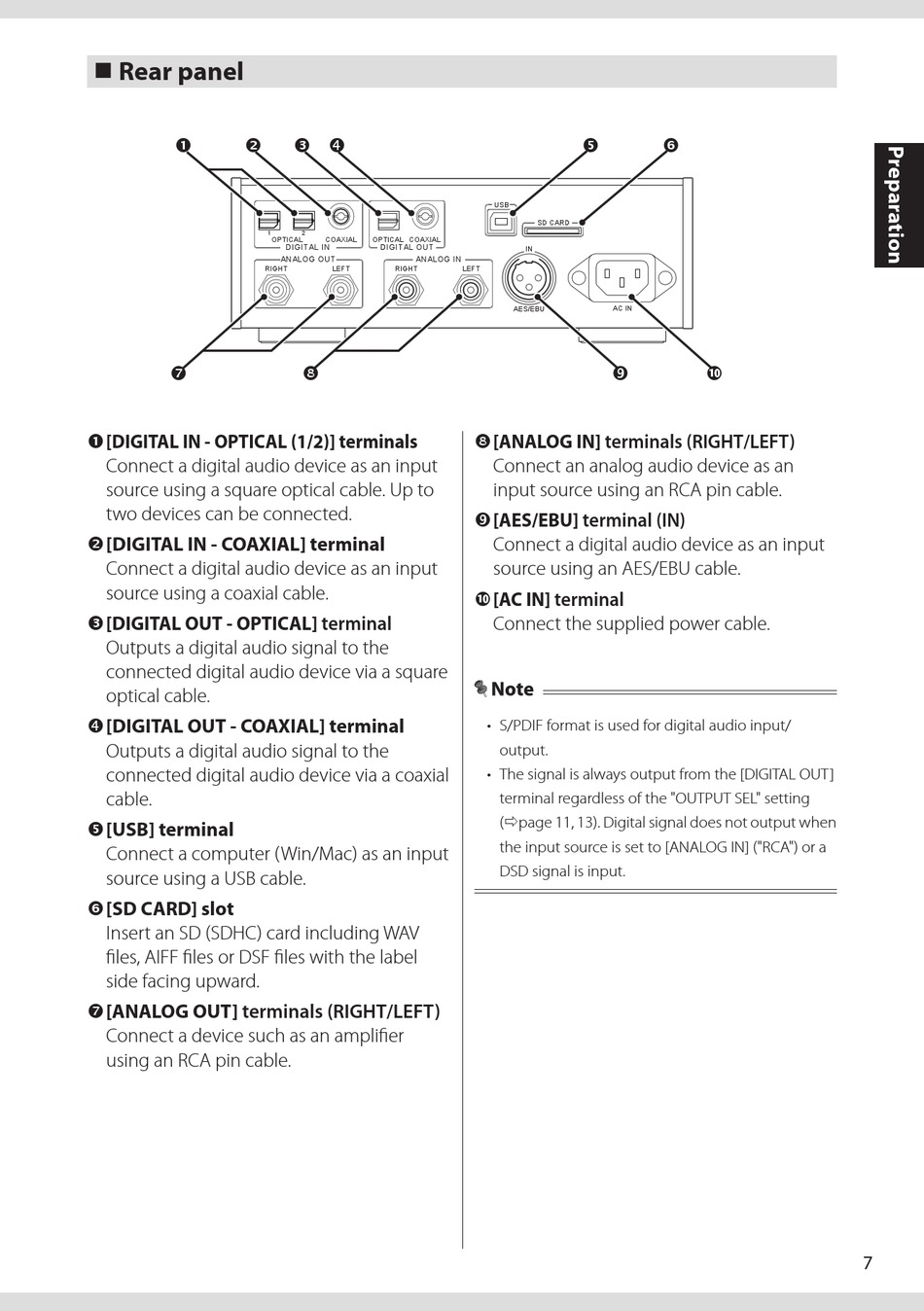

„ Rear panel
„
 

„ [ DIGITAL IN - OPTICAL (1/2)] terminals
Connect a digital audio device as an input
source using a square optical cable. Up to
two devices can be connected.
„ [ DIGITAL IN - COAXIAL] terminal
Connect a digital audio device as an input
source using a coaxial cable.
„ [ DIGITAL OUT - OPTICAL] terminal
Outputs a digital audio signal to the
connected digital audio device via a square
optical cable.
„ [ DIGITAL OUT - COAXIAL] terminal
Outputs a digital audio signal to the
connected digital audio device via a coaxial
cable.
„ [ USB] terminal
Connect a computer (Win/Mac) as an input
source using a USB cable.
„ [ SD CARD] slot
Insert an SD (SDHC) card including WAV
files, AIFF files or DSF files with the label
side facing upward.
„ [ ANALOG OUT] terminals (RIGHT/LEFT)
Connect a device such as an amplifier
using an RCA pin cable.
 
1 2
OPTICAL COAXIAL OPTICAL COAXIAL
DIGITAL IN DIGITAL OUT
ANALOG OUT ANALOG IN
RIGHT LEFT RIGHT


USB
SD CARD
IN
LEFT
AC IN
AES/EBU

„ [ANALOG IN] terminals (RIGHT/LEFT)
Connect an analog audio device as an
input source using an RCA pin cable.
„ [ AES/EBU] terminal (IN)
Connect a digital audio device as an input
source using an AES/EBU cable.
„ [ AC IN] terminal
Connect the supplied power cable.
• S/PDIF format is used for digital audio input/
output.
• The signal is always output from the [DIGITAL OUT]
terminal regardless of the "OUTPUT SEL" setting
(page 11, 13). Digital signal does not output when
the input source is set to [ANALOG IN] ("RCA") or a
DSD signal is input.


7
